Delivery Date:
03/01/2018
Department Name:

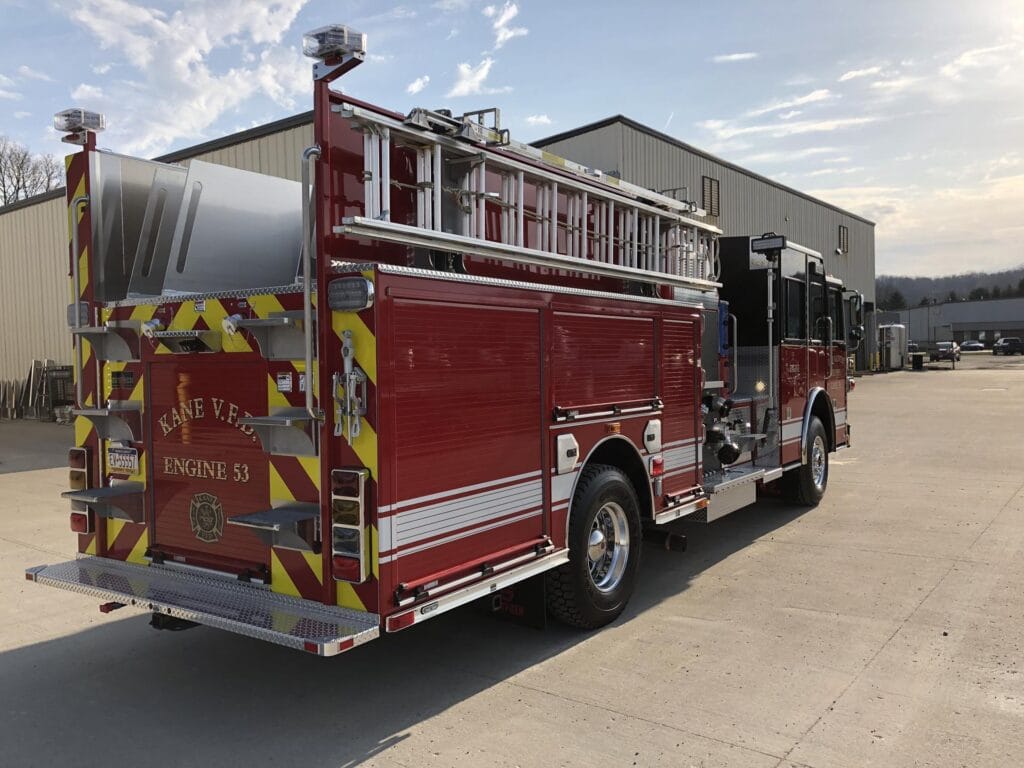

Kane Volunteer Fire Department
Department City / State:
Kane, PA

WHEEL BASE: 201”

TRAVEL HEIGHT: 10′-2″

TRAVEL LENGTH: 31′-5″

CHASSIS:              Sutphen 56”cab with 10” half raised roof

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension: 20,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins ISL 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

PUMP:                  Hale

  • QMAX 1750 GPM Single Stage 6” Suction Single Stage
  • Discharge: (2) 3” Left, 4” Right, 3” Right, 1.5″ Left with 2” Piping at Pump Panel for Running Board Trough, 2.5” Valve, 2.5” Pipe to Left Rear, 2.5” Valve 2.5” Pipe Right Rear, 2.5” Front/Right of Main Hose bed, 3” Deck Gun
  • 1000 Gallon Water Tank

BODY:                   Sutphen

  • 262 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Domex Frame Rails 13” Tall
  • Momentary Switch on Dash for Mechanical Siren, Driver’s Side
  • Diamond plate Rear Exterior Wall of Cab for Lower Paint Line and Scorpion above Paint Brake Line
  • Cab Roof Corner Protectors for the Telescopic Lights
  • Center Console, Top of Engine Enclosure
  • Three Radios
  • Deck Gun to have Full Set of Stacked Tips
  • Covers on Troughs to be Hinged Tread plate
  • Raised Height of Body Side Metal by 5”
  • Narrow Upper Hatch Compartment on Left Body Side
  • Ziamatic Quic-Lift Electric Ladder Rack
  • 12 volt circuit to A1 for Reel Rewind Power
