Delivery Date:
04/01/2018
Department Name:
Jerome Township Fire Department
Department City / State:
Plain City, OH

WHEEL BASE:  196″

TRAVLE HEIGHT: 10′-2″ ±2″

TRAVEL LENGTH: 33′

CHASSIS:              Sutphen 73” Cab with 10” half raised roof

  • Four-Door, Four-Person Cab
  • Front Axle and Suspension: 20,000 Lbs.
  • Rear Axle and Suspension: 27,000 Lbs.
  • Engine: Cummins ISL 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

PUMP:                  Hale

  • XS QMAX 1500 Single Stage
  • Discharge: (2) 2.5” Left, 3” Right, 2.5” Right, 2.5” Left Rear, 2.5” Right Rear, 1.5” Front Bumper, 2” Plumbing, 3” Deck Gun,
  • 1000 Gallon Water Tank

BODY:                   Sutphen

  • Aluminum
  • 9 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Winch Receiver, Front, Sides, Rear,

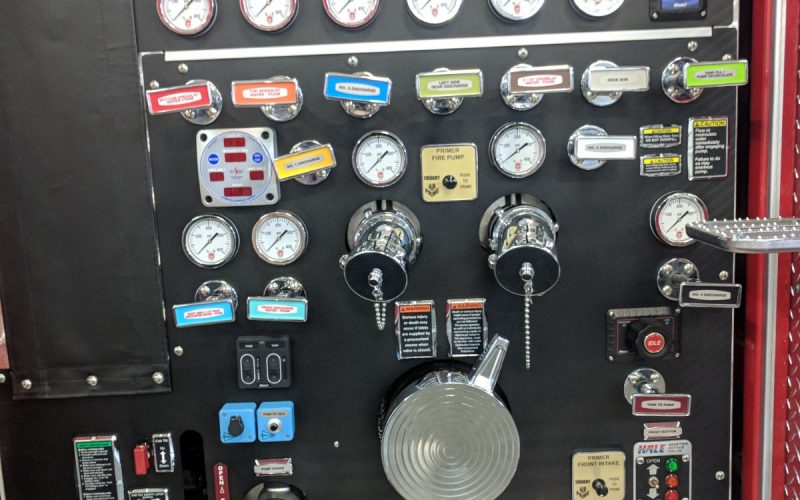

  • Pressure Control, Sentry Pressure Governor/Twister
  • Panel Finish, Black Anodized
  • Hose bed Extension/Traffic Advisor Step
  • (4) Whelen 240V LED Pioneer Flush Mount Scene Lights
