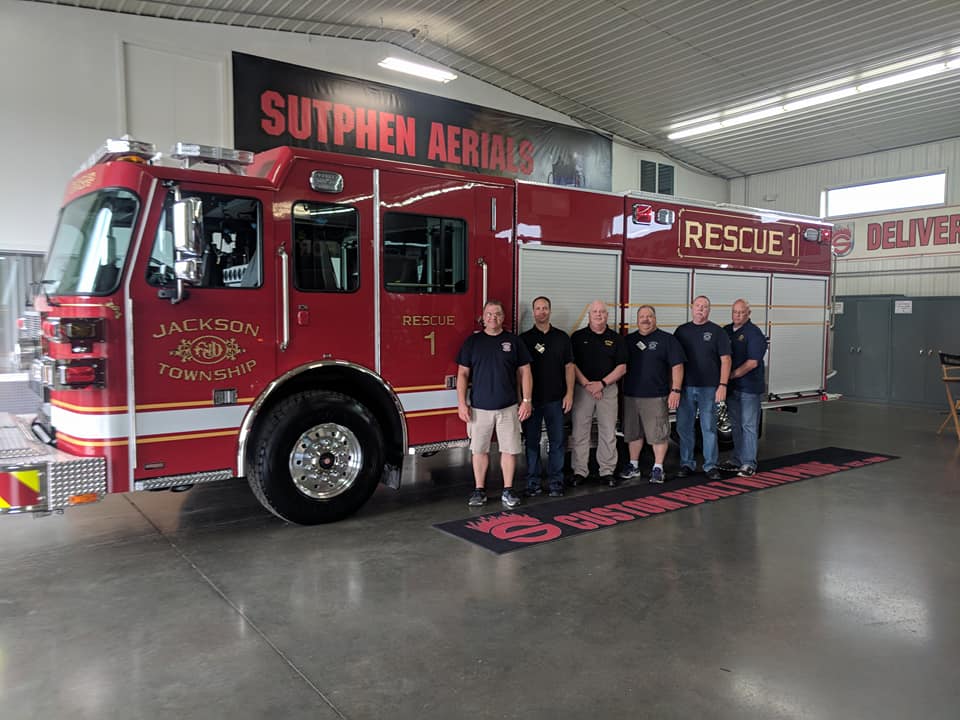

Delivery Date:
05/01/2018
Department Name:
Jackson Township Fire Department
Department City / State:
Massillon, OH

WHEEL BASE: 206”

TRAVEL HEIGHT: 10’ 2” ±2”

TRAVEL LENGTH: 33′ 4”

CHASSIS:              Sutphen 73” Cab with 10” half raised roof

  • Four-Door, Five-Person Cab
  • Front Axle and Suspension: 20,000 Lbs.
  • Rear Axle and Suspension: 27,000 Lbs.
  • Engine: Cummins ISL 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

PUMP:                  Hale

  • QFLO-1250 6” Suction Single Stage
  • Discharge: (2) 2.5” Left, (2) 2.5” Right, 2.5” Valve 2.5” Pipe to Left Rear, 1.5” Front Bumper, 2” Plumbing
  • 750 Gallon Water Tank

BODY:                   Sutphen

  • 9 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Wiring in A1 Compartment For Winch Receivers
  • Intercom, Sigronics 5 Position
  • Roll-Up Door Over Pump Panel
  • Stokes Storage Compartment
  • (2) Whelen FNMINI Light Bar
