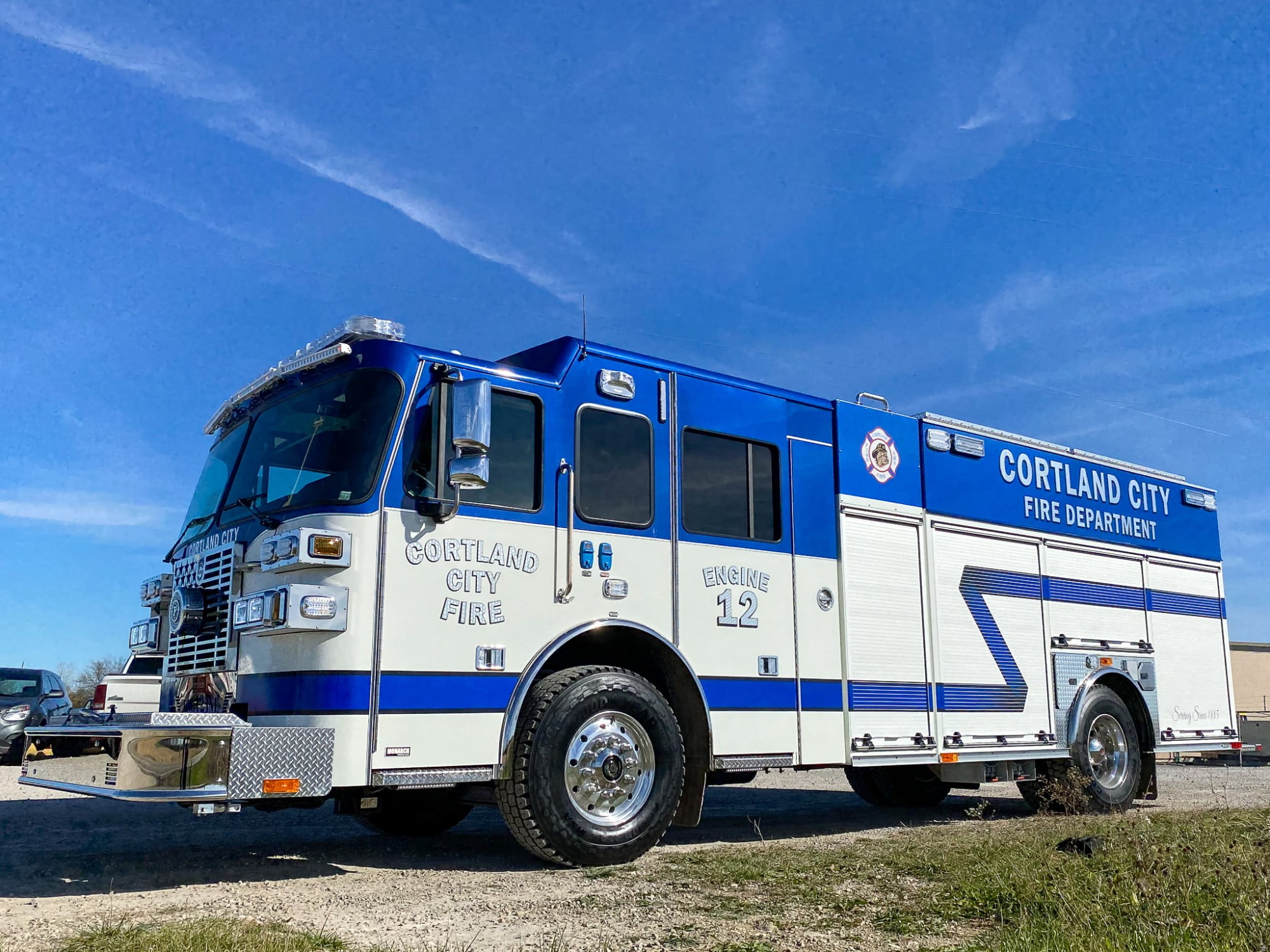

Sutphen Corporation – HS #6910
Dealer – Signal 1 Fire Equipment
WHEELBASE: 227”
TRAVEL HEIGHT: 10’ – 7”
TRAVEL LENGTH: 37’
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 36” Cab w/ Flat Roof
- Two-Door, Two-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 40,000 lbs
- Engine: Cummins X 12, 500HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS4000
PUMP: No Pump, No Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Hinged Compartment Doors
- Body: Walk-In Rescue
ADDITIONAL EQUIPMENT:
- 12” Formed Steel Channel Bumper
- Federal Q2B Siren, Grille Mount
- Generator: Onan Protect 20K-Watt
- IMMI SmartDock Hands-Free SCBA Air Pack Brackets
- Will-Burt Night Scan Powerlite on Telescoping Light Tower
- Hannay Electric Cable and Hose Reel with Power Rewind
- Austin Front Drawer Release Slideout Trays
- Stainless Steel 3,500-lb. Rated Swivel Hoist Rings (4)
- Warn Zeon 8,000-lb. Portable Winch
- OnScene Solutions Surface-Mount Red/White LEDs
