Delivery Date:
08/07/2019
Department Name:
Roswell Fire Department
Department City / State:
Roswell, GA
Truck Type:

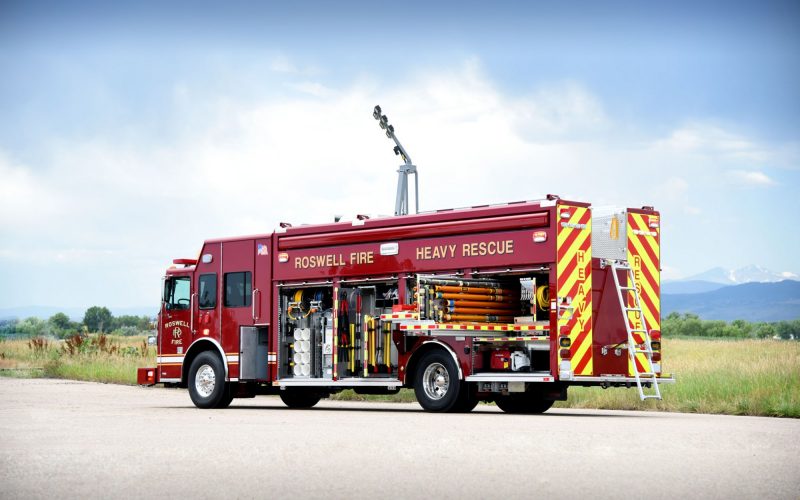

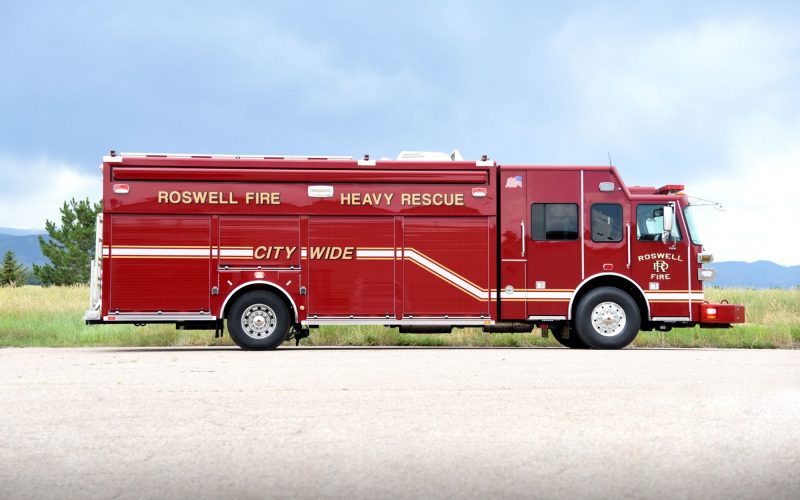

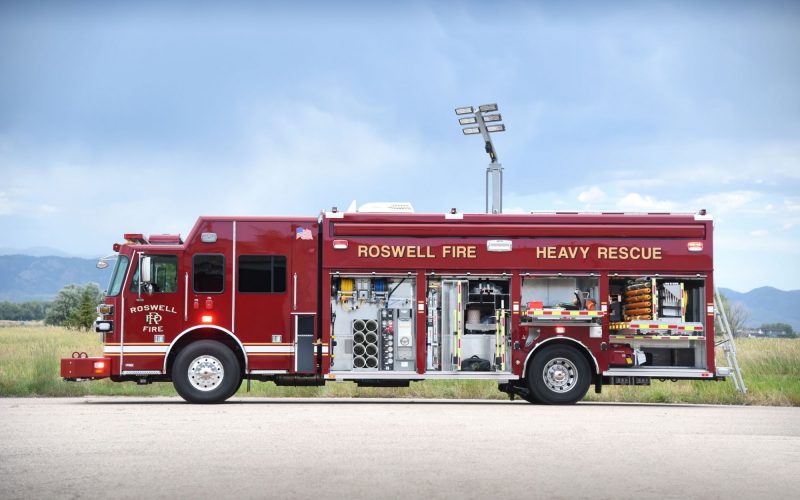

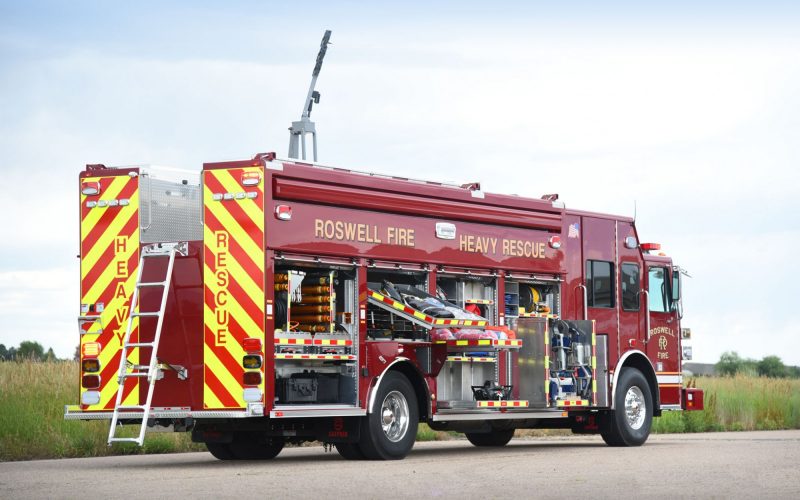

Sutphen Corporation – HS #6269
Dealer – Williams Fire Apparatus
WHEEL BASE: 237”
TRAVEL HEIGHT: 11’ – 7”
TRAVEL LENGTH: 37’ – 4”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 20” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins ISX 12, 425 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS4000
BODY: Sutphen
- Aluminum
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel Bumper Extension
- Voyager 2, Split Screen, Camera System
- Federal Q2B Siren, Flush Grille Mount
- 15,000-Watt Onan Protec PTO Generator System
- Carefree Mirage Lateral Arm Acrylic Patio Awning
- Command Light Knight 2, KL Series Light Tower
- OnScene LED Compartment Lighting
- Whelen LED Warning and Scene Lighting
- OnScene Solutions Aluminum Heavy-Duty Cargo Slides
- Resolve Space Saver Fill Station
- Hannay High-Pressure Air Hose Reel

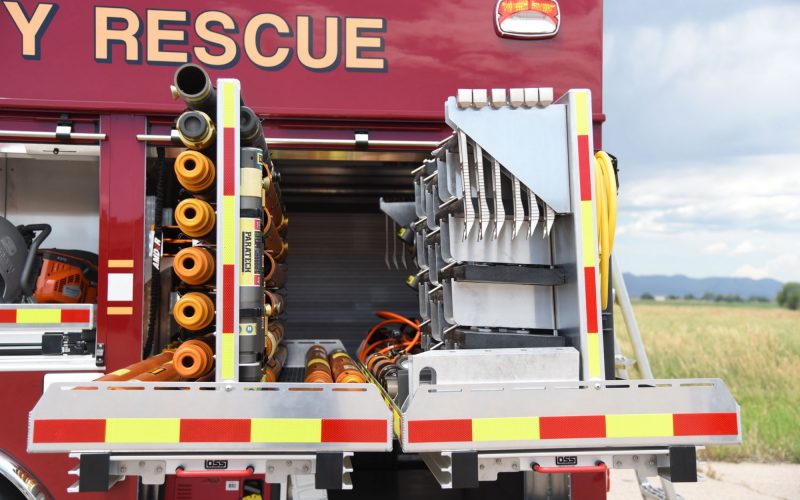

- Custom-Mounted Paratech Struts and Kits
- Cab/Body Walk-Through Connection
- Whelen PCH2, Brow Light 12V
- Whelen Freedom IV 72” 81” LED Light Bar
- Whelen M9 LED Scene Lights
