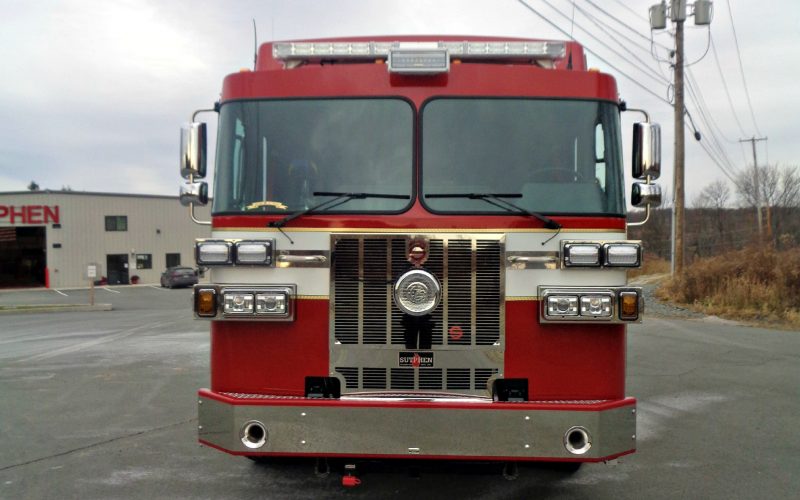

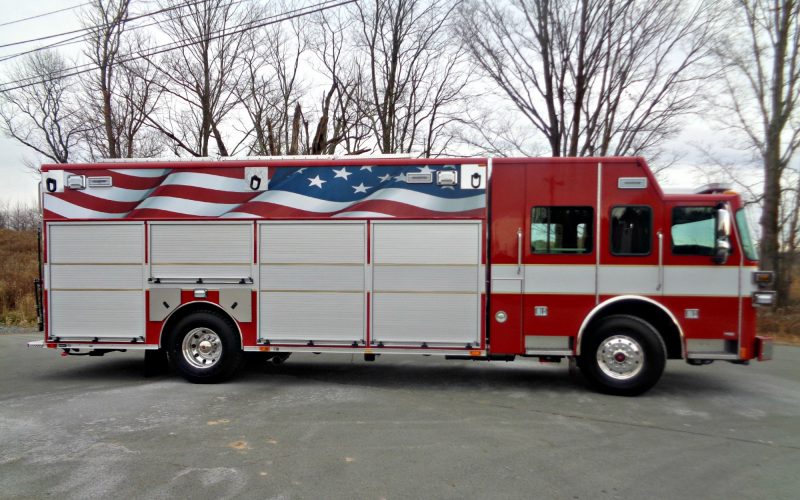

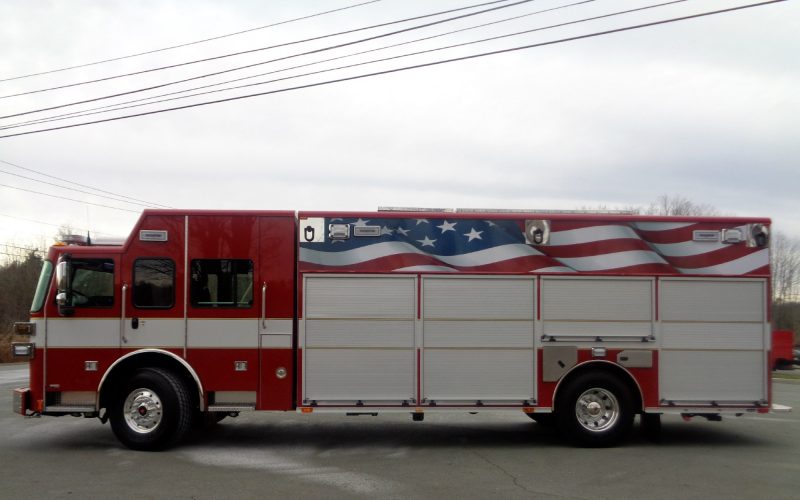

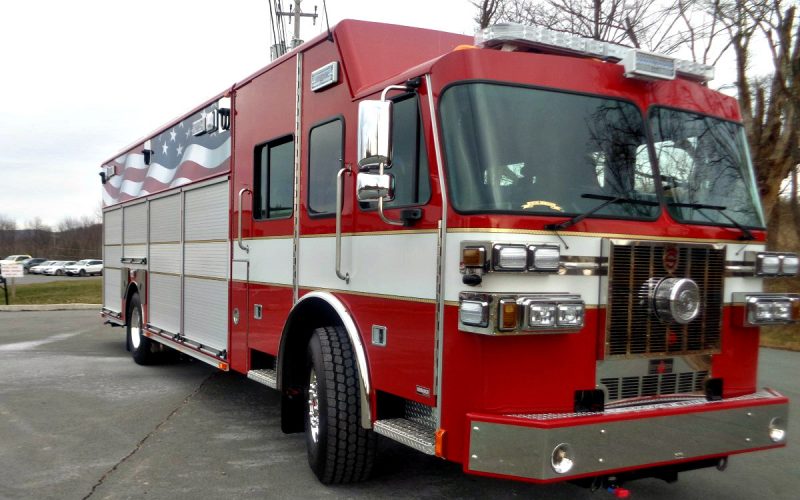

Sutphen Corporation – HS #6415
Dealer – Blaze Emergency Equipment
WHEEL BASE: 235”
TRAVEL HEIGHT: 11’ – 2”
TRAVEL LENGTH: 34’ – 10”
CHASSIS: Sutphen Monarch Heavy Duty-Custom Chassis, 73” Extended Cab with a 20” Raised Roof
- Four-Door, Eight-Person Cab
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen5, EVS3000

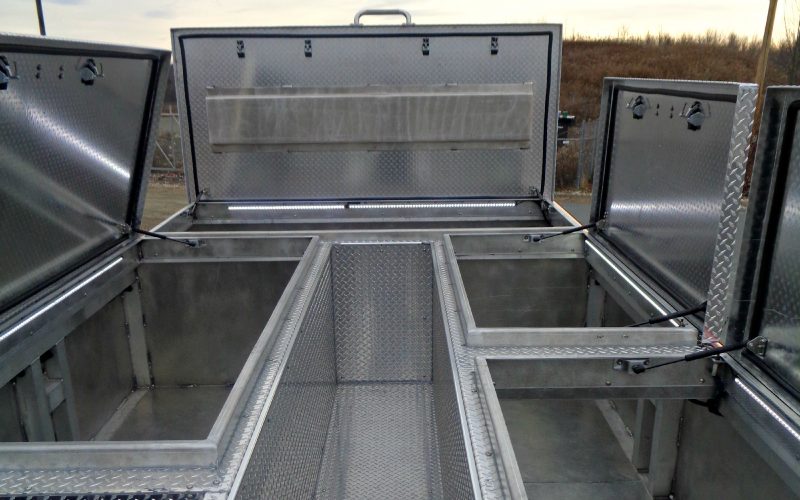

BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-Up Compartment Doors
- Special Ladder Package: 24’ Extension and 14’ Roof Fiber Glass Ground Ladders
ADDITIONAL EQUIPMENT:
- FRC, Inview Trueview, Camera System
- Hannay Electric Cord Reel, 100’ (2)
- Winch Receiver with Power
- 25KW Onan Generator
- Federal Q2B Siren, Grille Mount
- 6” Formed Steel Channel, Bumper Extension
- Sierra Booster Pump
- Command Light – Model KL 415A-FS (2)
- Whelen FN72QLED Lightbar
- Whelen 36” Traffic Advisor
- FR Spectra Brow Scene Light
