Delivery Date:
12/18/2019
Department Name:
Orlando Fire Department
Department City / State:
Orlando, FL
Truck Type:

Sutphen Corporation – HS #6380

Dealer – South Florida Emergency Vehicles

WHEEL BASE: 264”

TRAVEL HEIGHT: 12’

TRAVEL LENGTH: 42’ – 5”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 20” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 44,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Niehoff, 360 AMP
  • Transmission: Allison Gen 5, EVS4000

BODY:                  Sutphen

  • Aluminum

ADDITIONAL EQUIPMENT:

  • 30” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • WeatherPak MTR Weather System
  • Seon Inview 360 Video System

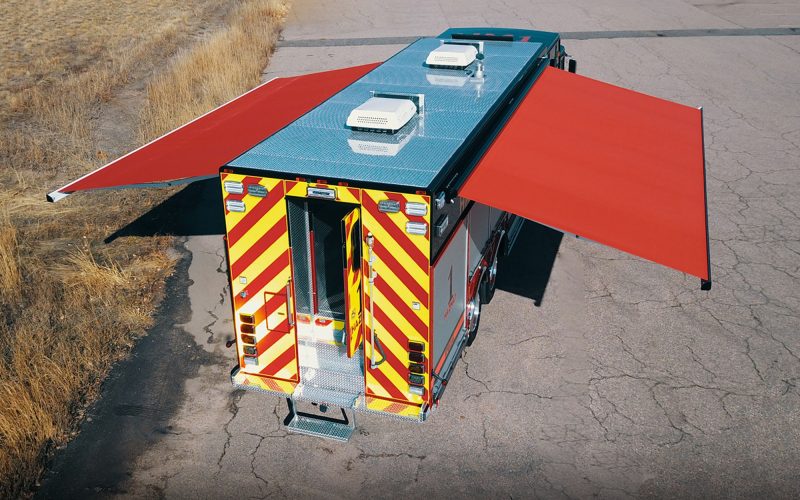

  • Girard G-2000 Roll-Out Awnings
  • Hannay Electric Cable Reel with Power Rewind Controls
  • Hannay Low Pressure Air Hose Reel
  • Hydra-Quad Hydraulic Drive Generator
  • SCBA Cylinder Storage Compartments (5)
  • OnScene Aluminum Heavy-Duty Cargo Slides
  • Whelen LED Warning and Scene Lighting
