Delivery Date:
11/01/2017
Department Name:
Greenhills Fire Department
Department City / State:
Greenhills, OH

WHEEL BASE: 185″

TRAVEL HEIGHT: 9′-8″ ±2″

TRAVEL LENGTH: 32′-1″

CHASSIS:              Sutphen 62” extended cab with half 10” raised roof

  • Four-Door, Six-Person Cab
  • Front Axle 20,000 lb, Suspension 18,000 lb
  • Rear Axle and Suspension 24,000 lb
  • Engine: Cummins ISL 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5 EVS3000

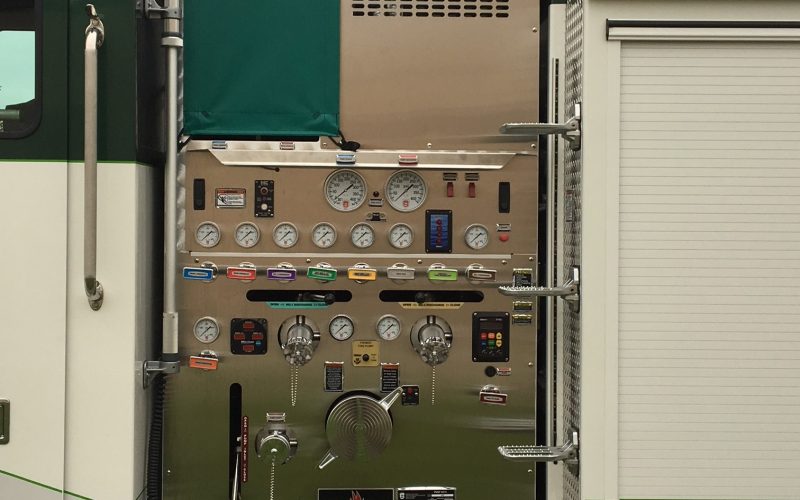

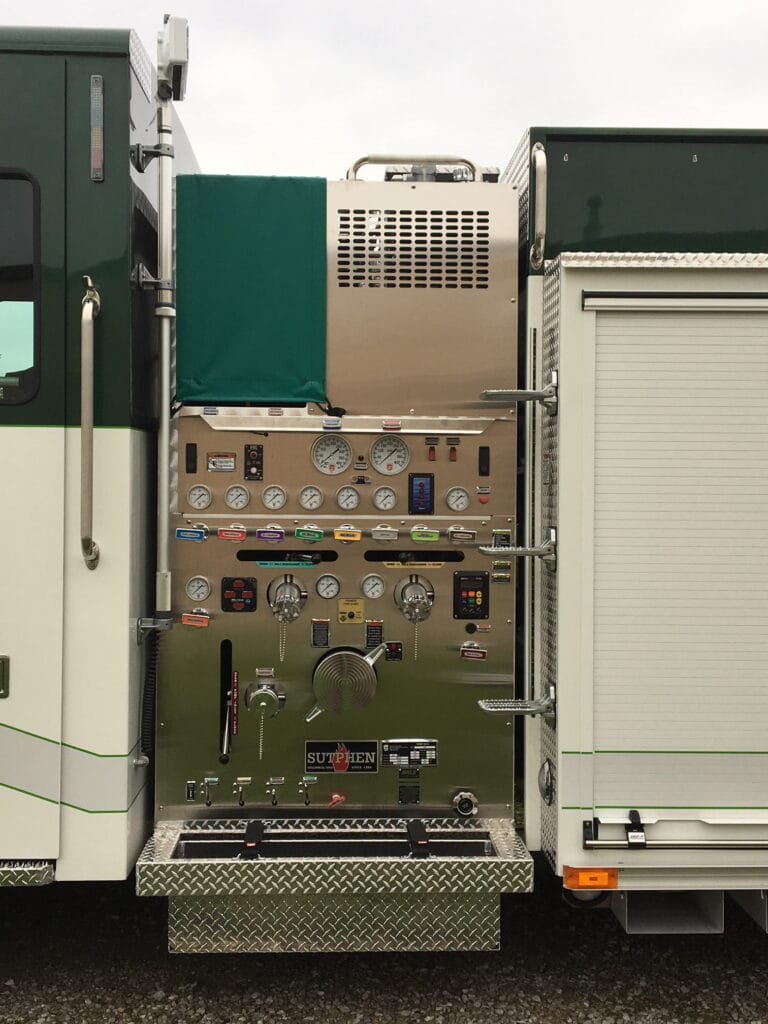

PUMP:                  Hale

  • QMAX-1500 GPM
  • Discharge: (2) 2.5″ Left, 3″ Right, 2.5″ Right, 2.5″ Left Rear, 2.5″ Right Rear
  • 5″ Front Bumper, 2.5″ Plumbing, 3” Deck Gun
  • 500-Gallon Water Tank
  • Manual pump shift override

BODY:                   Sutphen

  • Aluminum
  • 222 cu. ft. Total Compartment Space
  • Alco-Lite PEL-24

OPTIONAL EQUIPMENT:

  • L31 Red LED Beacons, Freedom LED Lightbar, 600, 500 Red LED, Whelen
  • Federal Q2B
  • 24” Bumper Extension
  • Harrison Generator 6KW
  • Cab Tilt system with manual pull cable
  • Handrails front of cab with mirror stainless back plate
  • Moveable mounting with interlock for bell
  • Mount Customer supplied Bell
  • Akron 59 Intake pressure control
  • MC Gauge Heater Box
