Delivery Date:
12/01/2017
Department Name:
Granger Fire Department
Department City / State:
Medina, OH

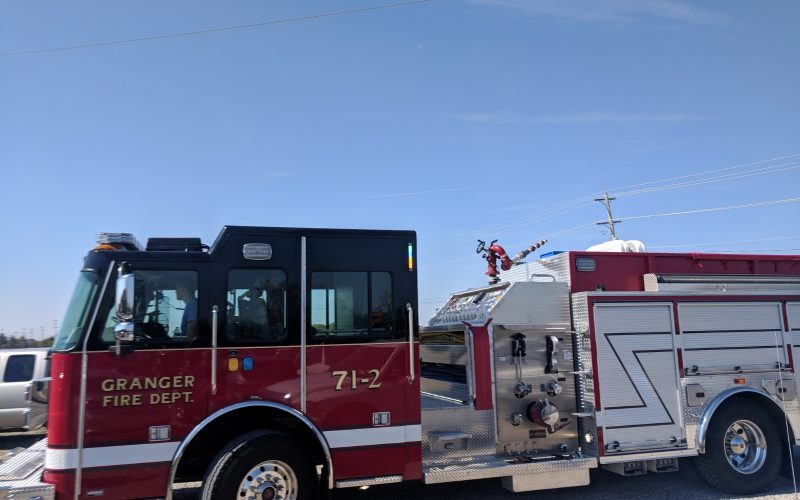

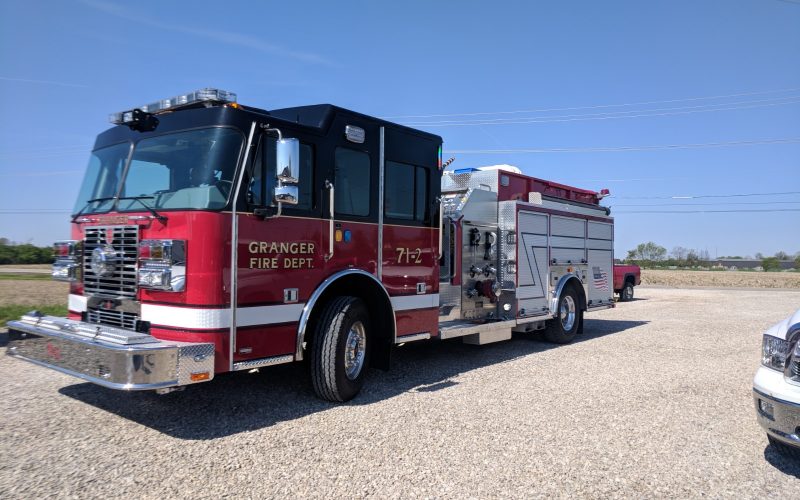

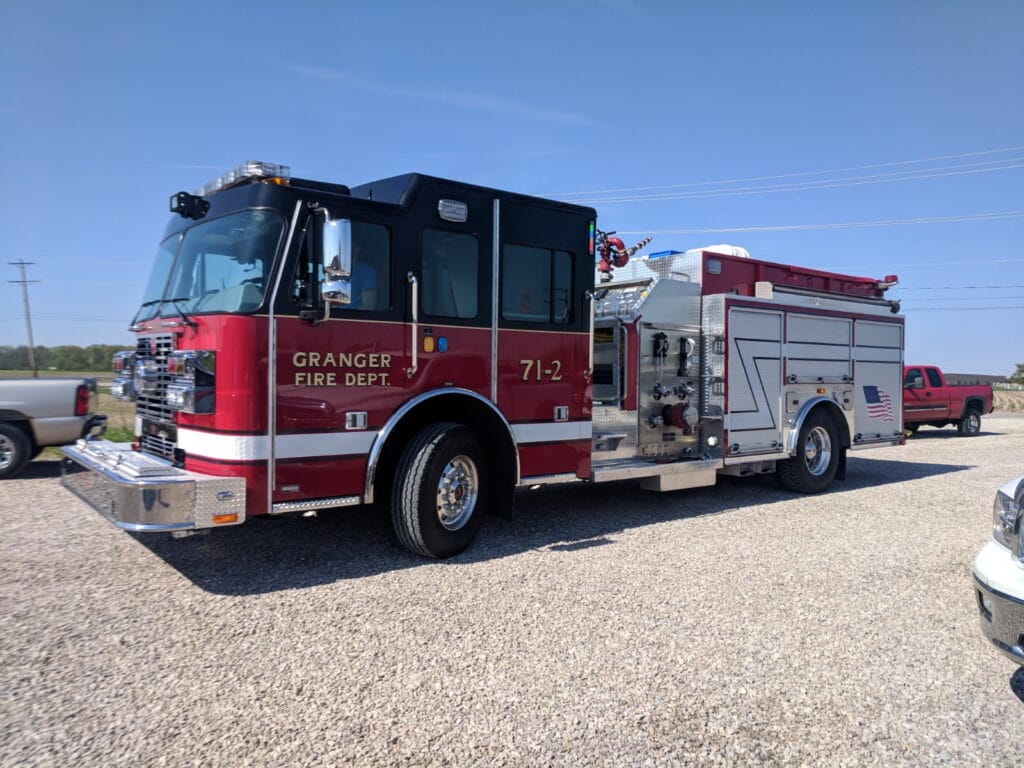

Truck Type:
WHEEL BASE: 215″
TRAVEL HEIGHT: 9′-10″
TRAVEL LENGTH: 33′-10″
CHASSIS: Sutphen 62” extended cab with half 10” raised roof
- Four-Door, Four-Person Cab
- Front Axle and Suspension: 18,000 Lbs.
- Rear Axle and Suspension: 27,000 Lbs.
- Engine: Cummins ISL 9 380HP
- Alternator: Leece Neville 320
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX 1500-GPM SINGLE STAGE
- Discharge: 2.5″ DISCHARGE, LEFT – Position 1, 2.5″ DISCHARGE, LEFT – Position 2, 3″ DISCHARGE, RIGHT – Position 3, DISCHARGE, 2.5″ LEFT REAR, DISCHARGE 2.5″ RIGHT REAR, 1.5″ FRONT BUMPER DISCHARGE, 2″ PLUMBING, DECK GUN DISCHARGE 3″
- 1000 Gallon Water Tank
BODY: Sutphen
- Aluminum
- 222 cu. ft. Total Compartment Space
- Alco-Lite PEL-24
OPTIONAL EQUIPMENT:
- Scene Lights, Whelen
- Federal Q2B
- 18” Bumper Extension
- Ziamatic SAC-44 Folding Wheel Chocks
- Grip Strut Cab Steps
- EMS Cabinet with Amdor Rollup Doors
- Intake Pressure Control Akron Intake Relief Valve
