WHEEL BASE: 185″
TRAVEL HEIGHT: 10′-2″ ±2″
TRAVEL LENGTH: 31′-1″
CHASSIS: Sutphen 62” cab with 15” half raised roof
- Four-Door, Four-Person Cab
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 27,000 lbs.
- Engine: Cummins ISL 9 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5

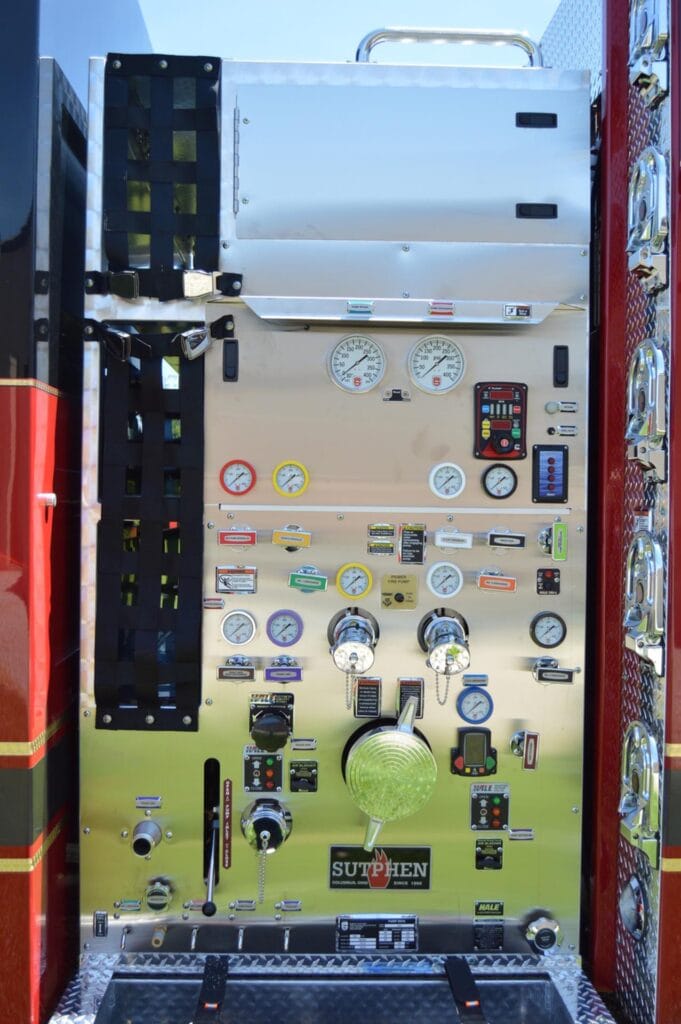

PUMP: Hale
- XS QMAX 1500 GPM Single Stage
- Discharge: (2) 2.5” Left, 3” Left, 2.5” Right, 2.5” Right Front Hosebed, 1.5” with 2” Piping at Pump Panel for Left Running Board Trough, 3” Deck Gun
- 750 Gallon Water Tank
BODY: Sutphen
- Aluminum
- 9 cu. ft. Total Compartment Space
OPTIONAL EQUIPMENT:
- Door Protectors for Roll Up Doors
- Backboard Compartment
- Hose Bed Lights Under Cover
- (2) Warning Lights, Whelen M9V2 Series LED, 90**5F*R
- Deluxe Kussmaul Bar Graph Display Mounted on Driver’s Seat Riser
- Receivers and Winch
- Keyless Override Switch
- Custom EMS Cabinet, Forward Facing, On Crew Seat Riser
- All Seats Durawear Plus
- Overhead Storage Front of 15” Raised Roof with Net

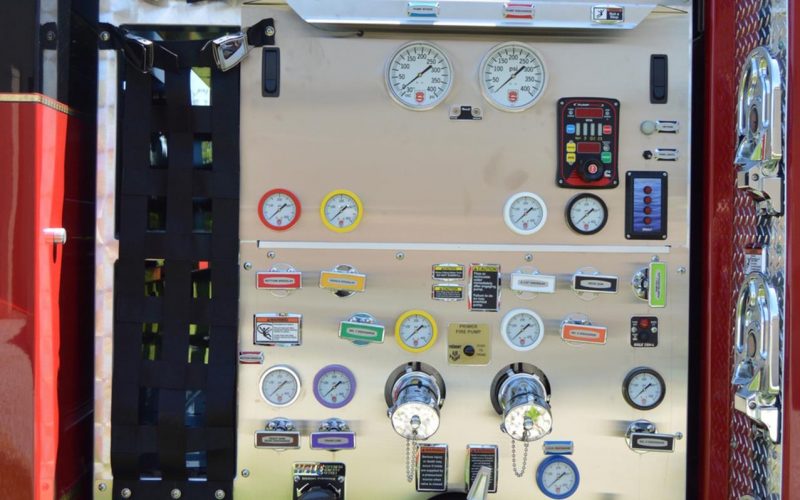

- Pressure Control FRC Pump boss
- Color Coded Gauge Bezels
- Hinged Door on Driver’s and Officer’s Side Dunnage Wall
