WHEEL BASE: 224”
TRAVEL HEIGHT: 10′-6″ ±2″
TRAVEL LENGTH: 35′-10″
CHASSIS:
- Four-Door, Five Person Cab
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 27,000 lbs.
- Engine: Cummins ISL9 450HP
- Alternator: Niehoff, 360 AMP

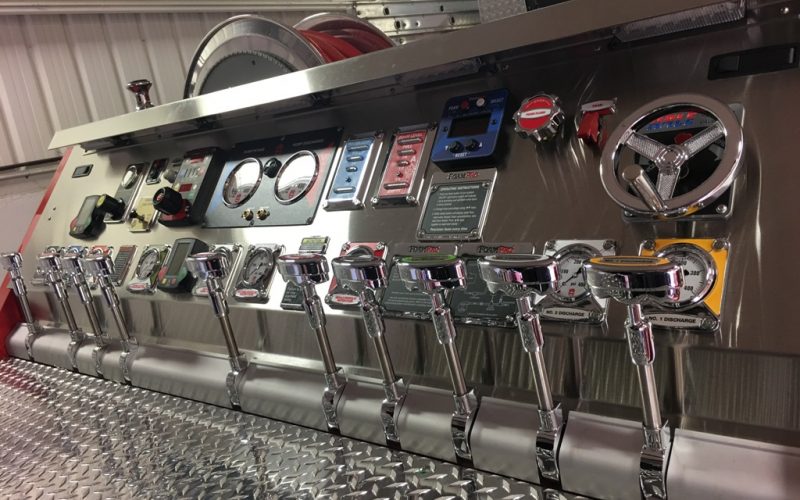

PUMP: Hale
- QTWO-1500 GPM 6” Suction Two Stage Pump
- Discharge: (2) 2.5” Left, 4” Right, 2.5” Right, 2.5” Valve, 2.5” Pipe to Left Rear, 3” Deck Gun
- 750 Gallon Water Tank
- 40 Gallon Foam Tank
BODY: Sutphen

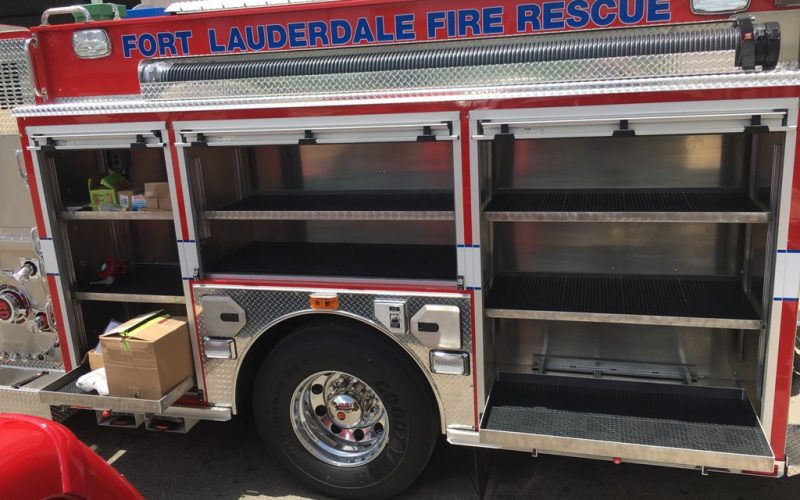

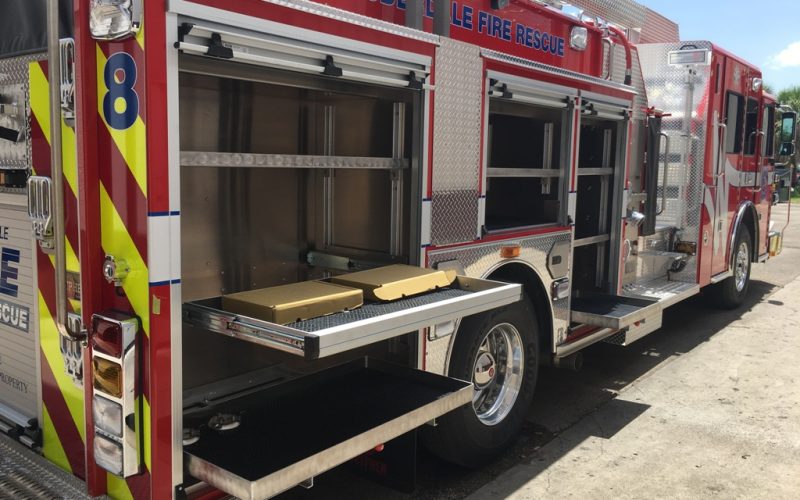

- 264 cu. ft. Total Compartment Space
OPTIONAL EQUIPMENT:
- Pike Pole Tubes through Seat Riser and Accessible in the Exit Cab Compartments.
- Black Scorpion Coating on Top Lip of Front Bumper
- Ball and Cup Receiving Mechanism for Treadplate
- Wire Q2B To Master Emergency Switch
- Additional Turn Signals on Back Wall of Cab-Whelen 600’s
- EMS Compartment on Crew Seat Riser
- Intake Pressure Control, Trident Airmax
- Foam System, FoamPro 3012
- 18″ Tailboard W / 45 Degree Corners
- Dust Filtered Compartments
- All Fold-Down Steps on Body
- Treadplate Box For 10’ Folding Ladder Storage on Ladder Rack
- Honda Generator, 3000 W, Portable
