WHEEL BASE: 261”
TRAVEL HEIGHT: 10’ 3””
TRAVEL LENGTH: 37’ 3.5”
CHASSIS:
- Two-Door, Two-Person Cab
- Front Axle and Suspension: 20,000 Lbs.
- Rear Axle and Suspension: 46,000 Lbs.
- Engine: Cummins ISX 12 500HP
- Alternator: Delco 320 AMP
- Transmission: Allison 4500 EVS

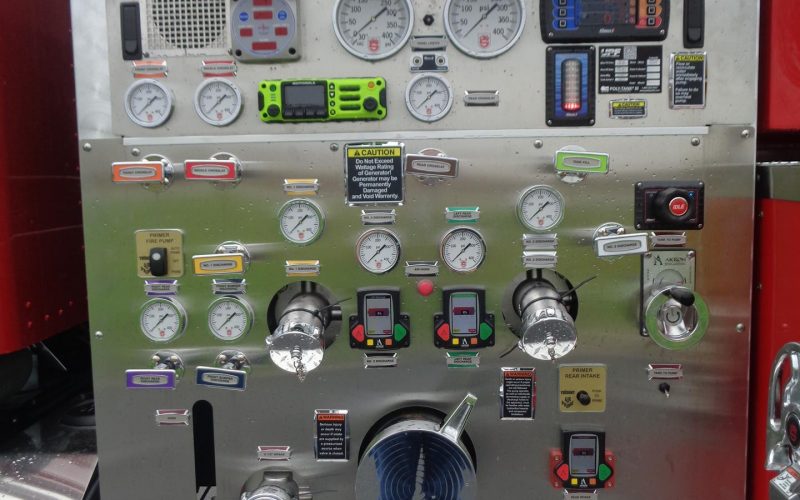

PUMP: Hale
- QMAX-1500 Single Stage
- Discharge: (2) 2.5” Left, 4” Right, 2.5” Left Rear, 2.5” Right Rear, 5” Front Bumper, 2” Plumbing
- 3000 Gallon Water Tank
BODY: Sutphen
- 1 cu. ft. Total Compartment Space
OPTIONAL EQUIPMENT:
- Two Auto Air Primers
- (2) Pump Primers, Trident, Air
- Left and Right SCBA Storage in Rear Fender
- 6 Whelen 900 Scene Lights
- Stainless Drop Visor Installed on Chassis
- Dual Exhaust Installed on Chassis False Exhaust Due to Emissions Requirements
- 2nd Tank to Pump Valve to Back of the Tank Shall be Air Actuated
- Pressure Control (2) Elkhart 40-20 Reliefs Pre-Set 150
- Engine Pressure Governor, Class1 Sentry Governor
- 5” Right Rear Inlet 9323 Electric Controller
- Actuator 1 additional Actuator Switch
- Actuator, Valve, Electric, Akron 9323
