Delivery Date:
02/19/2020
Department Name:
Estero Fire Rescue
Department City / State:
Estero, FL

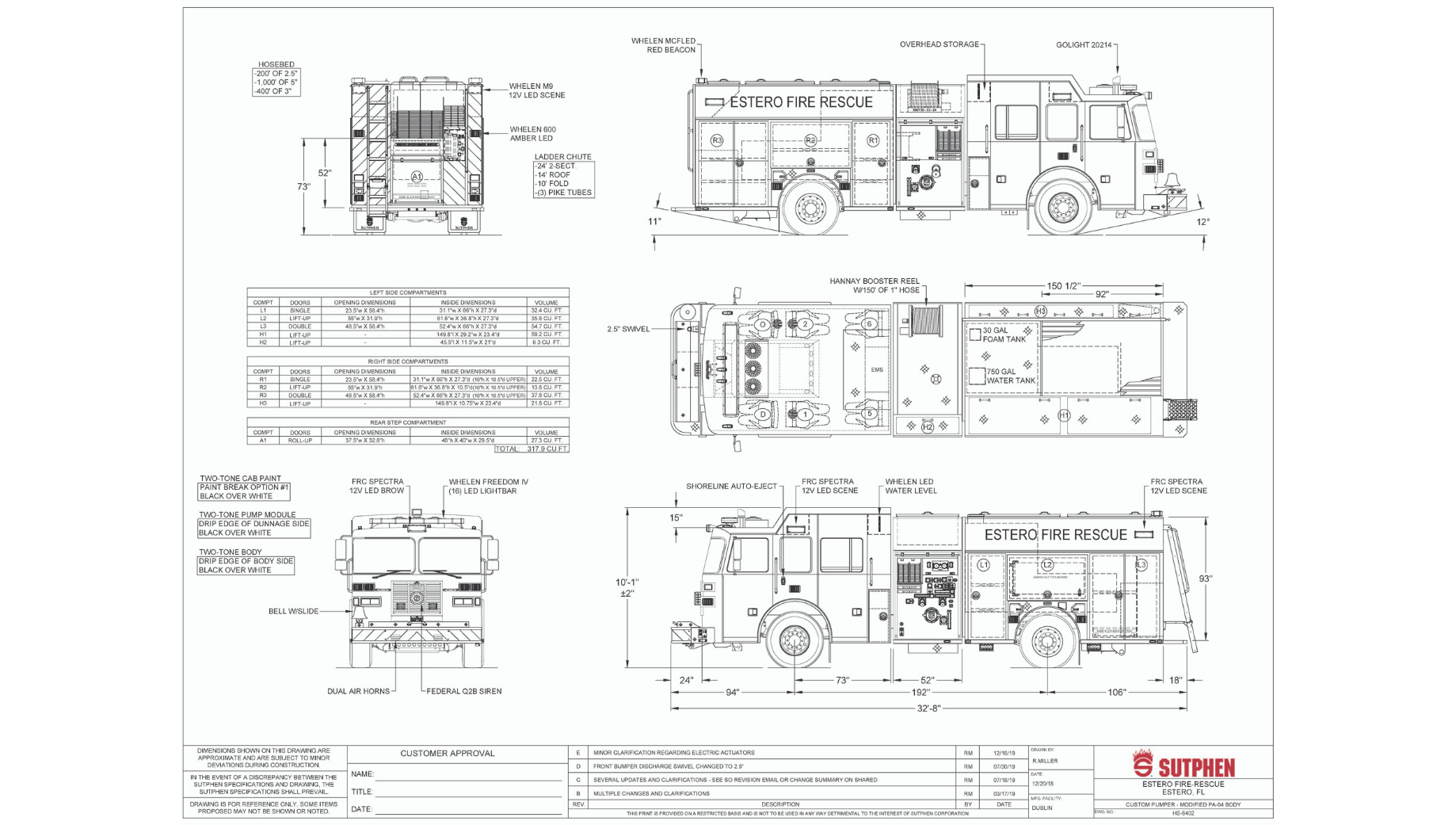

Truck Type:
WHEELBASE: 192”
TRAVEL HEIGHT: 10’ – 1”
TRAVEL LENGTH: 32’ – 8”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 15” Raised Roof
- Four-Door, six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Niehoff, 360 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-2000 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Left Rear, (1) 2 ½” front/left, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- Speedlays: (2) 2” w/ 1 ½” Swivel
- 750-Gallon Water Tank
- 30-Gallon Foam Tank
- Elkhart Foam Supply System w/ Flush

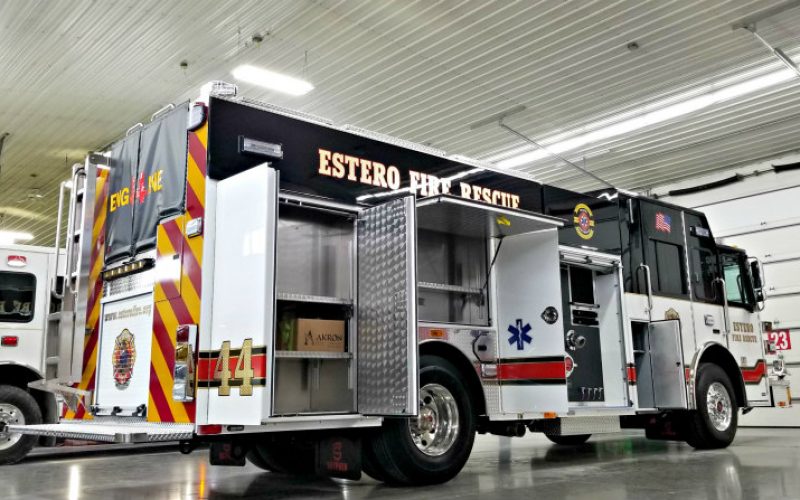

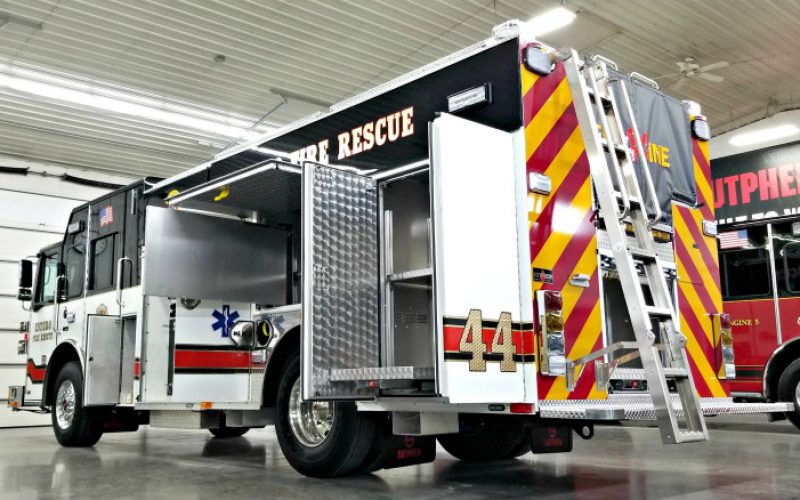

BODY: Sutphen
- ROM Roll-Up Compartment Doors
- 9 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Fully Enclosed Ladder Chutes
- Body: PA-12 RES 31/53 LAD Chute and Left Hatch
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- FRC Spectra Brow Light
- FRC Spectra Telescopic Lights
- Whelen Freedom LED Lightbar
- Whelen M9V Red Warning/Scene Lights
