WHEEL BASE: 185”
TRAVEL HEIGHT: 9’ 10”
TRAVEL LENGTH: 31’10”

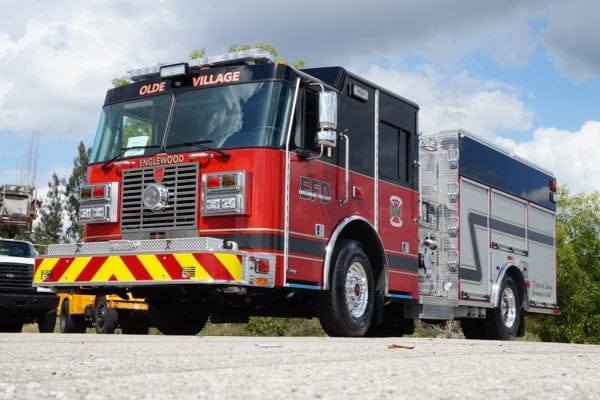

CHASSIS: Sutphen 62” cab with 10” half raised roof
- Four-Door, Four-Person Cab
- Front Axle and Suspension: 18,000 lbs.
- Rear Axle and Suspension: 24,000 lbs.
- Engine: Cummins ISL 9 380HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5

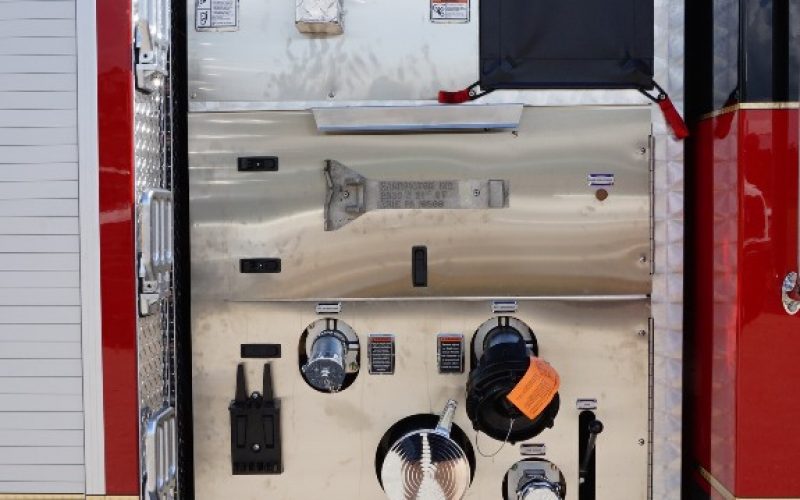

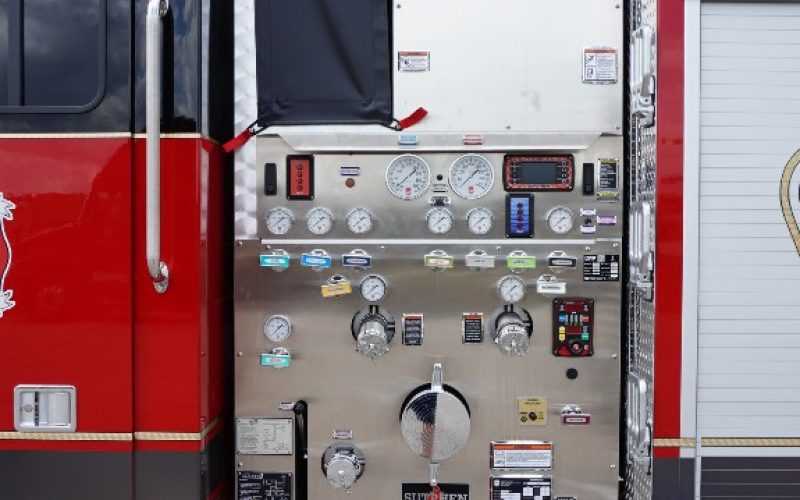

PUMP: Hale
- 1250 GPM Single Stage
- Discharge: (2) 2.5” Left, 3” Right, 2.5” Right, 2.5” Left Rear Hose Bed Preconnect, 1.5” Front Bumper, 2” Plumbing, 3” Deck Gun
- 750 Gallon Water Tank

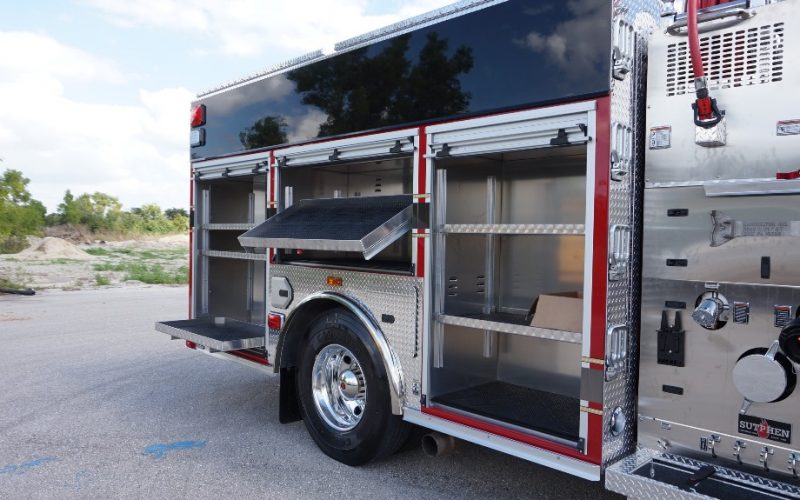

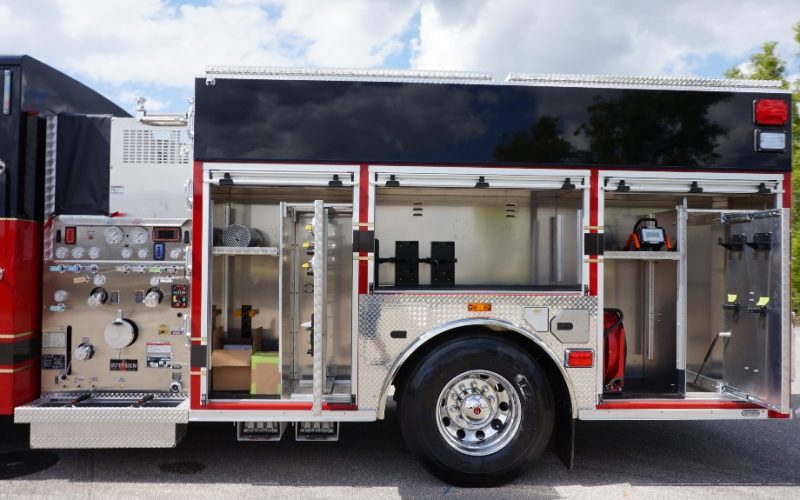

BODY: Sutphen
- Aluminum
- 314 cu. ft. Total Compartment Space
OPTIONAL EQUIPMENT:
- Federal Q2B
- Storage Well Deep center Bumper Trough
- Custom Divider for Bumper
- Custom Bumper Crosslay
- Second Roller and Switch
- Air Outlet on Panel
- Triple Bottle Wheelwell Storage
