WHEEL BASE: 221”
TRAVEL HEIGHT: 10’ 9.25”
TRAVEL LENGTH: 43′ 5.75”
CHASSIS: Sutphen 62” Cab with 10” half raised roof
- Four-Door, Four-Person Cab
- Front Axle and Suspension: 23,000 Lbs.
- Rear Axle and Suspension: 31,000 Lbs.
- Engine: Cummins ISL 9 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5

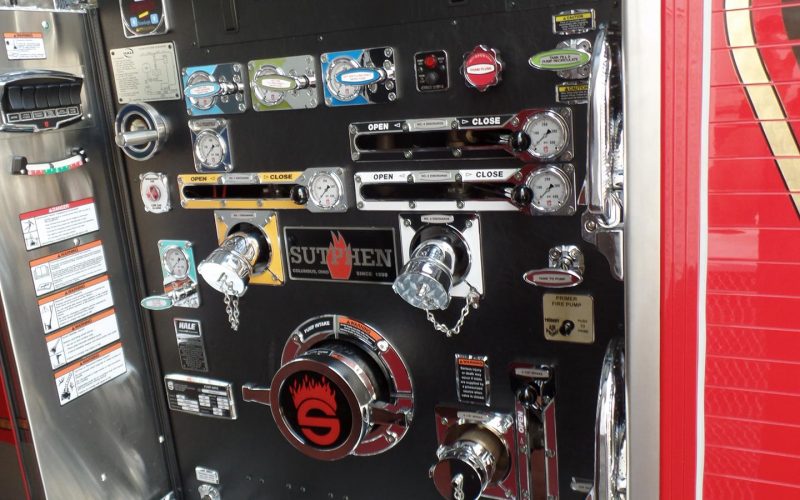

PUMP: Hale
- QFLO-2000 Single Stage
- Discharge: (2) 2.5” Left, 3” Right, 2.5” Right, 2.5” Upper Left Side Body, (2) 2” Front/Left of Main Hosebed, 1.5” Front Bumper, 2” Plumbing,
- 500 Gallon Water Tank

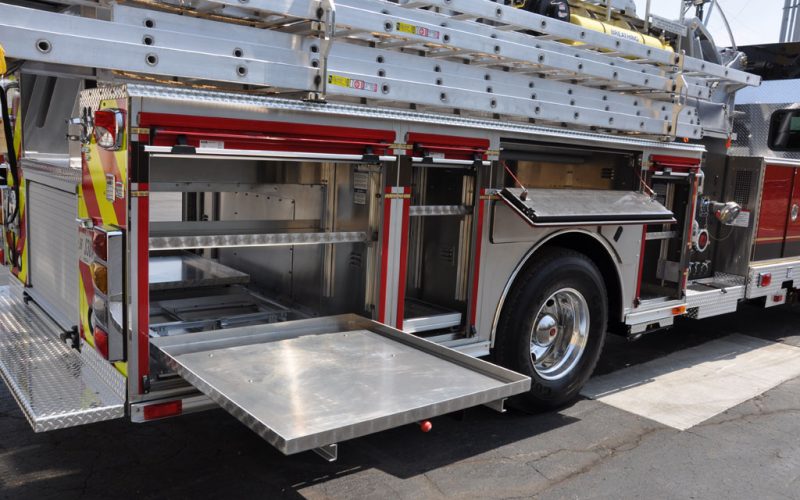

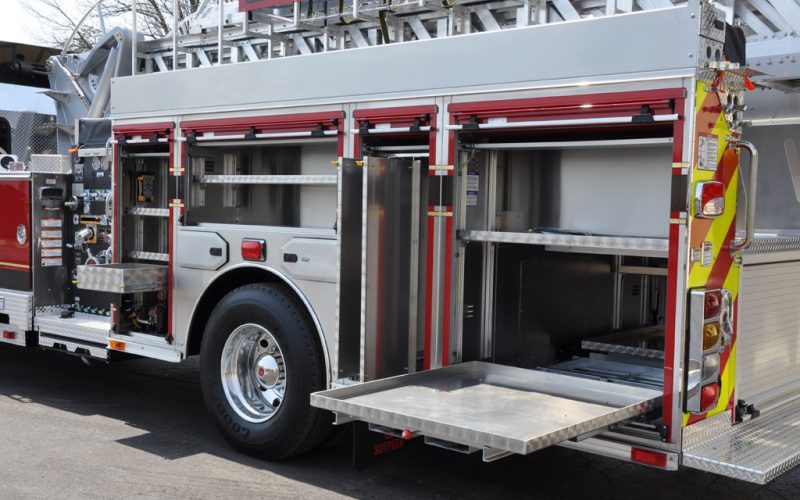

BODY: Sutphen
- 75 cu. ft. Total Compartment Space
OPTIONAL EQUIPMENT:
- Full Depth Storage Well
- Custom Divider Through Center of Trough
- Custom Speedlay Bumper
- Split Upper Hose Bed Into Pike Pole Ladder Storage
- Additional 10FT Folding Ladder
- Whelen M9V Combo Scene on Rear
- Full Enclosed Generator Compartment
- Plug Wired To Platform Lights for Portable Generator
