Delivery Date:
03/01/2018
Department Name:
Elma Fire Company
Department City / State:
Elma, NY

WHEEL BASE: 225”

TRAVEL HEIGHT: 10′-6″±2″

TRAVEL LENGTH: 35′-5″

CHASSIS:              Sutphen 73”cab with 20” half raised roof

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension: 23,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins ISL 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

PUMP:                  Hale

  • QMAX 1500 GPM 6” Suction Single Stage
  • Discharge: (2) 2.5” Left, 4” Right, 2.5” Right, 2.5” Valve 2.5” Pipe to Left Rear, 3” Valve 3” Pipe to Right Rear, 2.5” Front/Right of Main Hose bed, 1.5” Bumper, 2” Plumbing, 3” Deck Gun
  • 750 Gallon Water Tank

BODY:                   Sutphen

  • 357 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

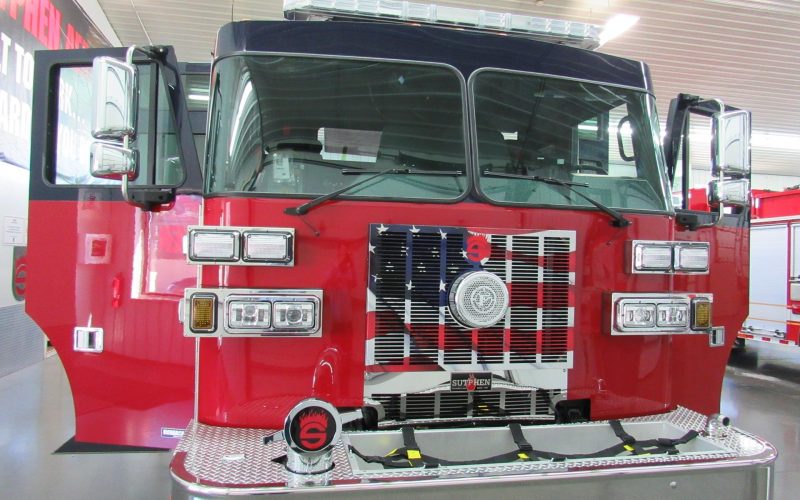

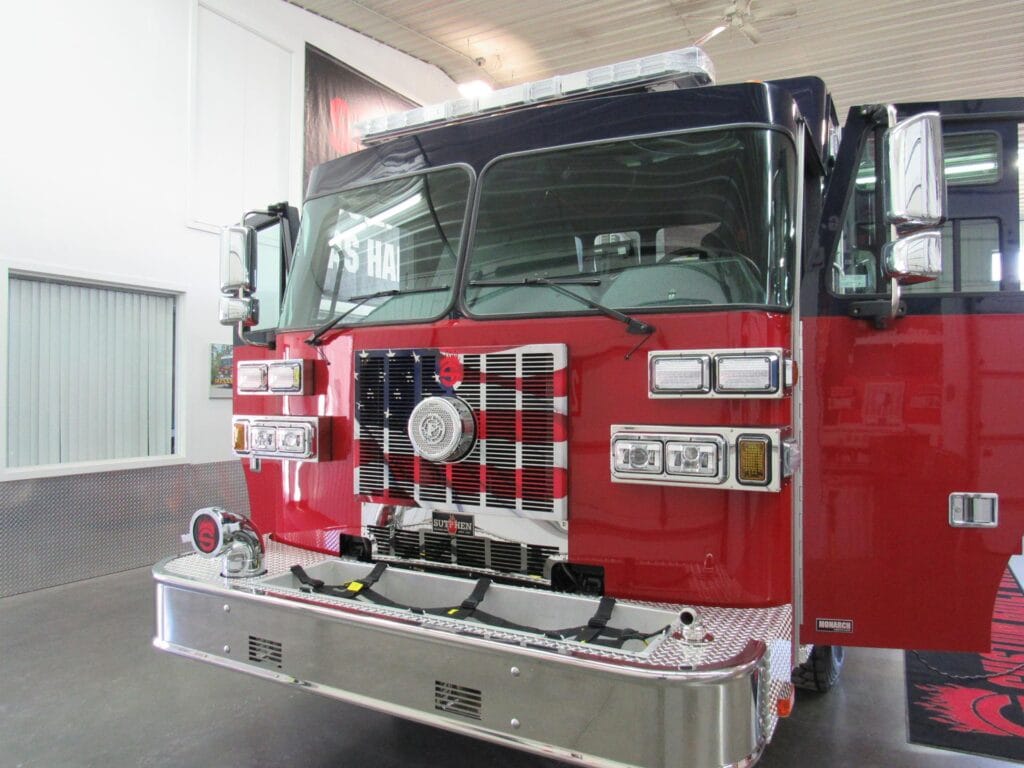

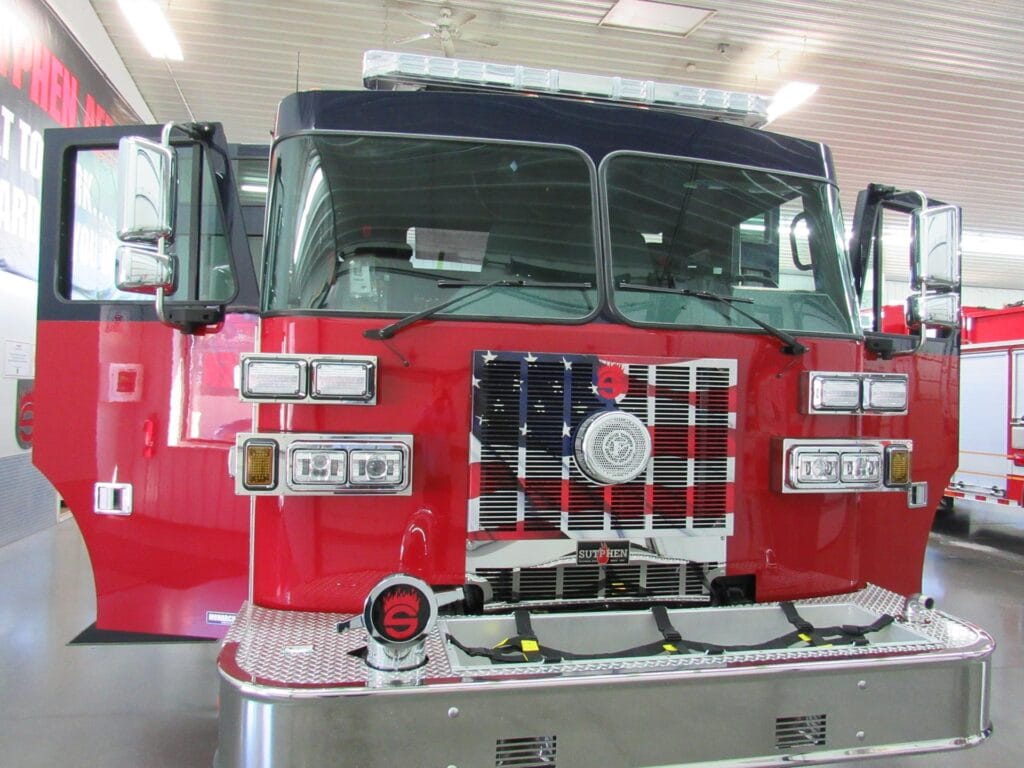

  • 12” Polished Stainless Steel Bumper
  • Enclosed Top Mount Module

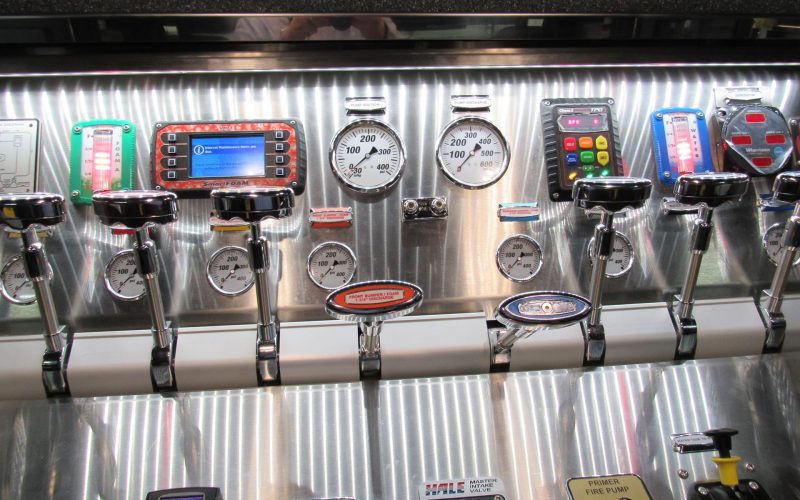

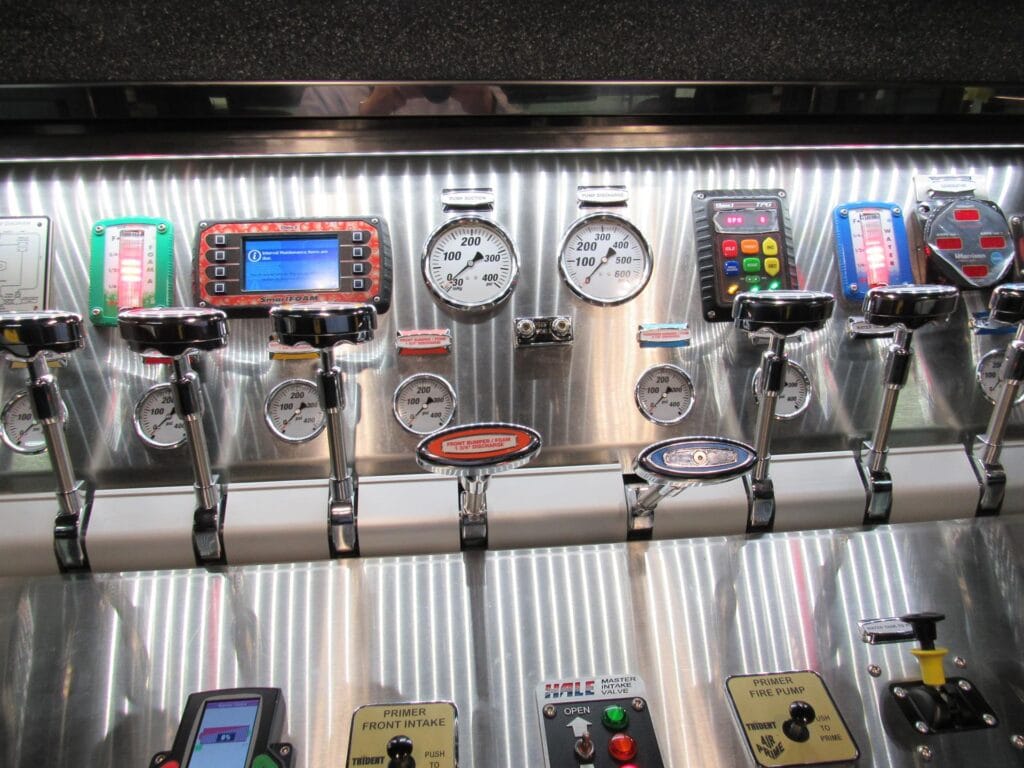

  • Side Mount Pump Panel

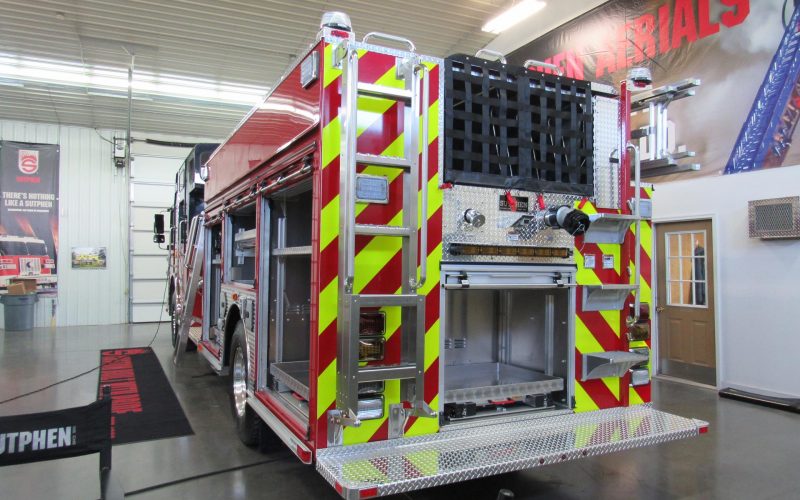

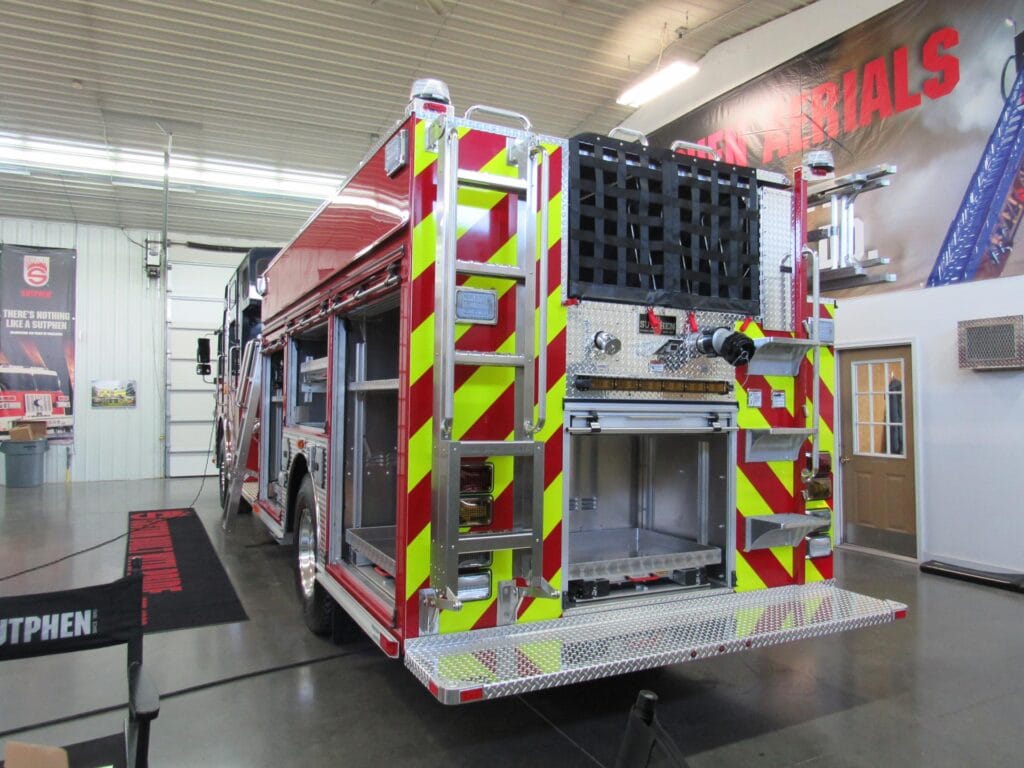

  • Access Ladder, Stainless Steel Drivers Side Pump Module

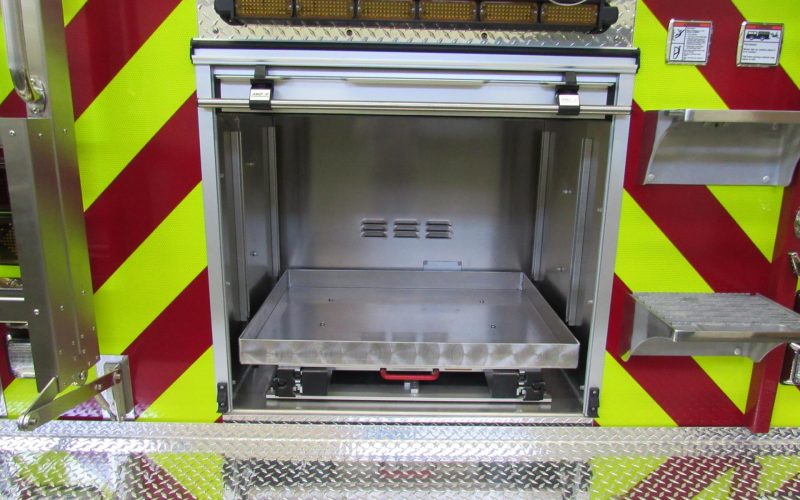

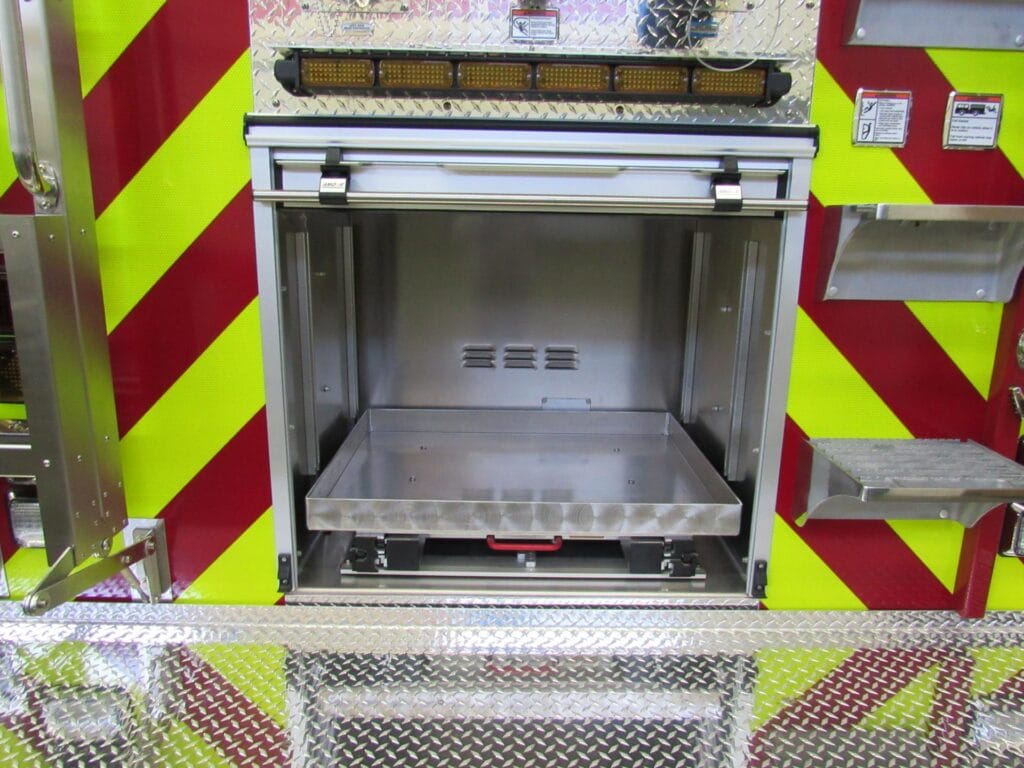

  • On Scene Solutions Slide out Tray
  • On Scene 250 LB Tilt Down Tray Roll Out 250 LBS.

On Scene Solutions Slide out Tray 1000 lbs.
