Delivery Date:
05/01/2018
Department Name:
Durham Fire Department
Department City / State:
Durham, NC

WHEEL BASE: 173”

TRAVEL HEIGHT: 9’ 8” ±2”

TRAVEL LENGTH: 30′ 1”

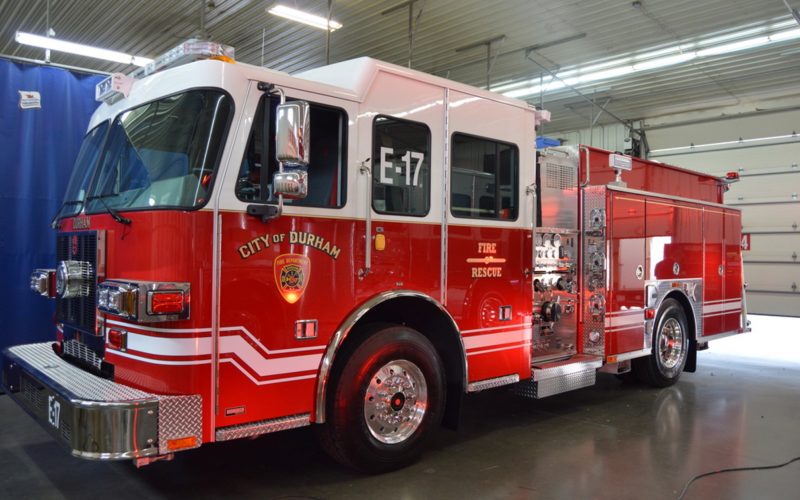

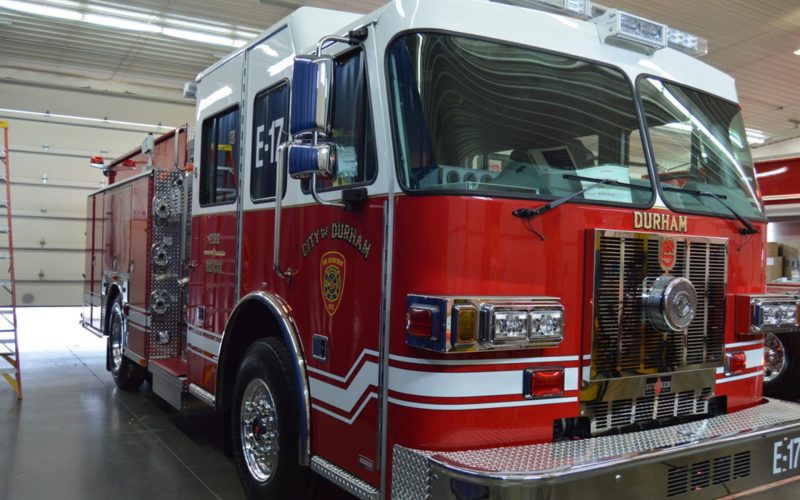

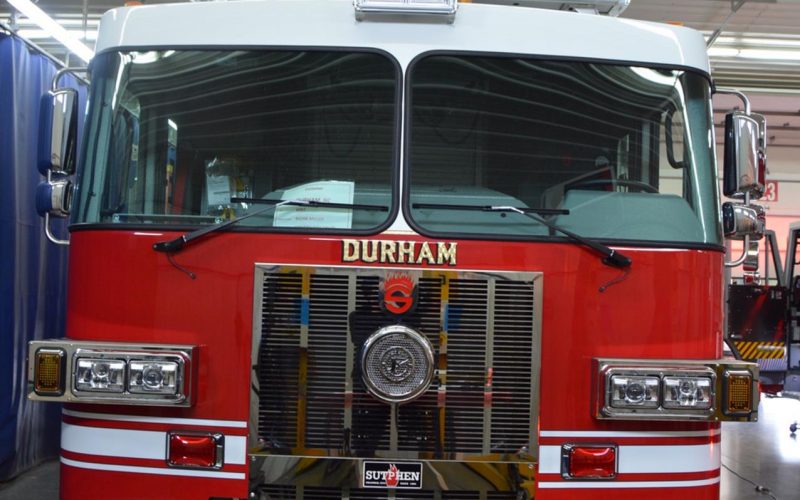

CHASSIS:              Sutphen 62” Cab with 10” half raised roof

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension: 20,000 Lbs.
  • Rear Axle and Suspension: 27,000 Lbs.
  • Engine: Cummins ISL 9 400HP
  • Alternator: Leece Neville 270 AMP
  • Transmission: Allison Gen 5

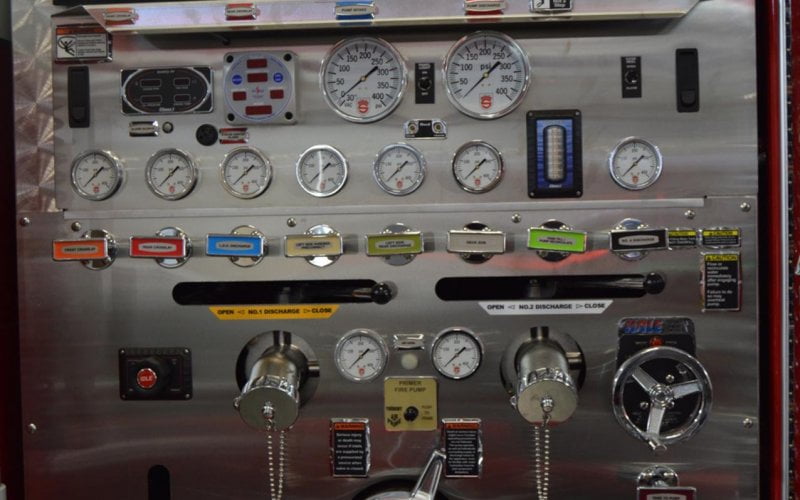

PUMP:                  Hale

  • QMAX-1500 GPM Single Stage
  • Discharge: (2) 2.5” Left, 3” Right, 2.5” Right, 2.5” Left Rear, 2.5” Front/Left of Main Hosebed, 3” Deck Gun
  • 1000 Gallon Water Tank

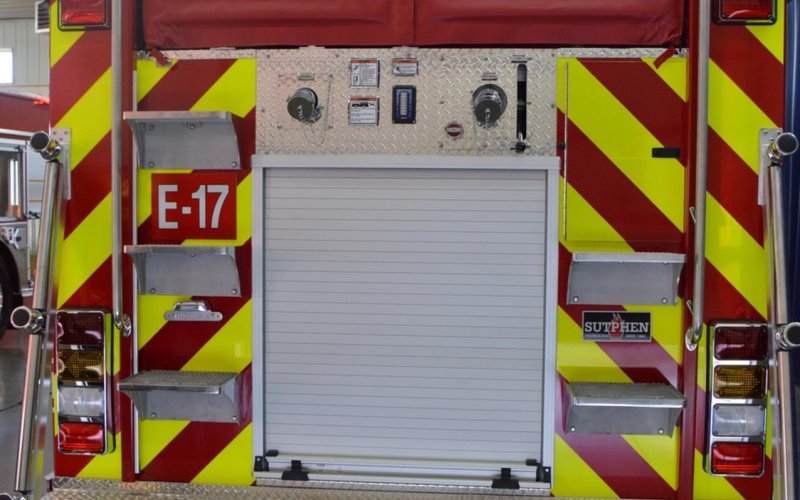

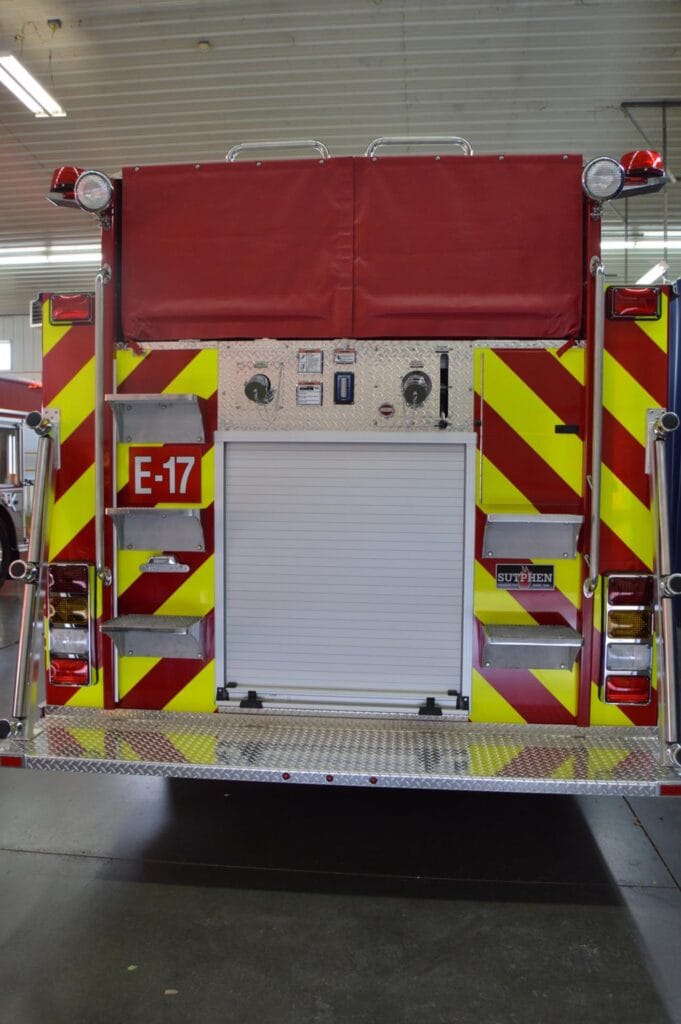

BODY:                   Sutphen

  • 224 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Compression Fittings on All Air Lines and Aux
  • Hydraulic Hose Ends on Power Steering Lines
  • Sutphen supplied and Installed Antenna
  • Officer Side Speedometer
  • Pressure Control, Hale QG, w/Manual Relief Valve
  • Class 1 Twister Hand Throttle
  • Booster Reel Hose Rollers, Hannay FH-3
  • Removable Plate on End of Ladder Chute Enclosure for Cleaning Purposes
