Delivery Date:
11/01/2017
Department Name:
Duncan Fire Department
Department City / State:
Duncan, OK
Truck Type:
WHEEL BASE: 221″
TRAVEL HEIGHT: 10′-0 1/2″
TRAVEL LENGTH: 40′-5 1/4″
CHASSIS: Sutphen 62″ cab with half 10” raised roof
- Four-Door, Five-Person Cab
- Front Axle and Suspension 23,000 Lb.
- Rear Axle and Suspension 31,000 Lb.
- Engine: Cummins ISX 12 500HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS4000

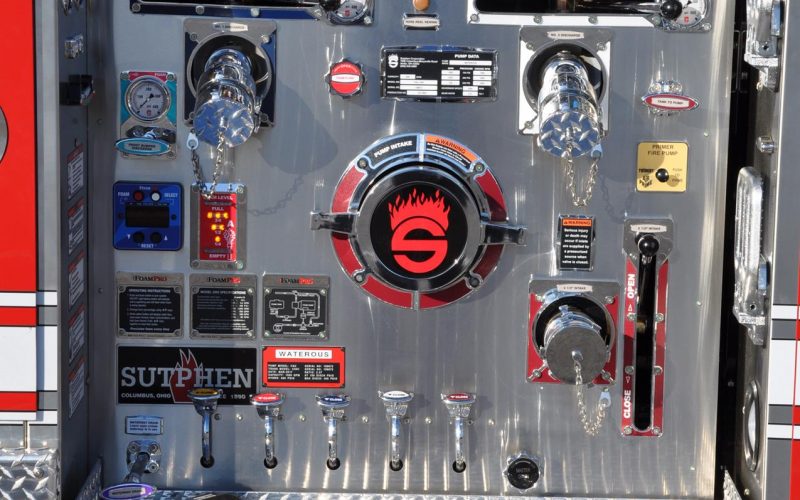

PUMP:
- CSU- 1500 GPM Single Stage
- Discharge: (2) 2.5″ Left, 3″ Right, 2.5″ Right, 2.5″ Upper Left Side Body, 1.5″ Front Bumper, 2″ Plumbing,
- 470 Gallon Water Tank
- 30 Gallon Foam Tank
- FoamPro 2002, 5.0 GPM
BODY: Sutphen
- Stainless Steel Sub frame
- 75 cu. ft. Total Compartment Space
- Alco-Lite 10 ft. Folding Ladder
OPTIONAL EQUIPMENT:
- Scene Lights, Whelen
- Federal Q2B
- 18” Bumper Extension
- Coat hooks on EMS box
- Engine Hood Accessory Tray
- Booster Reel above L1
- External Radio Speaker mounted above Pump Panel
