Delivery Date:
05/01/2018
Department Name:

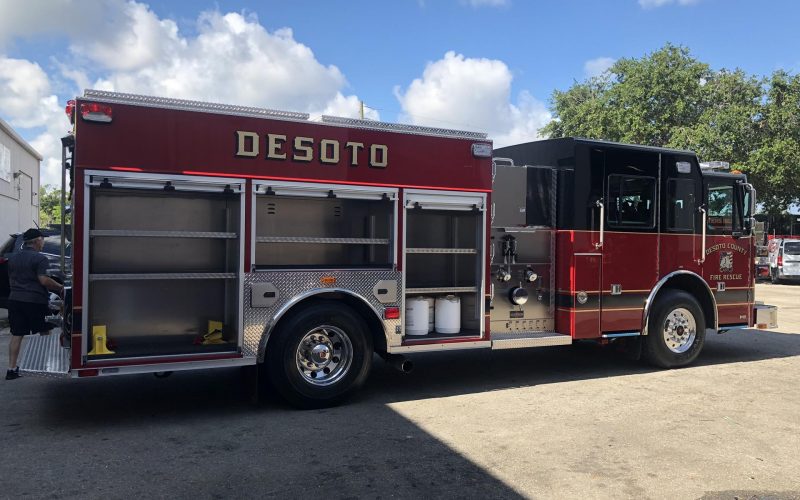

DeSoto County Fire Department
Department City / State:
Arcadia, FL

WHEEL BASE: 196”

TRAVEL HEIGHT: 9’ 11”

TRAVEL LENGTH: 32′ 3”

CHASSIS:              Sutphen 73” Cab with 10” half raised roof

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension: 20,000 Lbs.
  • Rear Axle and Suspension: 27,000 Lbs.
  • Engine: Cummins ISL 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

PUMP:                  Hale

  • QFLO-1250 Single Stage
  • Discharge: (2) 2.5” Left, 3” Right, 2.5” Right, 2.5” Left Rear, 1.5” Front Bumper, 2” Plumbing, 3” Deck Gun
  • 1000 Gallon Water Tank

BODY:                   Sutphen

  • 314 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Special Body, Ladder Through Tank Above A1 Compartment
  • Special Body Add Hatch Compartments
  • Backboard Storage
  • Shoreline Inlet 120V Shoreline Inlet, Blue Sea Systems
  • Battery Charger Blue Sea Systems
  • Exterior Compartments, Side of Ext Cab, Transverse
  • Crew Seat Compartment, Flip Down Doors
