Custom Pumper – Lebanon Fire Department, OH

Sutphen Corporation – HS #6349

Dealer – Heritage Fire Equipment

WHEELBASE: 185”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 32’ – 1”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

• Four-Door, Six-Person Cab
• 10” Double Frame Rails (50K PSI)
• Front Axle and Suspension 20,000 lbs
• Rear Axle and Suspension 24,000 lbs
• Engine: Cummins L 9, 450 HP
• Alternator: Leece Neville, 320 AMP
• Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

• XS QMAX-1500 GPM, Single Stage Pump
• Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
• Crosslay: (1) 2 ½” Crosslay
• Speedlay: (2) 2” w/ 1 ½” Swivel & Poly Lift-out Tray
• 750-Gallon Water Tank
• 30-Gallon Foam Tank

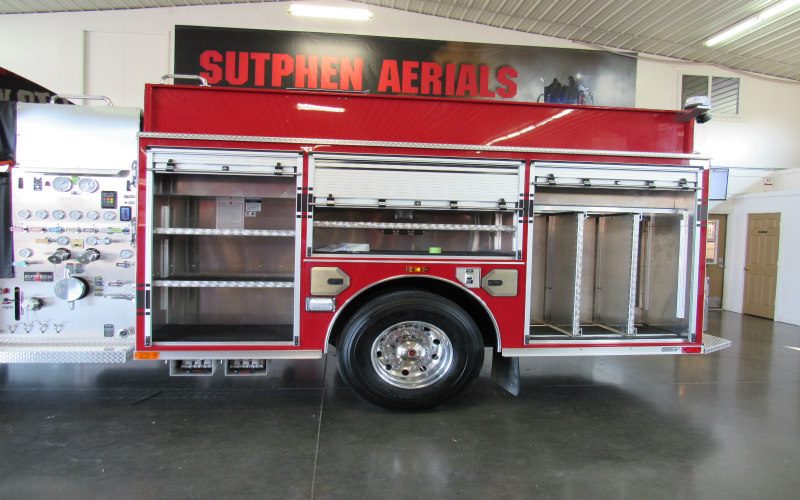

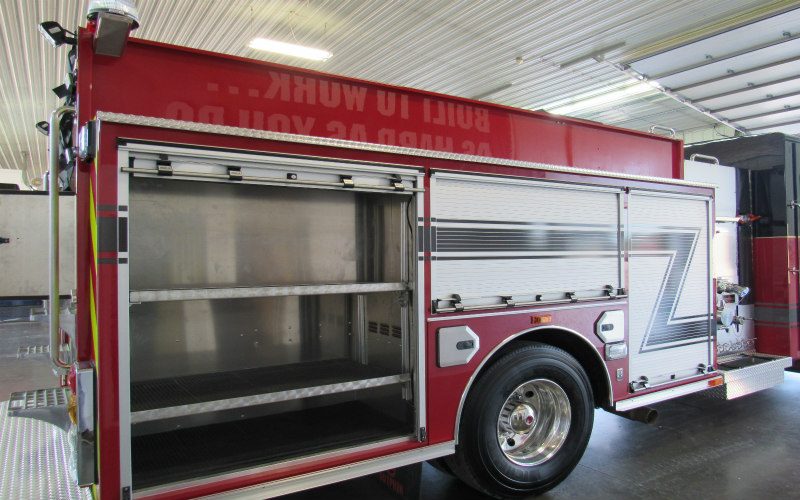

BODY:                  Sutphen

• AMDOR Roll-Up Compartment Doors
• 222 cu. ft. Total Compartment Space
• Alco-Lite Ladder Package (PEL-24 24’ 2-Section & 14’ Roof & 10’ Folding)
• Fully Enclosed Ladder Chute
• Body: S2-Alum 43/53, Lad Chute

ADDITIONAL EQUIPMENT:

• 24” Polished Stainless Steel Bumper
• Federal Q2B Siren, Grille Mount
• Safety Vision Camera System
• FRC Spectra LED Brow Light
• FRC Spectra 12V LED Scene Lights
• Whelen Freedom IV LED Lightbar
• FRC Spectra 900 12V LED Scene Lights
• Whelen L31 Red Beacon Lights
