Delivery Date:
05/29/2018
Department Name:
Defiance Fire Department
Department City / State:
Defiance, OH

WHEEL BASE: 195”

TRAVEL HEIGHT: 9’ 8” ±2”

TRAVEL LENGTH: 32′ 5”

CHASSIS:              Sutphen 62” Cab with 10” half raised roof

  • Four-Door, Four-Person Cab
  • Front Axle and Suspension: 20,000 Lbs.
  • Rear Axle and Suspension: 27,000 Lbs.
  • Engine: Cummins ISL 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

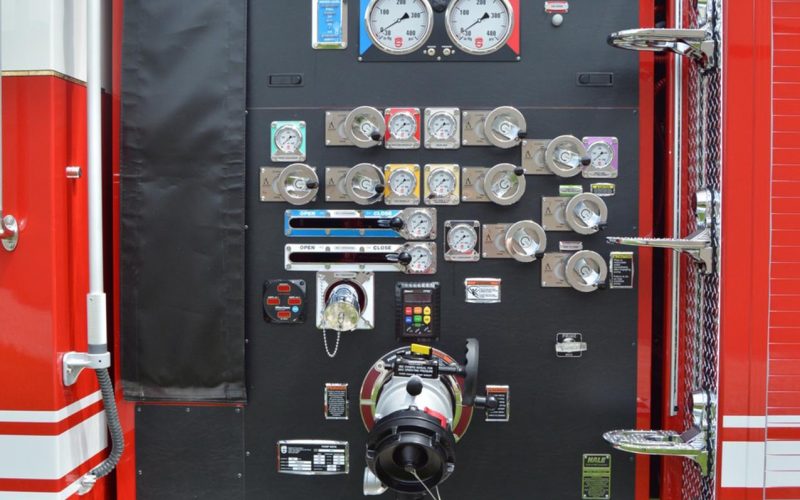

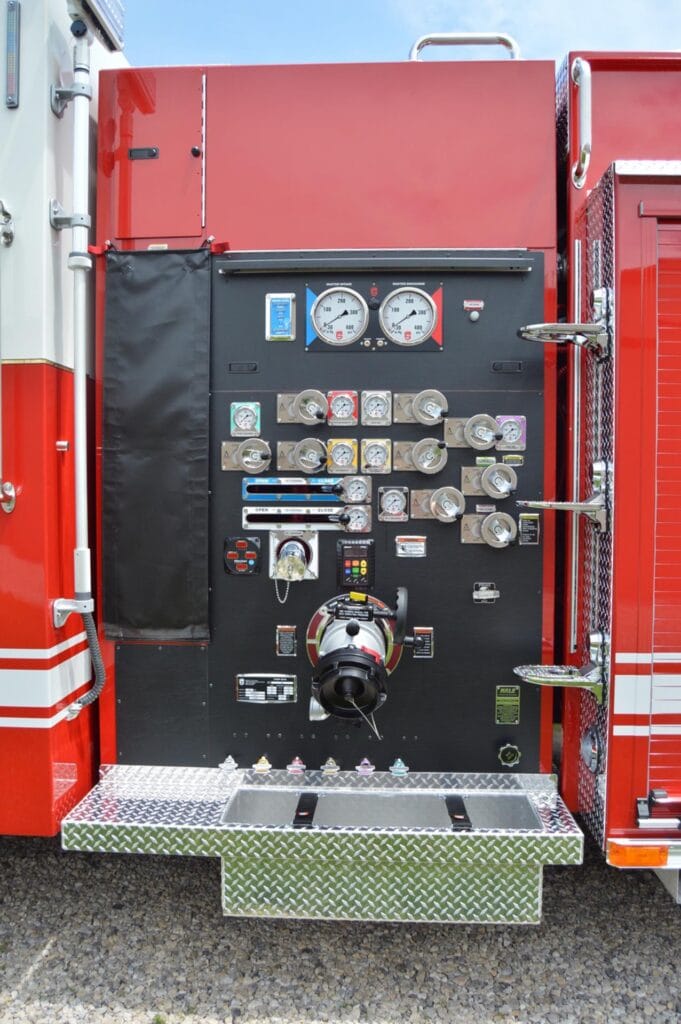

PUMP:                  Hale

  • QMAX-2000 Single Stage
  • Discharge: 2.5” Left, 3” Right, 2.5” Right, 2.5” Front/Left of Main Hosebed, 2.5” Front/Right of Main Hose Bed, 2.5” to Front Bumper, 3” Deck Gun
  • 1000 Gallon Water Tank

BODY:                   Sutphen

  • 234 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Extinguisher Compartment
  • A1 Door Painted
  • Ladder Chute
  • Eliminate Backboard Storage, More Pike Poles
  • Hand Wheel Control
  • (2) 1.5” Speed Lays w/Lift Out Tray and Compartment in place of 2.5”
  • Compartment Above Speed Lays
  • Additional Trays for Speed Lays

Painted Panels, Upper Pump Panel and Upper Panel Door
