Delivery Date:
05/30/2018
Department Name:
Dearborn Fire Department
Department City / State:
Dearborn, MI

WHEELBASE:  269″

TRAVLE HEIGHT: 10′ – 1″

TRAVEL LENGTH: 50′ – 5”

CHASSIS:             Sutphen 73” Cab with 10” half raised roof

  • Four-Door, Four-Person Cab
  • Front Axle and Suspension: 23,000 lbs
  • Rear Axle and Suspension: 44,000 lbs
  • Engine: Cummins ISX 12 500HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS4000

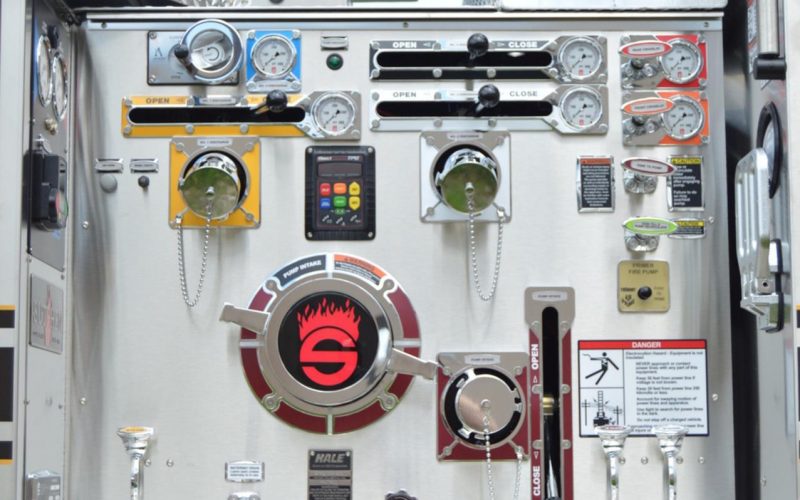

PUMP:                  Hale

  • QMAX-1500 GPM 6” Suction Single Stage Pump
  • Crosslay: (2) 2” Valve-Piping 1 ½” Swivel
  • Discharge: (2) 2.5” Left, 3” Right, 2.5” Right
  • 500 Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • ROM Roll-Up Compartment Doors
  • Alco-Lite Ladder Package (115’: 14’, 16’, 16’, 24’ 2-Section, 35’ 3-Section & 10’ F
  • Fully Enclosed Ladder Chutes
  • Body: SP3 – Left High / Low Right Balt

OPTIONAL EQUIPMENT:

  • 24” Bumper Extension
  • Camera System: Voyager 3, Split Screen
  • Federal Q2B Siren, Flush Grille Mount
  • Whelen 72” LED Lightbar
  • PFP2 Brow Light
  • Go Light
  • FR Spectra 12V
  • Rigid Boom Tracking Lights

MONITOR:

  • Driver Side Monitor: Akron 3473, Gemini Manual 1000 GPM
  • Driver Side Nozzle: Akron 5160 Auto
  • Officer Side Monitor: Akron 3473 Gemini Manual 1000 GPM
  • Officer Side Nozzle: Akron 2499 & 3488 Pipe
