Department Name:

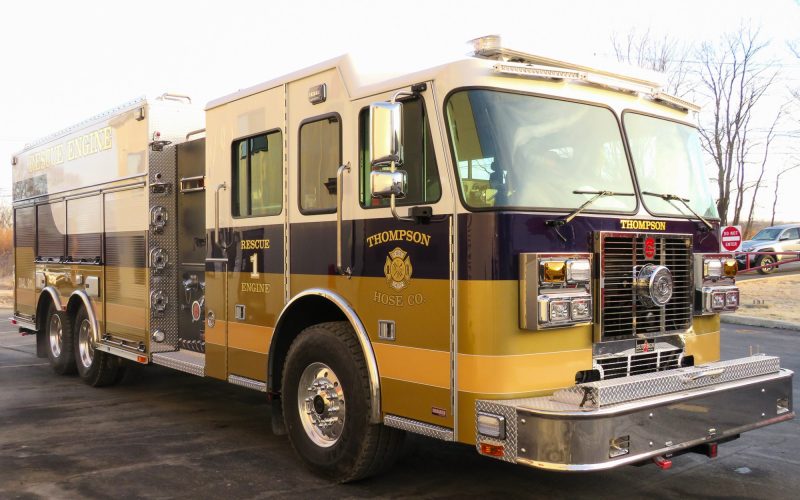

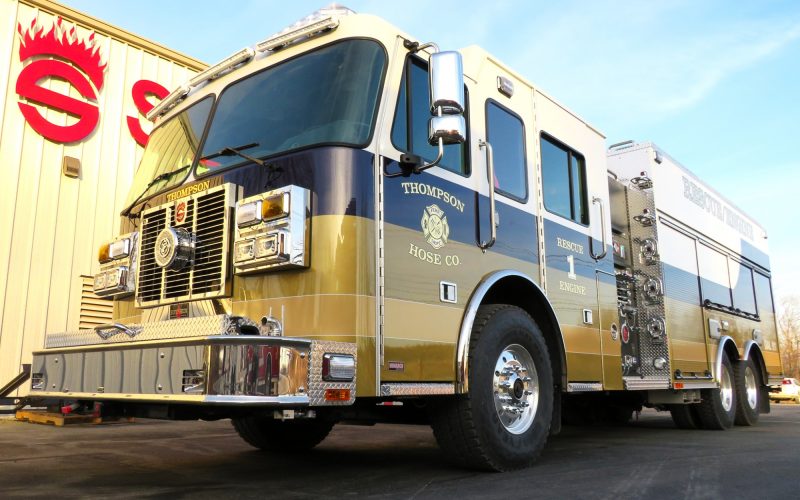

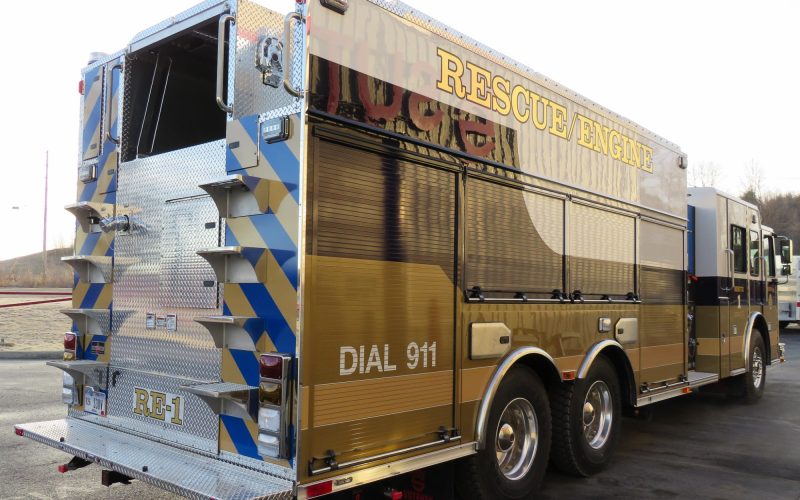

Thompson Hose Company
Department City / State:
Thompson, PA
Truck Type:
Sutphen Corporation – HS #7187
Dealer – Signal 1 Fire Equipment
WHEELBASE: 234 ¼”
TRAVEL HEIGHT: 10’ – 9”
TRAVEL LENGTH: 37′ – 3 ¼”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 10” Raised Roof
- Four-Door, Eight-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension: 23,000 lbs.
- Rear Axle and Suspension: 48,000 lbs.
- Engine: Cummins X 12, 500HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS4000
PUMP: Hale
- QMAX-2000 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (2) 3” Right, (1) 3” Pipe to Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (2) 2” w/ 1 ½” Swivel
- 1,800-Gallon Water Tank
- 20-Gallon Foam Tank
- Foam System: Akron 95 GPM 3096 By-Pass w/ Flush to (1) 1 ½” Discharge Line
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- Alco-Lite Ladder Package: PEL-24, 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Over 530 cu. ft. Total Compartment Space
- Body: TA-05 – Tanker 56/53 High/High Ladder Rack
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Single Camera
- Hannay Booster Reel w/ 200’
- 72” Freedom Lightbar
- FireTech 3-Piece Brow Light
- FireTech Guardian Elite JR Scene Lights
