Delivery Date:
12/06/2024
Department Name:

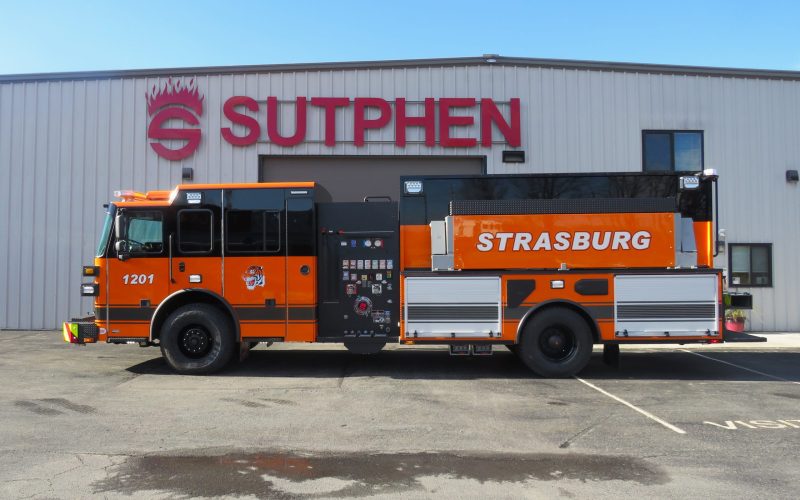

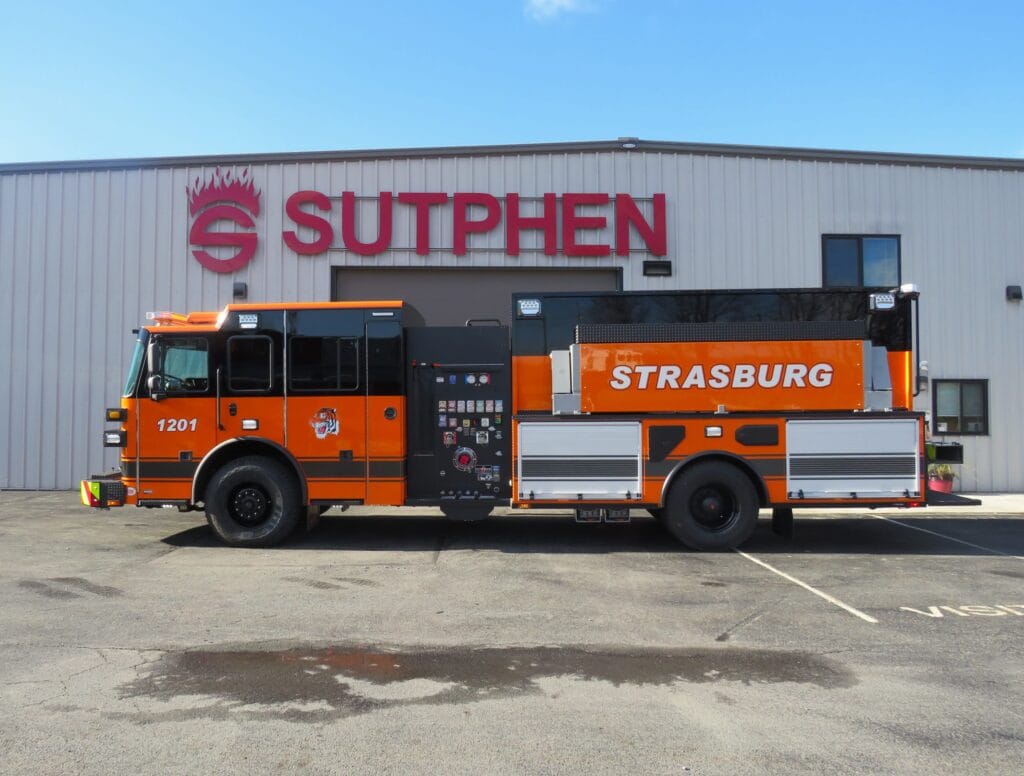

Strasburg Fire Department
Department City / State:
Strasburg, OH

Dealer –  Herb Fire

WHEELBASE: 216”

TRAVEL HEIGHT: 9’ – 11”

TRAVEL LENGTH: 35’ – 3”

CHASSIS:           Sutphen Monarch Heavy-Duty Custom Chassis, 73” Cab w/ a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs w/ (4) 56” Leafs
  • Rear Axle and Suspension 35,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Valve 3” Pipe to Left Rear, (2) 2 ½” Front/ Left of Main Hosebed, (1) 1 ½” Front Bumper, 2” Plumbing, (1) 3” Deck Gun
  • Speedlays: (2) 1 ½” w/ Lift Out Tray
  • 2000-Gallon Water Tank

BODY:                 Sutphen

  • 3/16 Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 200 cu ft. Total Compartment Space
  • Body: Tanker 56/53 /High/ Low – Ladder Chute

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Intercom System: SetCom LiberatorMAx, Single Radio, 4 Position (Wireless)
  • Camera System: FRC, Inview Trueview, Single Camera (Wired)
  • Whelen 22” Traffic Advisor
  • FireTech 3-Piece 72” LED Brow Light
  • Whelen Freedom IV 72” LED Light Bar
  • Whelen 900 LED Scene Lights
  • FireTech WL-2000 Work Light

MONITOR:

  • Akron Apollo 3433 High Ride w/ Quad Stacked Tips & Stream Shaper
