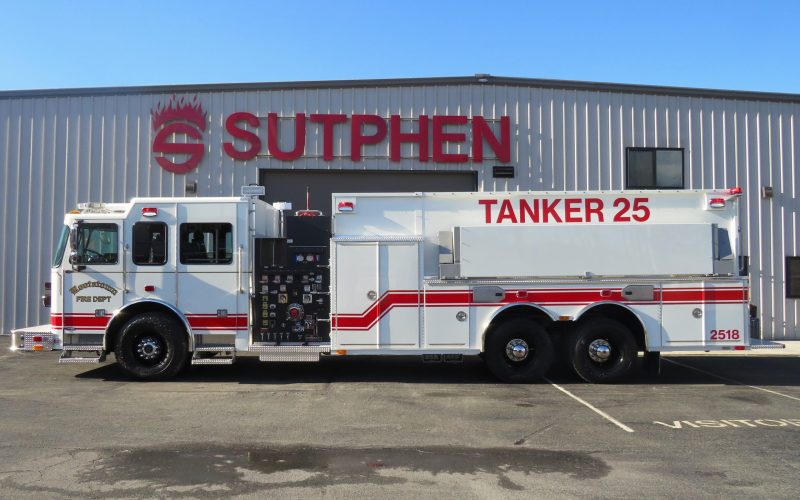

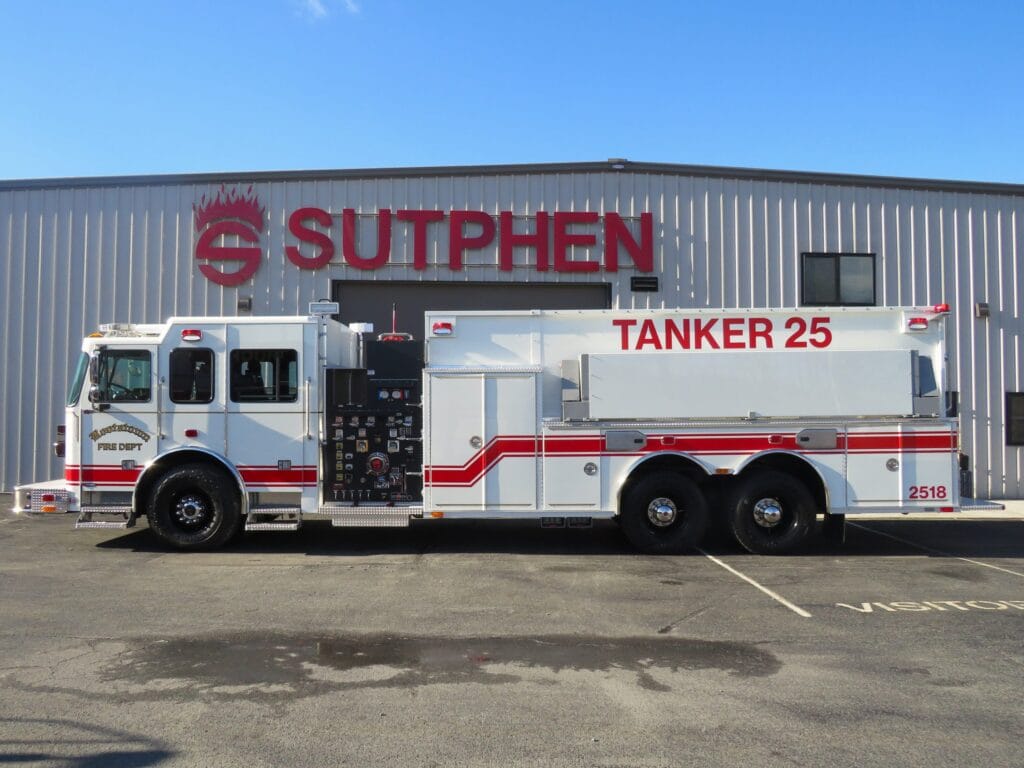

Custom Tanker – Rootstown Fire Department, OH

Dealer –  Herb Fire

WHEELBASE: 256”

TRAVEL HEIGHT: 10’ – 3 ½”

TRAVEL LENGTH: 40’ – 9”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Cab w/ a 10” Raised Roof

• Four-Door, Five-Person Cab
• 10” Double Frame Domex Rails (110K PSI)
• Front Axle and Suspension 24,000 lbs w/ (4) 56” Leafs
• Rear Axle and Suspension 48,000 lbs
• Engine: Cummins X 12, 525HP
• Alternator: C.E. Niehoff, 360 AMP
• Transmission: Allison Gen 6, EVS4000

PUMP:                 Waterous

• CSU-1500 GPM, Single Stage Pump
• Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Valve 2 ½” Pipe Left Rear, (1) 3” Deck Gun
• Crosslays: (2) 2” Valve-Piping w/ 1 ½” Swivel
• 3000-Gallon Water Tank

BODY:                  Sutphen

• 3/16” Extruded Aluminum
• Hinged Compartment Door
• Nearly 200 cu ft. Total Compartment Space
• Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
• Body: TA-04 Tanker 56/53 /High/Low

ADDITIONAL EQUIPMENT:

• 24” Polished Stainless Steel, Bumper Extension
• Federal Q2B Siren, Grille Mount
• Roto-Ray, LED Warning Light
• FRC Spectra Tele Lights
• Whelen L31 Beacons
• Whelen Freedom IV 21” LED Light Bars
• FRC Spectra LED Brow Light

MONITOR:

• Akron 3426 Deck Pipe w/ 1 ½” Tip & Stream Shaper
