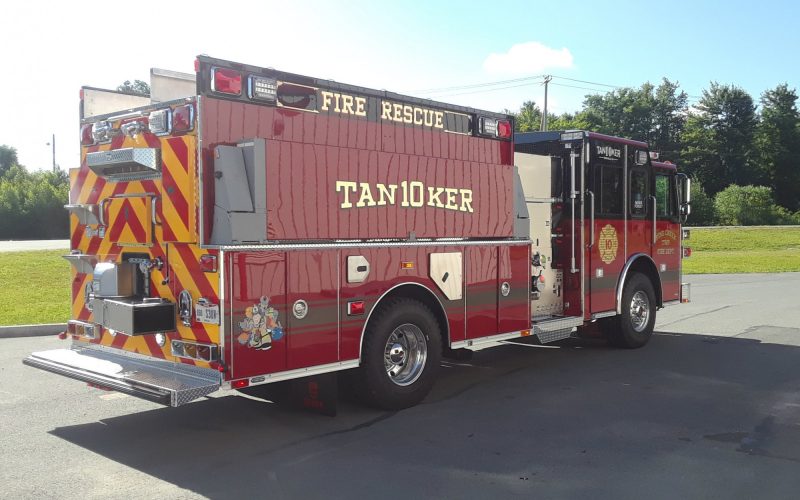

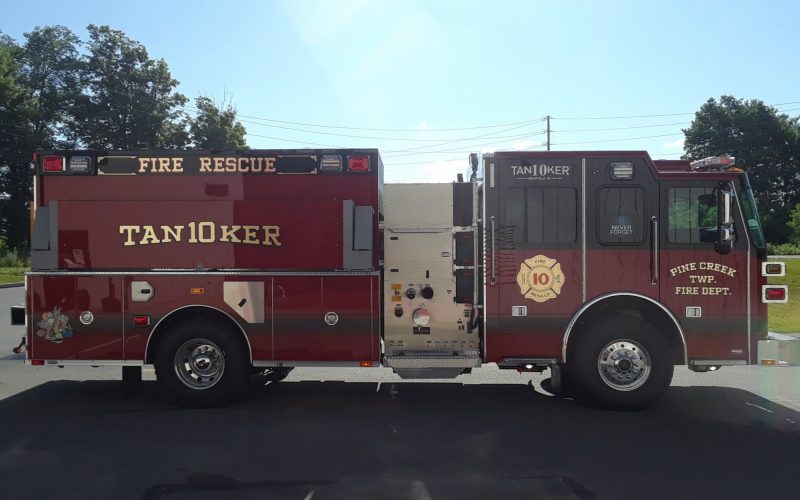

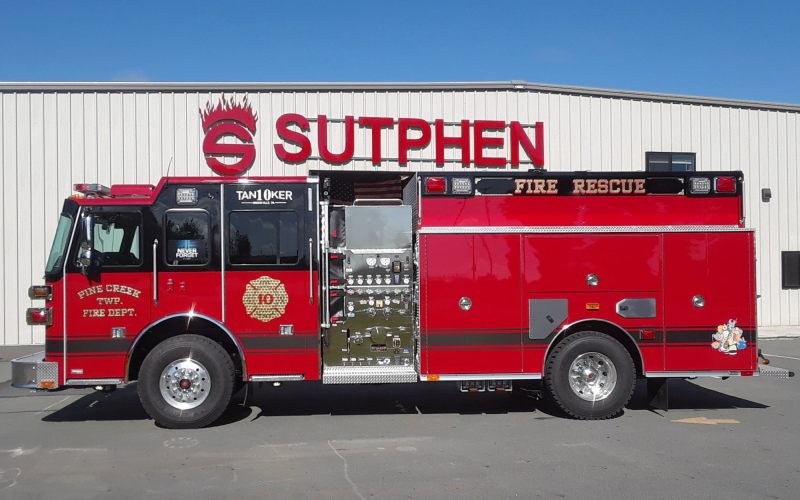

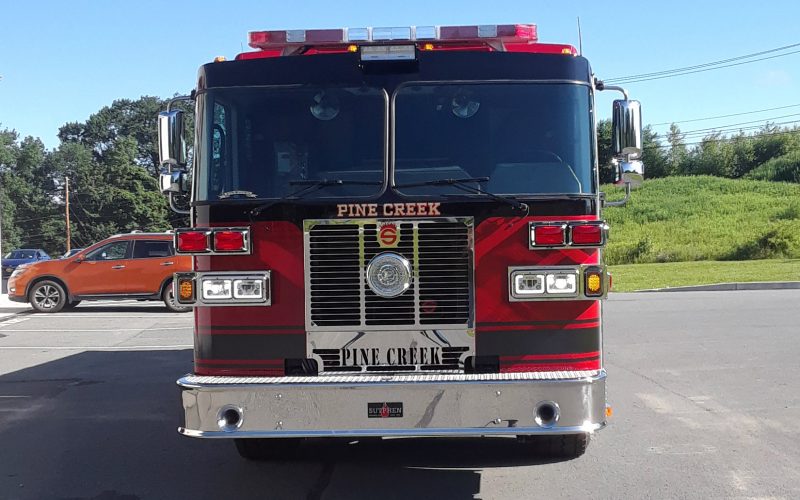

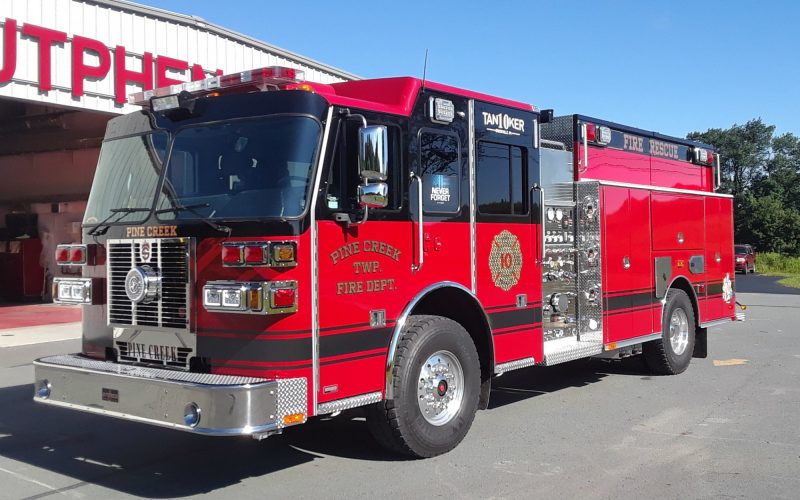

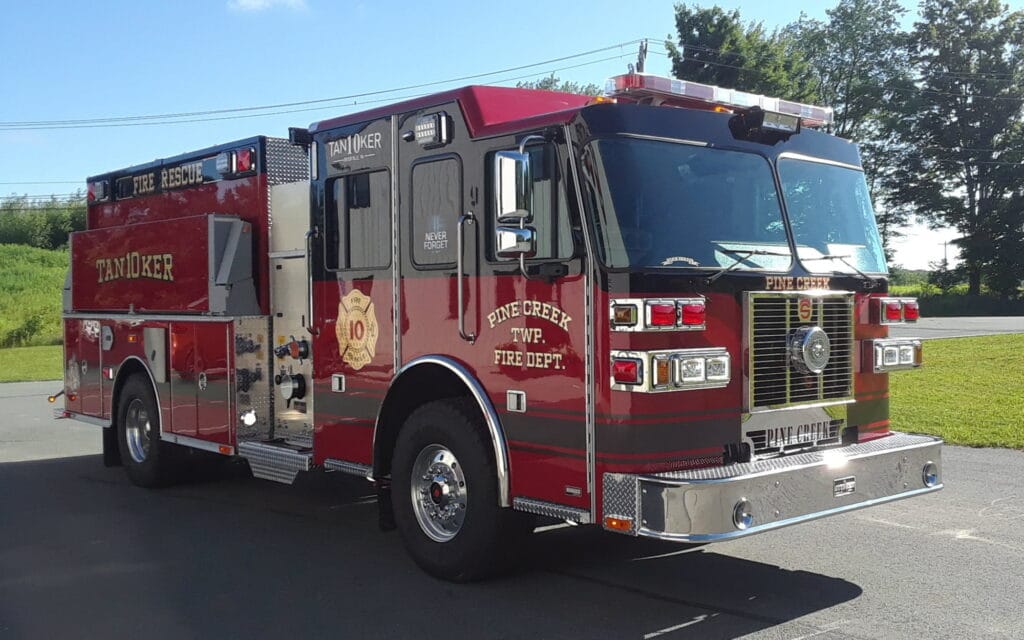

Custom Tanker – Pine Creek Fire Department, PA

Sutphen Corporation – HS #6603

Dealer – FAST of the Allegheny Mountains

WHEELBASE: 192”

TRAVEL HEIGHT: 10’

TRAVEL LENGTH: 30’ – 11”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

• Four-Door, Six-Person Cab
• 10” Double Frame Rails (50K PSI)
• Front Axle and Suspension 23,000 lbs
• Rear Axle and Suspension 35,000 lbs
• Engine: Cummins X 12, 500 HP
• Alternator: Leece Neville, 320 AMP
• Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

• QMAX-XS-1,500 GPM, Single Stage Pump
• Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Pipe to Right Rear
• Crosslay: (1) 2 ½”
• Speedlay: (2) 1 ½” w/ Lift-Out Tray
• 2,000-Gallon Water Tank

BODY:                  Sutphen

• Hinged Aluminum Compartment Doors
• 50 Cu. Ft. Compartment Space
• Alco-Lite Ladder Package (24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
• Body: TA-01 Tanker 56/53 / High/Low – Ladder Chute

ADDITIONAL EQUIPMENT:

• 12” Polished Stainless-Steel Bumper
• Federal Q2B Siren, Grille Mount
• Camera System: Voyager 3
• Zico Electric/Hydraulic Rack, Portable Tank Storage
• Whelen 72” Freedom Lightbar
• Whelen PFP2 Brow Light
• HiViz Guardian Scene Light (8)
• Whelen 900 Warning Lights
• Whelen 600 Warning Lights
• Whelen Tele Lights (2)
