Delivery Date:
08/31/2019
Department Name:
Manchaca Fire Rescue
Department City / State:
Manchaca, TX
Truck Type:

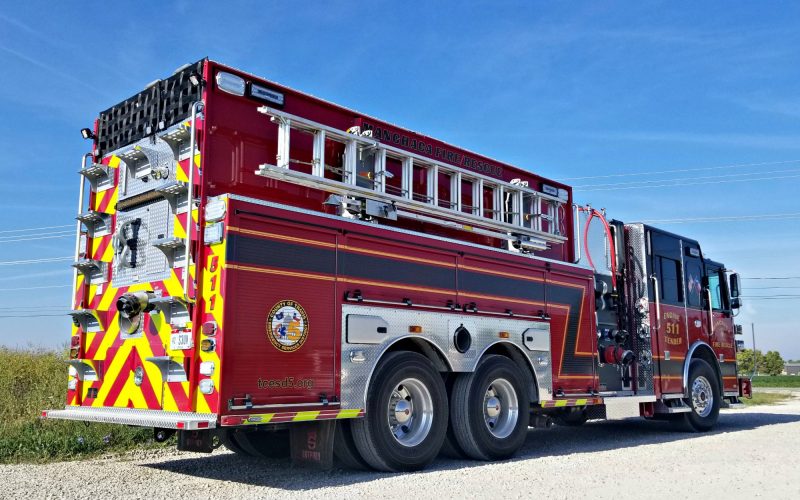

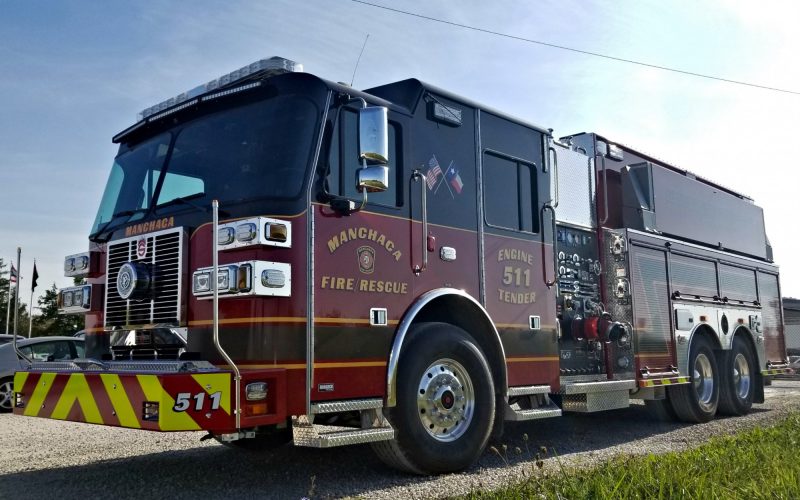

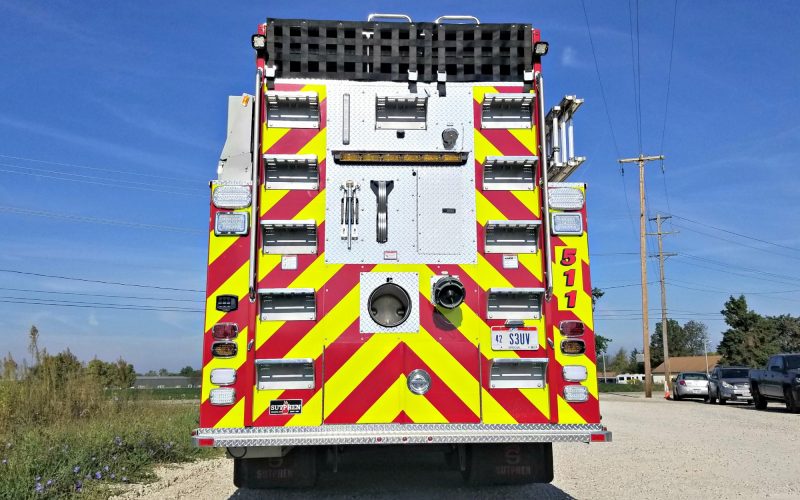

Sutphen Corporation – HS #6311
WHEEL BASE: 223”
TRAVEL HEIGHT: 11’ – 2”
TRAVEL LENGTH: 35’ – 5”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Five-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 50,000 lbs
- Engine: Cummins X 12, 500 HP
- Alternator: Delco-Remy, 420 AMP
- Transmission: Allison Gen 5, EVS4000

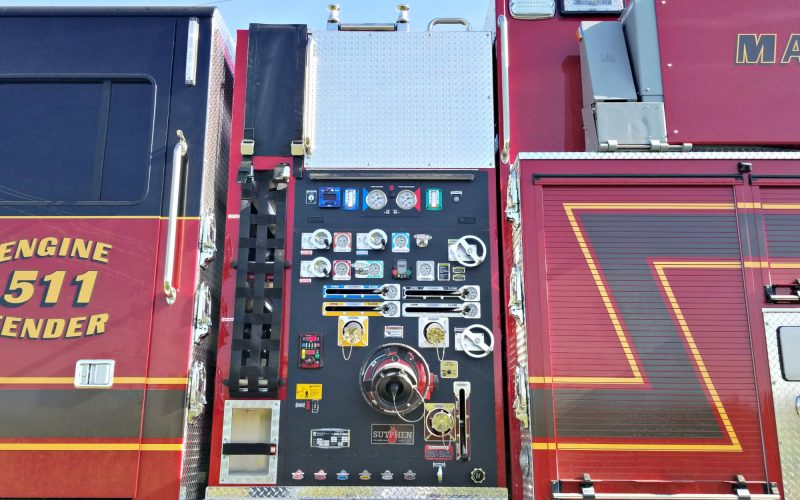

PUMP: Hale
- CSU-1500 GPM, Single Stage Pump

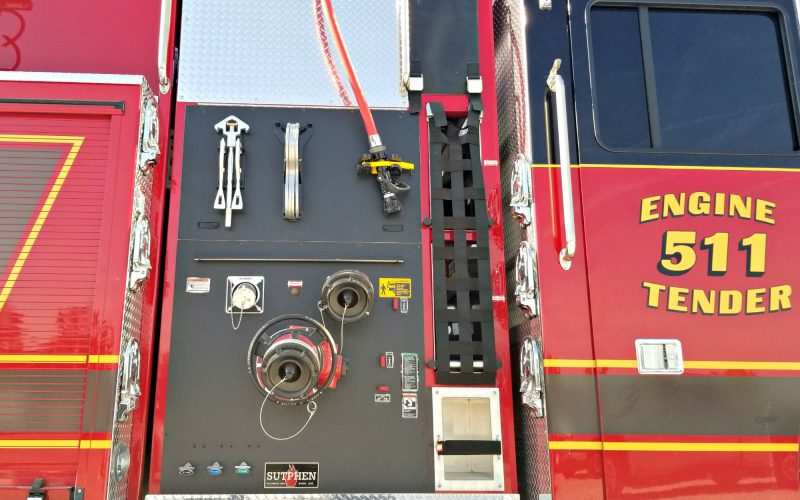

- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Valve 3” Pipe to Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Speedlays: (2) 1 ½” Speedlays with Liftout Tray and (1) 2 ½” Deadlay
- FoamPro 2001, 2.6 GPM
- 20-Gallon Foam Tank
- 3000-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- 139 cu. ft. Total Compartment Space
- Alco-Lite (PEL-24, 24’ 2-Section & PRL-14; 14’ Roof & 10’ Folding)
- TA-03 Tanker 40/40 High/High – Lad Rack
ADDITIONAL EQUIPMENT:
- 18” Formed Steel Channel Bumper Extension
- FRC, Inview 360, Camera System with Additional Monitor for Officer
- Federal Q2B Siren, Grille Mount
- Storage for (2) Pike Poles (1) 6’ and (1) 8’
- Booster Reel w/ 200’ of 1” Hose, Nozzle and Mount
- Firetech 3-Piece LED Brow Light
- Whelen Freedom IV LED Lightbar
- WHelen M6 Amber LEDs
- Whelen M9 Blue LEDs
- FRC Spectra 20K Scene Lights
