Delivery Date:
01/04/2023
Department Name:
Lumberland Fire District
Department City / State:
Lumberland, NY

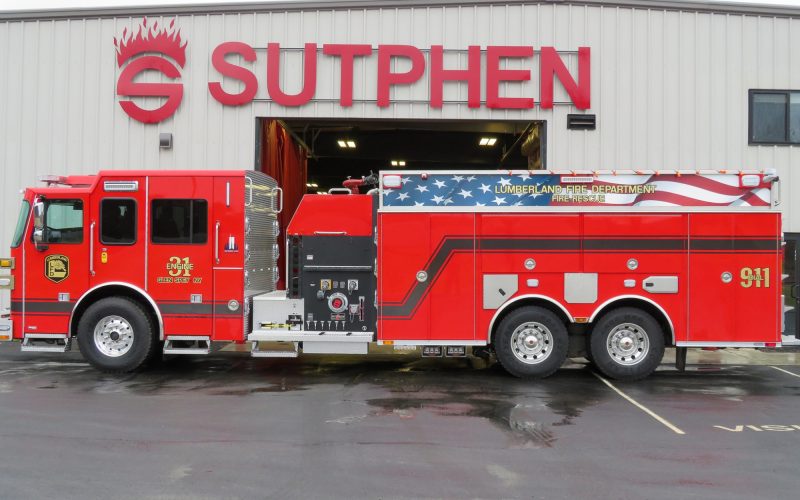

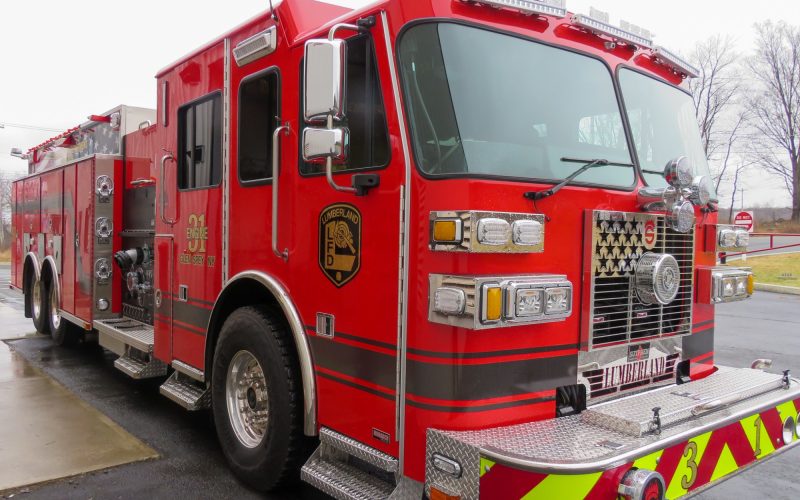

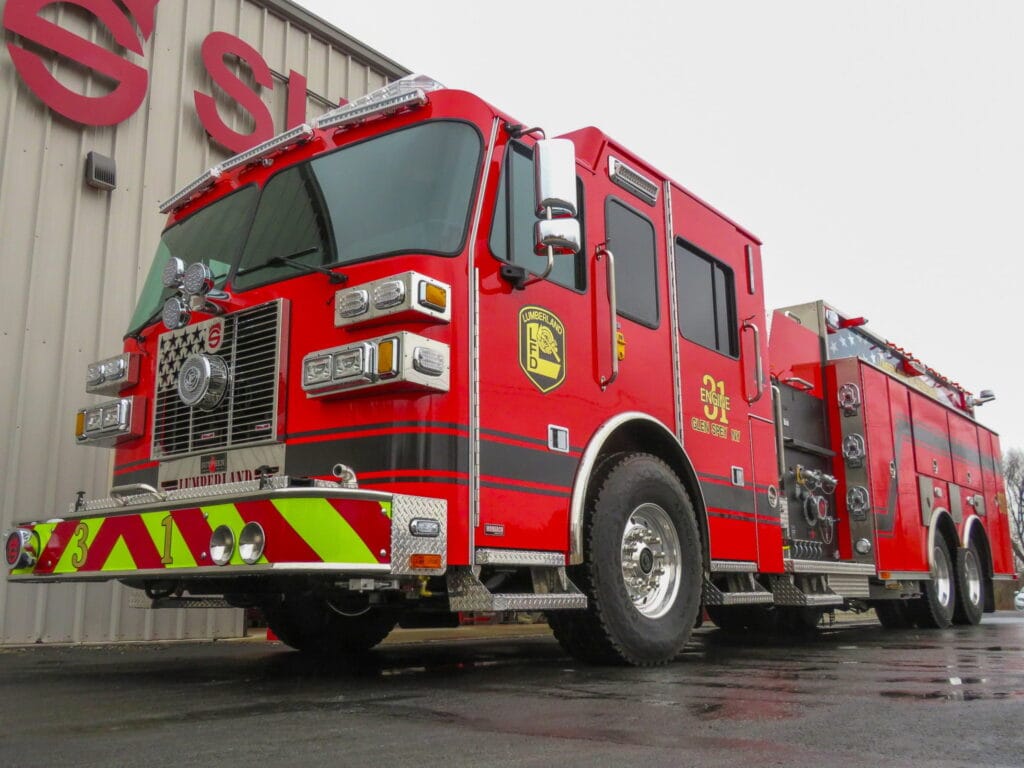

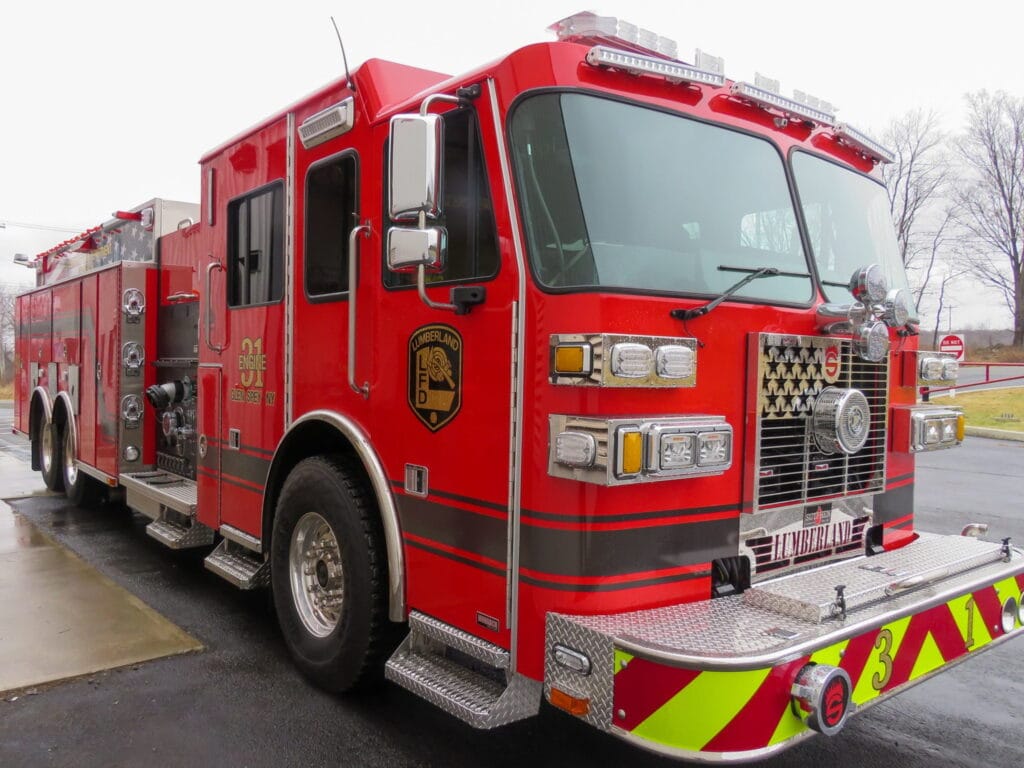

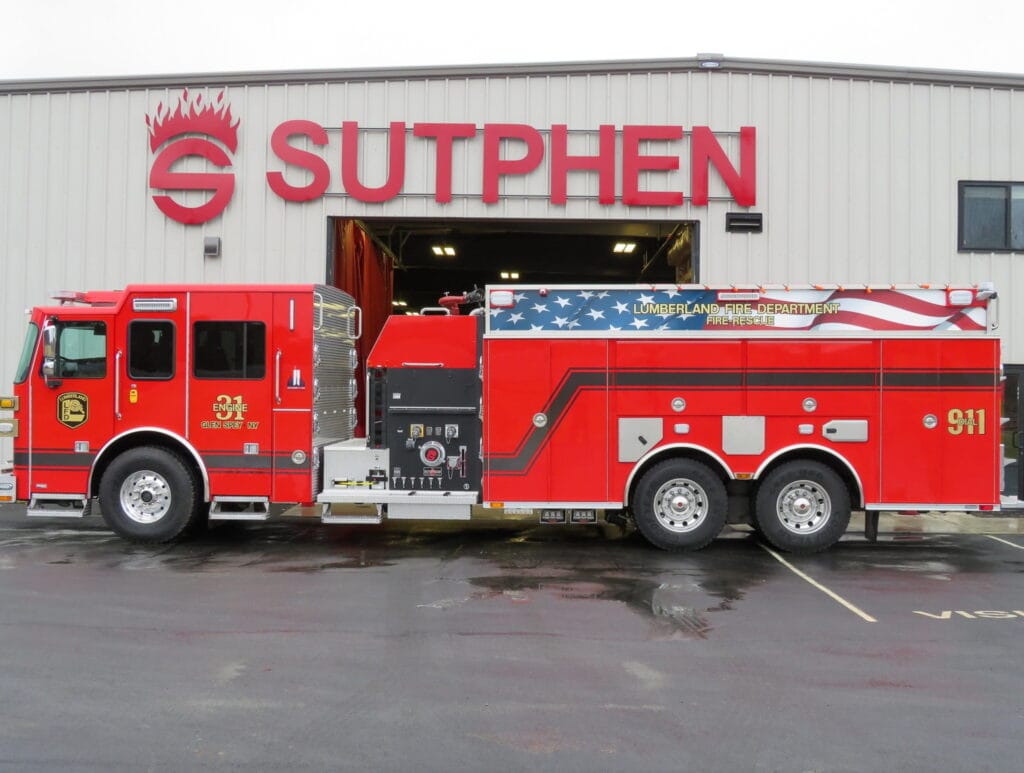

Truck Type:
Sutphen Corporation – HS #7111
Dealer – Mike Myers
WHEELBASE: 259”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 39′ – 4”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 10” Raised Roof
- Four-Door, Eight-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension: 23,000 lbs.
- Rear Axle and Suspension: 48,000 lbs.
- Engine: Cummins X 15, 600HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS4500
PUMP: Hale
- QMAX-2000 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Pipe to Right Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 2” Right/Front Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Speedlay: (2) 1 ½”
- 2,500-Gallon Water Tank
BODY: Sutphen
- Huckbolted #304 Stainless Steel
- Hinged Compartment Doors
- 206 cu. ft. Total Compartment Space
- Alco Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Body: T2-05 – Tanker 56/53 High/High – Ladder Rack
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: Brigade, Backeye 360 Camera System
- Hannay Electric Cord Reel, 100’ (2)
- Generator: 10KW Smart Power
- Roto-Ray Warning Light
- Whelen Freedom IV 72” LED Light Bar
- FireTech 3-Piece 72” LED Brow Light
- FireTech MB Scene Light
- FireTech FT-MB2.15 CPREC LED Scene Lights
