Delivery Date:
02/25/2022
Department Name:

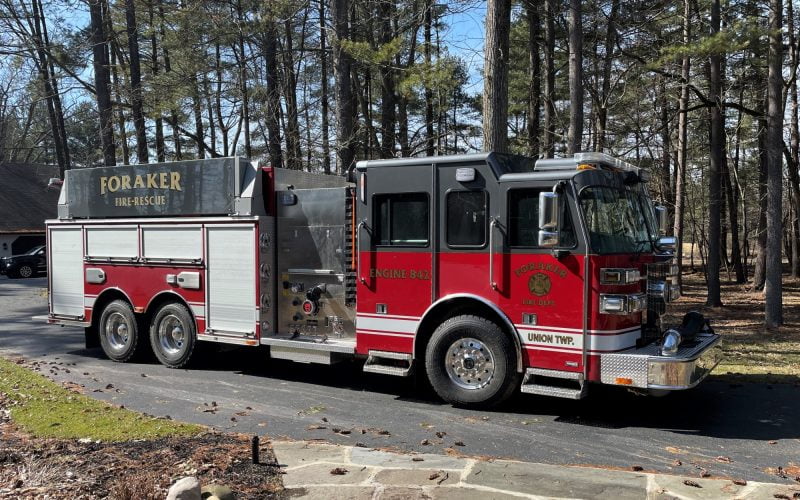

Foraker Volunteer Fire Department
Department City / State:
Foraker, IN
Truck Type:
Sutphen Corporation – HS #6994
Dealer – Herb Fire
WHEELBASE: 226”
TRAVEL HEIGHT: 10’
TRAVEL LENGTH: 37’ – 1”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 48,000 lbs
- Engine: Cummins L 9 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS 3000
PUMP: Hale
- QMAX-1500 GPM Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Speedlay: (2) 1 ½” w/ Liftout Poly Trays
- Crosslay: (1) 2 ½”
- 2,500-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-Up Compartment Doors
- Over 170 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Body: TA-05 Tanker 56/53 High/High – Ladder Rack
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Newton 10 x 10 Electric, with Swivel Dump
- FR Spectra Max Brow Light
- Whelen 72” Freedom Lightbar
- Whelen M9 Scene Lights
- Whelen 36” Traffic Advisor
- FR Spectra Tele Lights
