Delivery Date:
12/19/2019
Department Name:
Burton Fire Department
Department City / State:
Burton, OH
Truck Type:
Sutphen Corporation – HS #6211
Dealer – Herb Fire Equipment
WHEEL BASE: 192”
TRAVEL HEIGHT: 9’-8”
TRAVEL LENGTH: 31’-10 ¼”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with a Flat Roof
- Four-Door, Four-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 48,000 lbs
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000

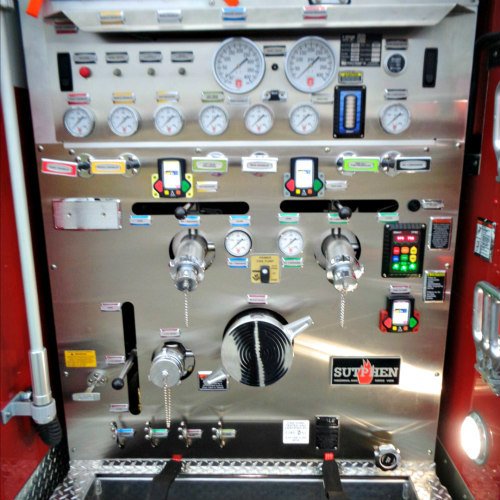

PUMP: Hale
- QMAX-1500 GPM
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 3” Deck Gun
- Monitor: Akron 3423 Apollo
- Crosslays: (2) 2” with 1 ½” Swivel and (1) 2 ½” with 2 ½” Swivel
- 2,500-Gallon Water Tank
BODY: Sutphen
- Huck Bolted #304 Stainless Steel
- Hinged Compartment Doors
- 69 cu. ft. Total Compartment Space
- Duo-Safety 900A (28’ 2-Section & 775A 16’ Roof & 10’ Folding)
OPTIONAL EQUIPMENT:
- Ziamatic Quic-Lift Electric Extend-Down Ladder Rack
- Federal Q2B Siren
- Safety Vision SV-CLCD0-70 Camera System
- Pike Pole Storage Through Tank
- Whelen 72” Freedom Rota Beam Lightbar
- 18” Bumper Extension
