Delivery Date:
08/15/2023
Department Name:

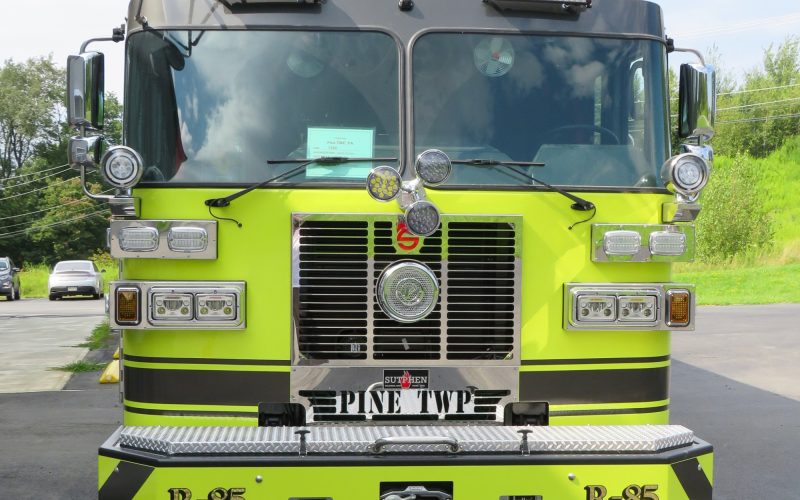

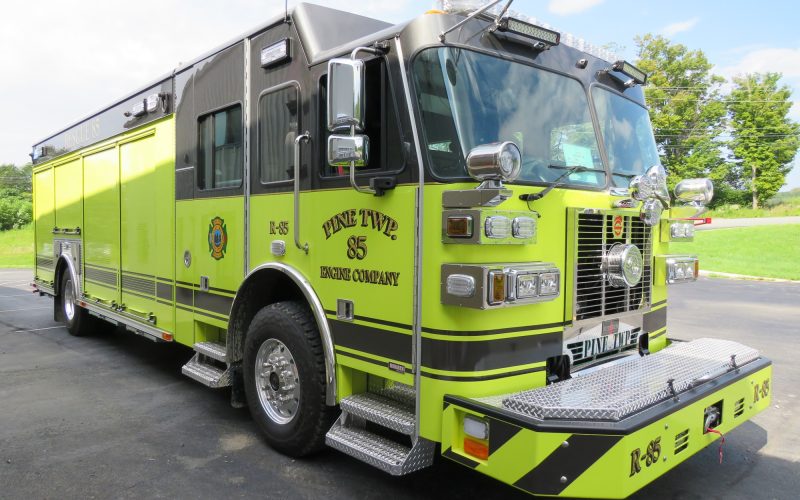

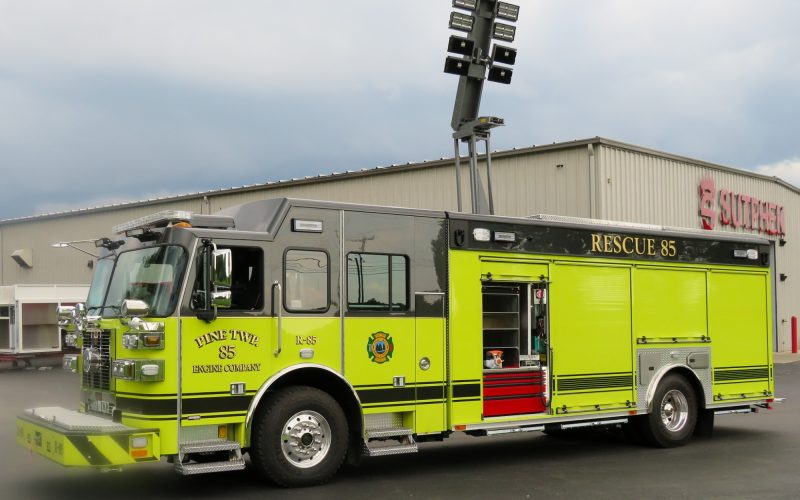

Pine Township Engine Company
Department City / State:
Grove City, PA
Truck Type:
Dealer – FAST of the Allegheny Mountains
WHEELBASE: 235”
TRAVEL HEIGHT: 10’ – 2 ½”
TRAVEL LENGTH: 36′ – 10”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 15” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 27,000 lbs.
- Engine: Cummins X 12, 500HP
- Alternator: Delco Remy 55SI 420 AMP
- Transmission: Allison Gen 5, EVS4000
PUMP: No Pump, No Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- Alco-Lite Ladder Package: PEL-20 20’ 2-Section & DRL-12 12’ Double Hook Roof & 10’ Folding & PRL-07 7’ Roof Custom Ladder (2)
- Over 815 cu. ft. Total Compartment Space
- Body: RA-20 20’ Aluminum, Walk Around, Single Axle, w/ Double Hatch Compartments
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview 360 HD w/ Built-In DVR
- Hannay Electric Cord Reel, 150’ (2)
- Portable Winch, 8,000 lb.
- Roto-Ray Warning Light
- Whelen 72” Freedom Lightbar
- FireTech Double Stack Mini Brow Lights
- FR Spectra Scene Lights
- FireTech BG2 Traffic/Scene
