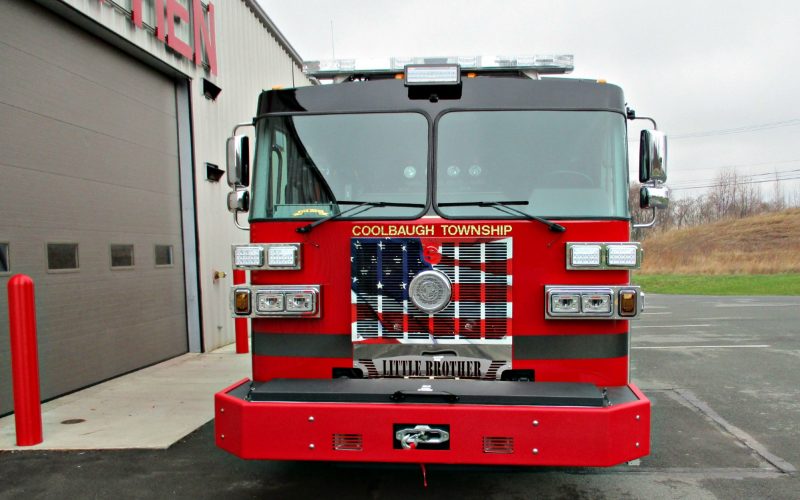

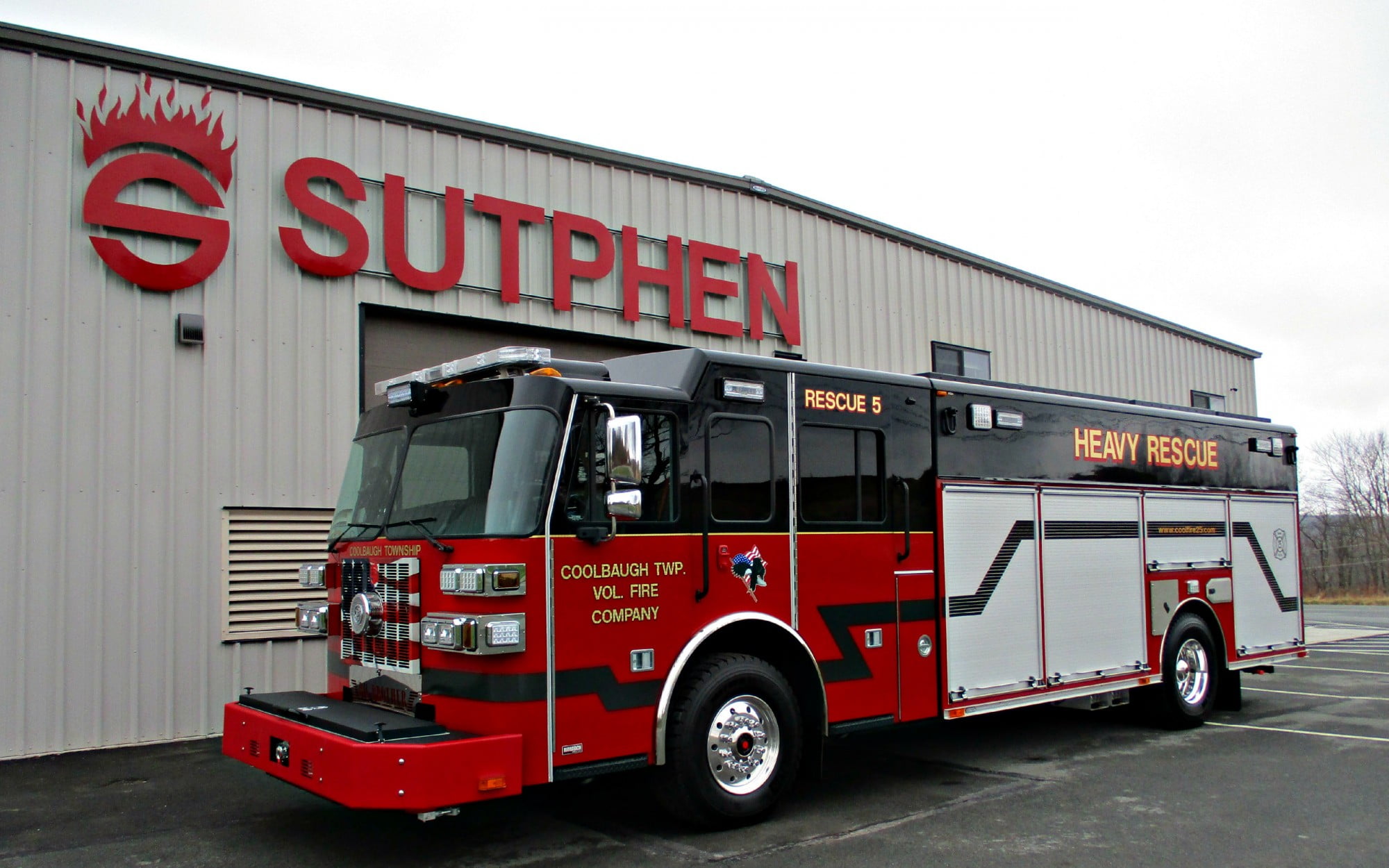

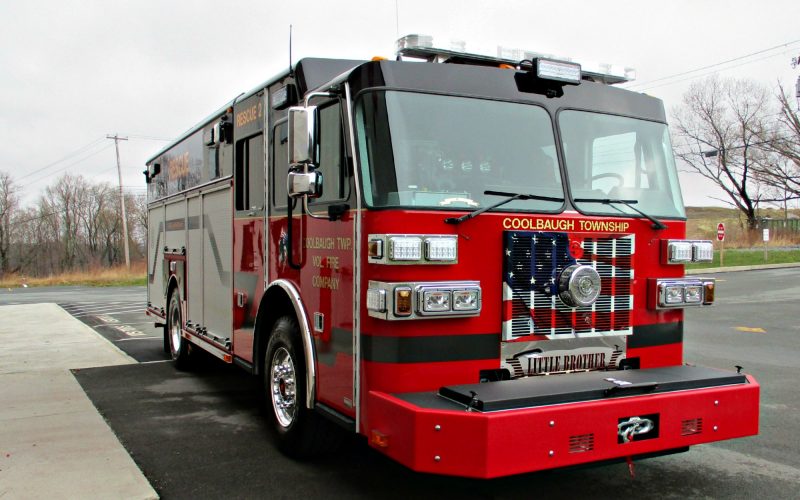

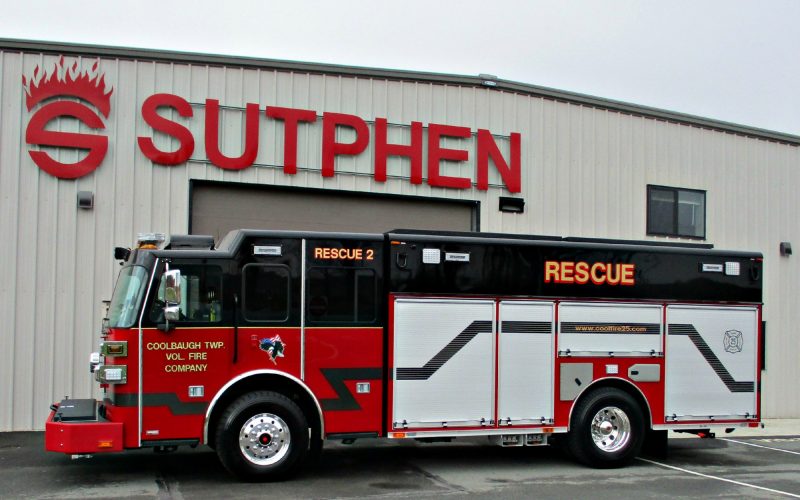

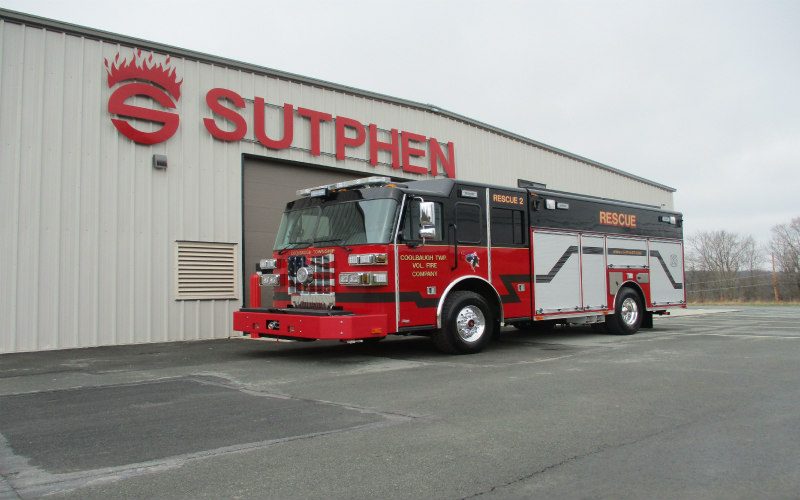

Sutphen Corporation – HS #6559
Dealer – Signal 1 Fire Equipment, Inc.
WHEELBASE: 180”
TRAVEL HEIGHT: 9’ – 11”
TRAVEL LENGTH: 31’ – 3 ¼”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 56” Cab w/ 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Niehoff, 360 AMP
- Transmission: Allison Gen 5, EVS3000
BODY: Sutphen
- AMDOR Roll-Up Compartment Doors
- Over 620 cu. ft. Total Compartment Space
- Body: PA-17 43/53
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel
- Federal Q2B Siren, Grille Mount
- Camera: FRC, Inview 360
- Onan Commercial 15KW Generator
- 4 bottle compartments
- FRC Spectra 20K LED Scene Lights
- Whelen Freedom IV 72” NFPH Lightbar
- Whelen C9 Warning Lights
- Whelen C6 Warning Lights
