Delivery Date:
02/23/2021
Department Name:
Newton County Fire Department
Department City / State:
Covington, GA
Truck Type:
Sutphen Corporation – HS #6685-86
Dealer – Williams Fire Apparatus
WHEELBASE: 199”
TRAVEL HEIGHT: 9’ – 6”
TRAVEL LENGTH: 32’ – 9”

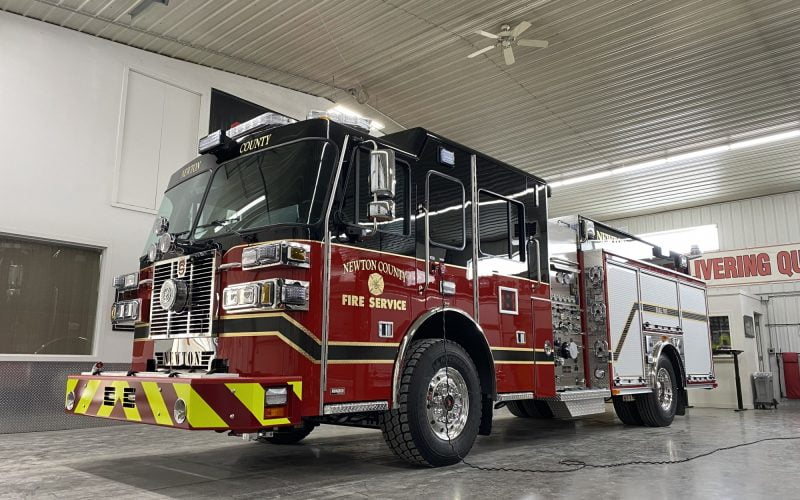

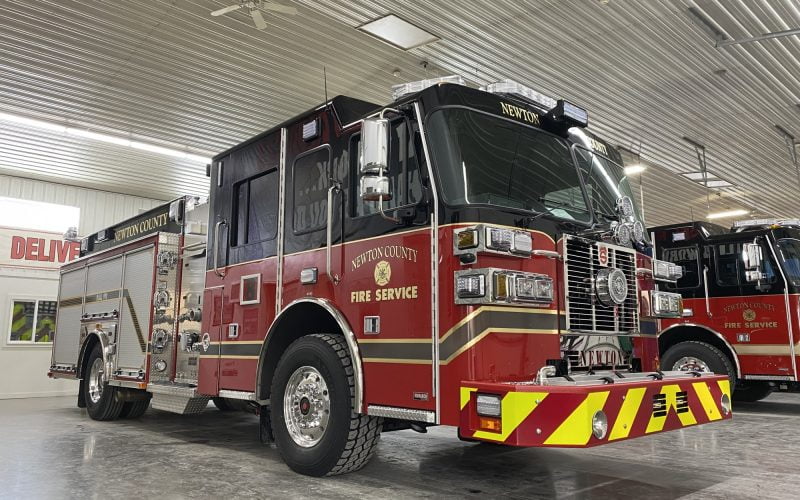

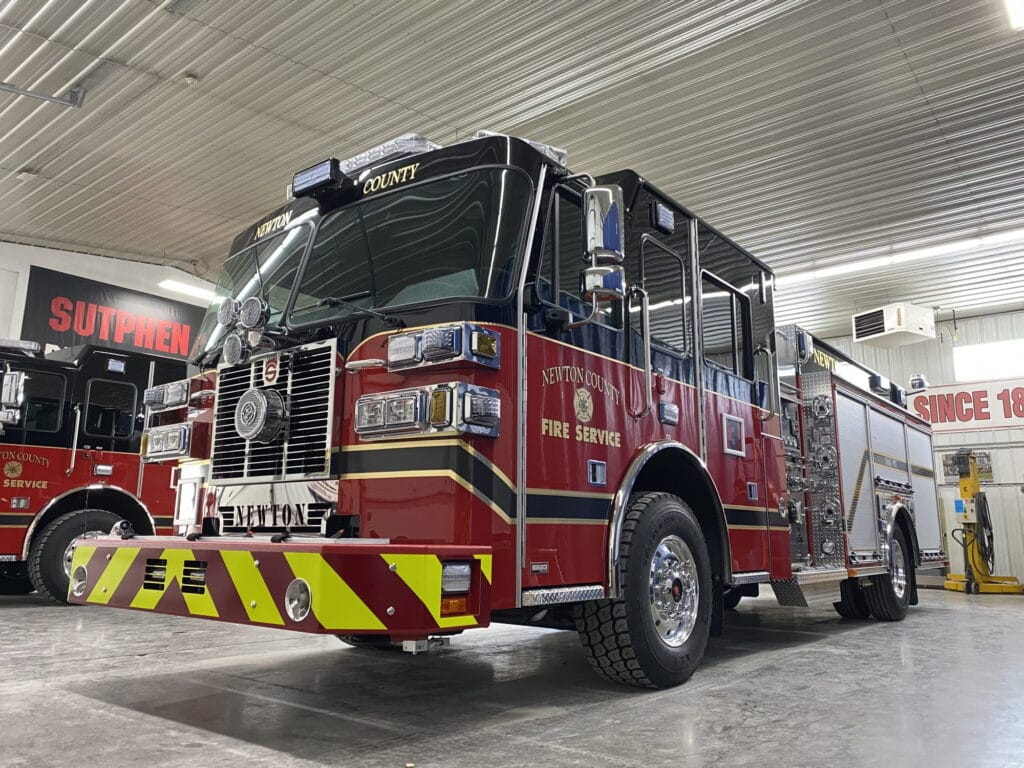

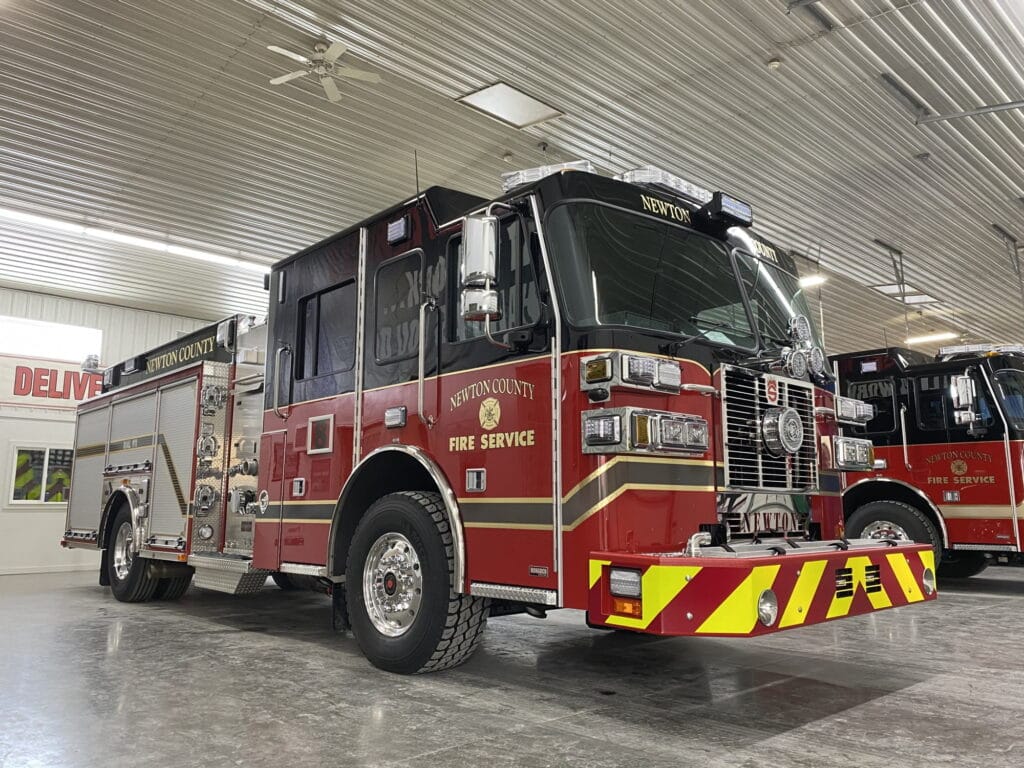

CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails Single axle – (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins X 12, 500 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS4000

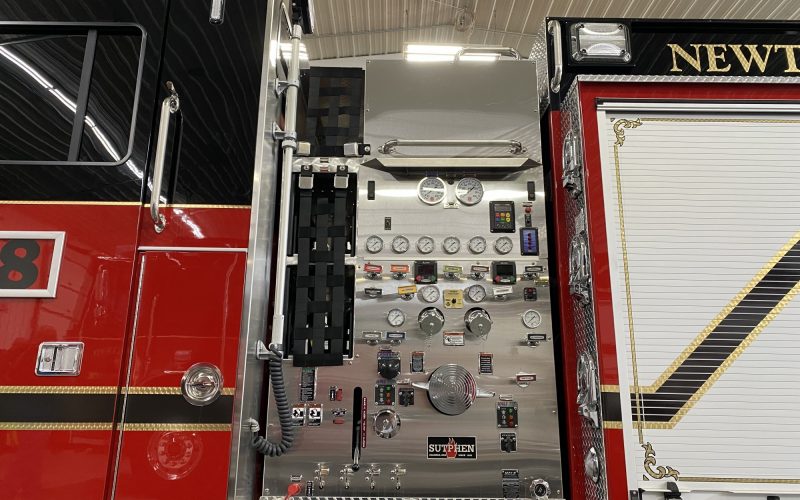

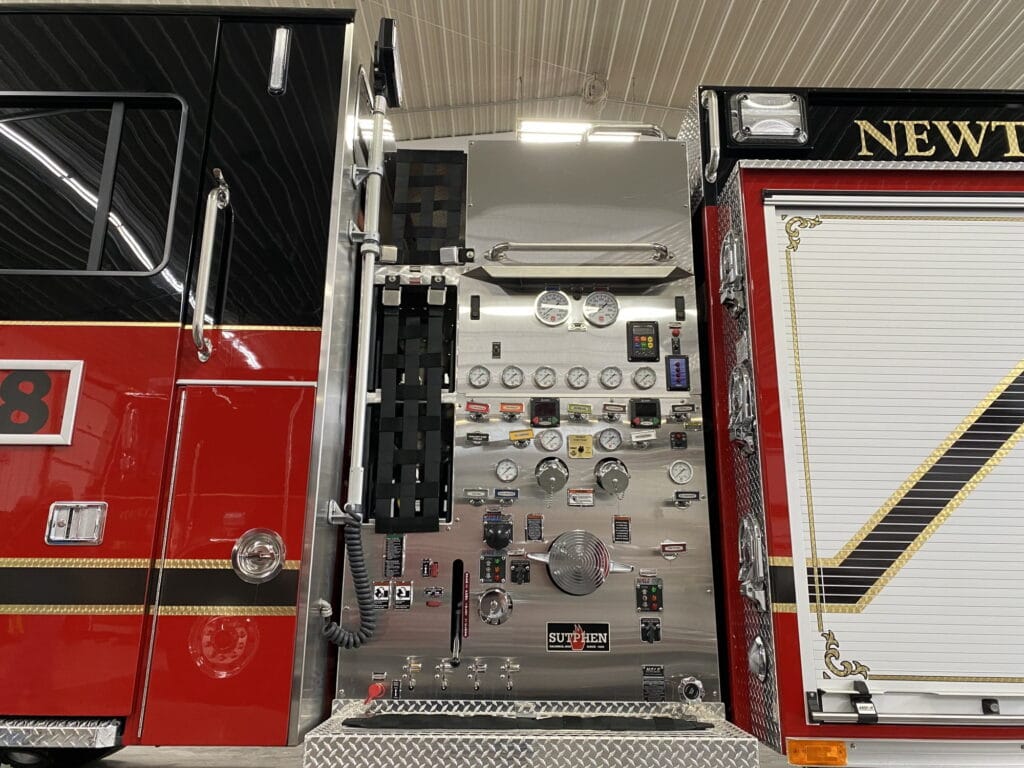

PUMP: Hale
- XS QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (2) 2 ½” Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (1) 2 ½”
- Speedlay: (2) 1 ½” w/ Liftout Poly Trays
- 750-Gallon Water Tank

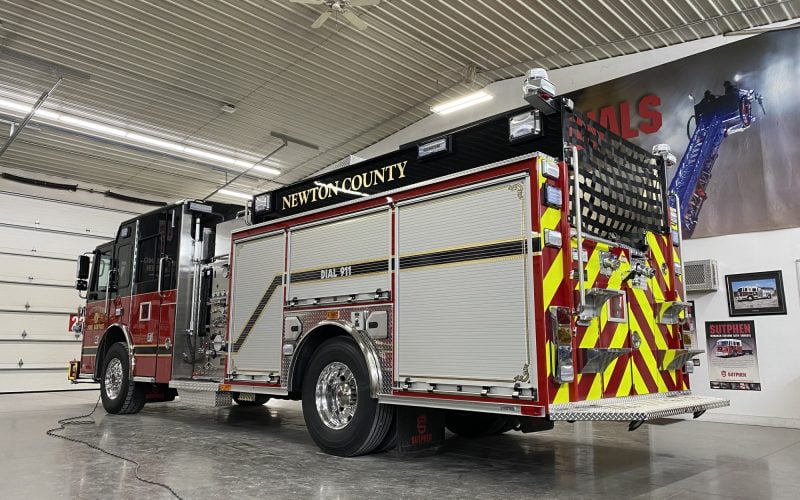

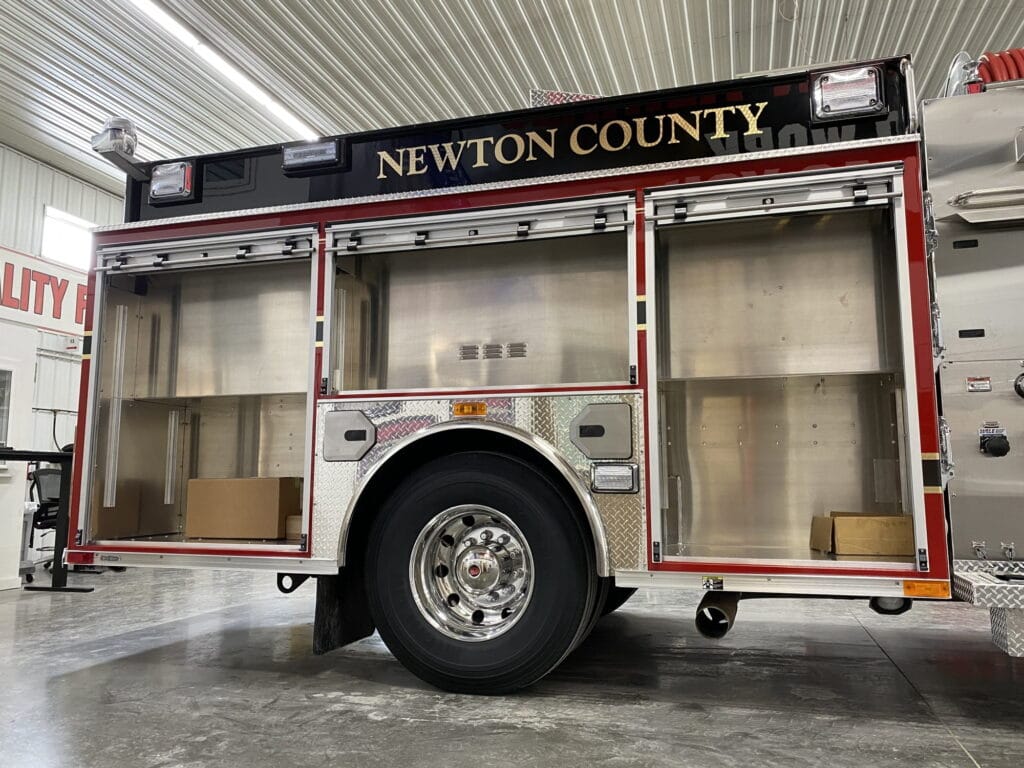

BODY: Sutphen
- 3/16” Extruded Aluminum

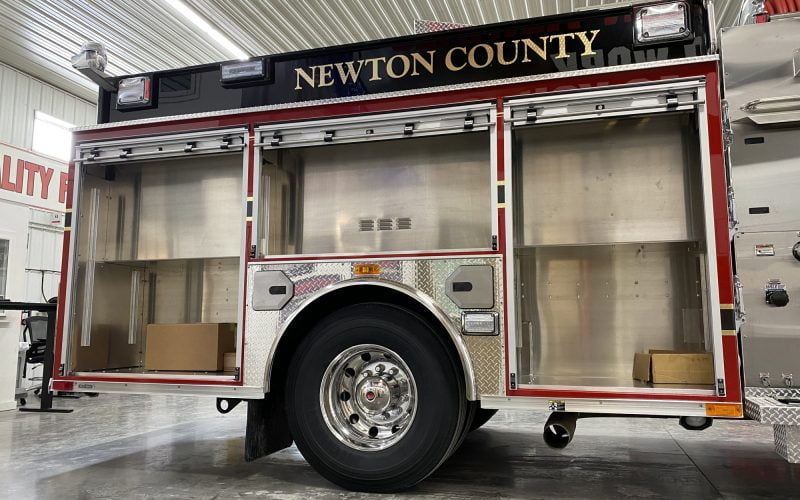

- AMDOR Roll-up Satin Finish Compartment Doors
- 5 Cubic Feet of storage space
- Ladder Chute: 24’ 2-Sect Ladder, 14’ Roof Ladder, 10’ Folding Ladder, (3) Pike Pole Storage
- Body: PA-12 Body
ADDITIONAL EQUIPMENT:
- 18” Painted Formed Steel Channel
- Federal Q2B Siren, Grille Mount
- Camera System: FRC Inview Trueview Two Cameras
- Whelen Freedom IV 12 Module 44.5” LED Lightbar
- FR Spectra 12V Brow
- FR Spectra 900 12V Scene
