Delivery Date:
01/19/2022
Department Name:
Lexington County Fire Services
Department City / State:
Lexington, SC

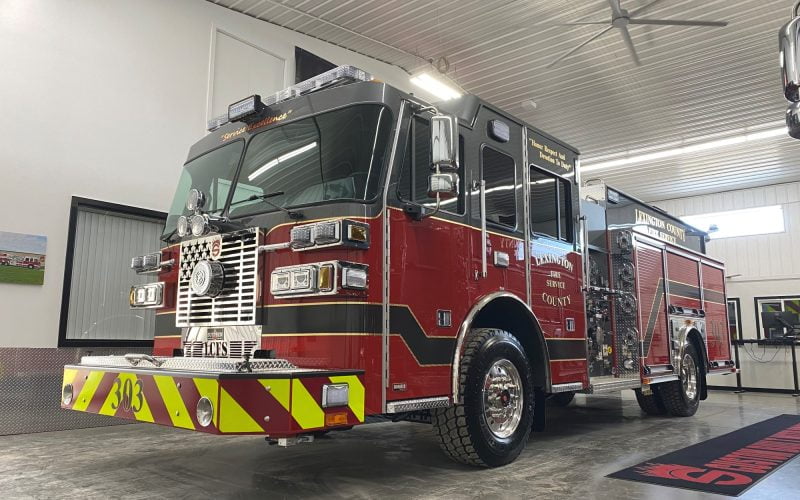

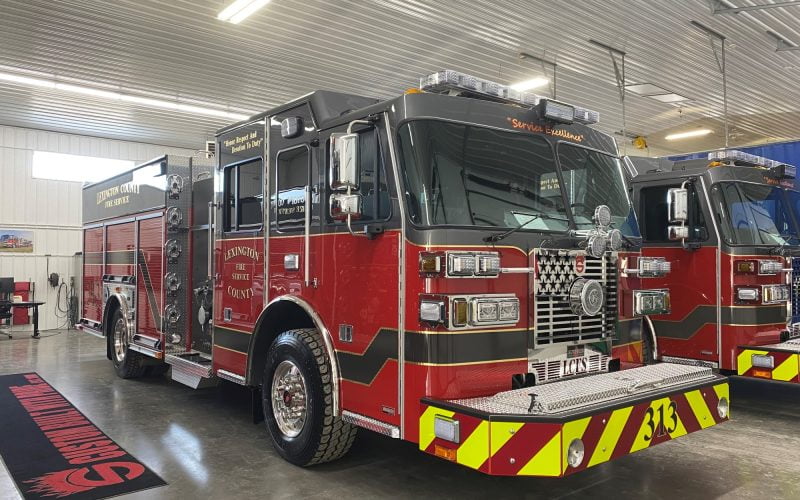

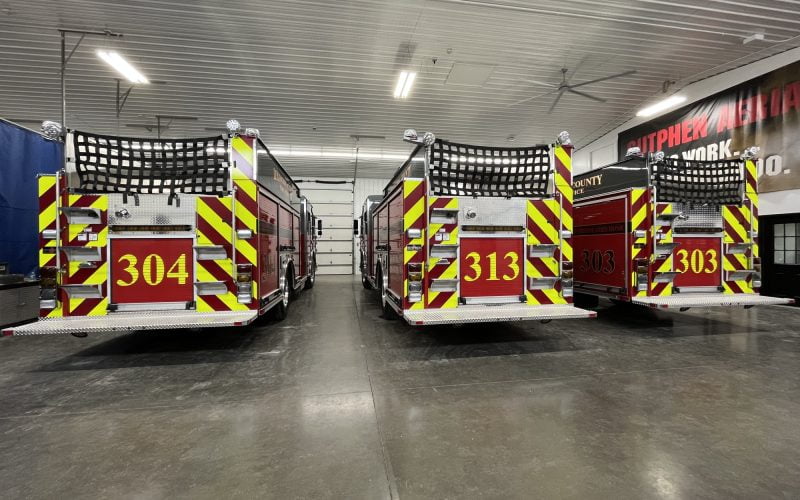

Truck Type:
Sutphen Corporation – HS #6898-6901
Dealer – Williams Fire
WHEELBASE: 190.5”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 32’ – 6 ½”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS 3000

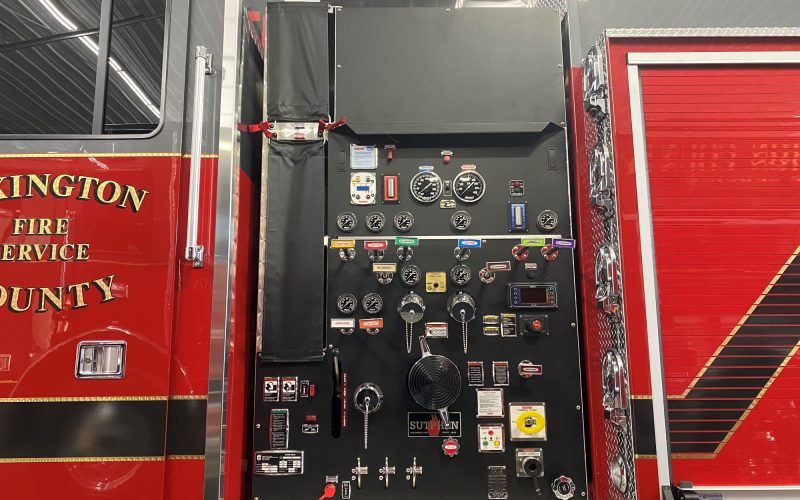

PUMP: Hale
- QMAX 1500 GPM Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- Speedlays: (2) 2” w/ 1 ½” Swivels and Poly Lift-Out Trays
- Crosslay: (1) 2 ½“
- 1,000 Gallon Water Tank
- 20 Gallon Foam Tank
- Foam System, Waterous Aquis 3
BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-up Compartment Doors, Painted
- Over 233 cu. ft. Total Compartment Space
- Duo-Safety Ladder package: 900A 24’ 2 Section and 775A 14’ Roof & 10’ Folding
- Body: S2 – Aluminum 43/53 Ladder Chute
ADDITIONAL EQUIPMENT:
- 24” Formed Steel, Painted Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Two Cameras
- FRC Spectra 12V LED Brow Light
- Whelen Freedom 72” LED Lightbar
- Whelen M9V Red LEDs Scene
- Whelen LED, TAL65 36” Traffic Advisor
