Delivery Date:
08/01/2024
Department Name:

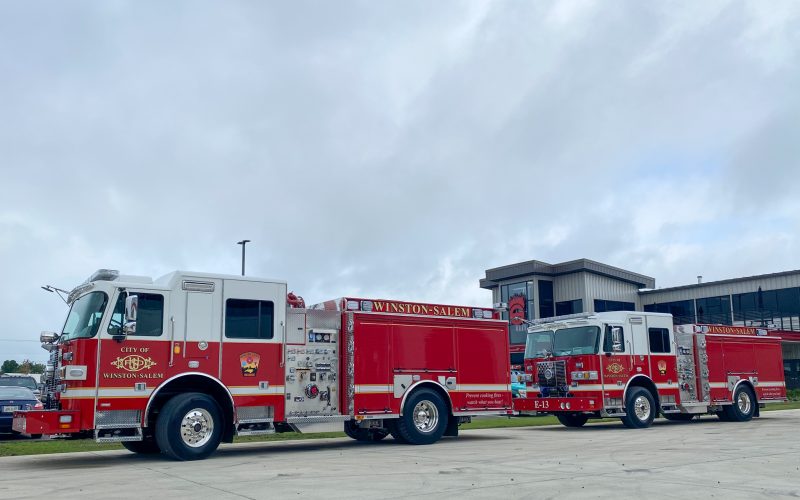

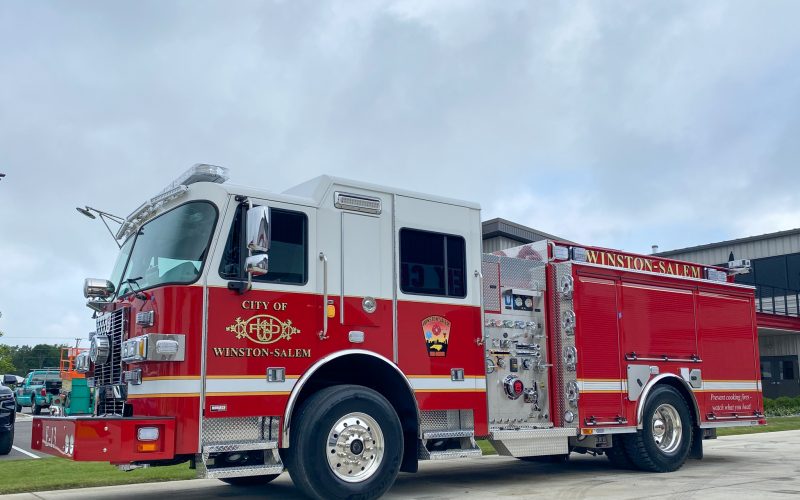

Winston-Salem Fire Department
Department City / State:
Winston-Salem, NC

Dealer –  First Choice Fire and Safety

WHEELBASE: 176 ½”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 31′ – 0 ½”

CHASSIS:           Sutphen Monarch Heavy-Duty Custom Chassis, 62” cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension: 20,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins X 12, 455 HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharge: (2) 2 ½” Left, (1) 4” Right, (1) 3” Right, (3) 2 ½” Pipe to Left Rear, (2) 2 ½” Pipe to Right Rear, (1) 1 ½” Front Bumper, 3” Deck Gun
  • 500-Gallon Water Tank

BODY:                 Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 165 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Package: 900A 24’ 2-Sec & 775A 14’ Roof & 10’ Folding
  • Body: PA-11 Res 31/53 Low Right, 12” D Upper Compt., Chrome Ladder Brackets, No R2 Compt., Modified R1/R3

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Two Cameras
  • Mars TB8-P Pedestal Mount
  • Whelen Freedom IV 81” LED Lightbar
  • FireTech 3-Piece 12V Brow
  • FireTech 12V Scene LED
  • Whelen M9 Red LED
  • FRC 12V Spectra LED Brow Light
