Delivery Date:
12/14/2021
Department Name:
Whitesville VFD
Department City / State:
Whitesville, WV
Truck Type:

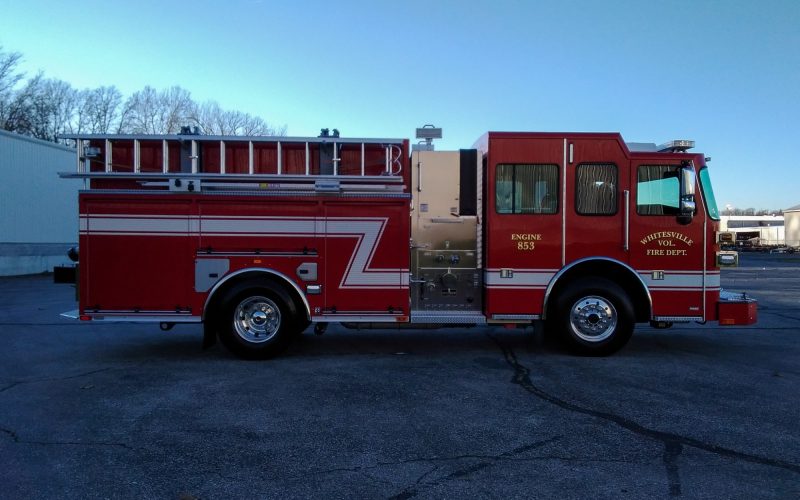

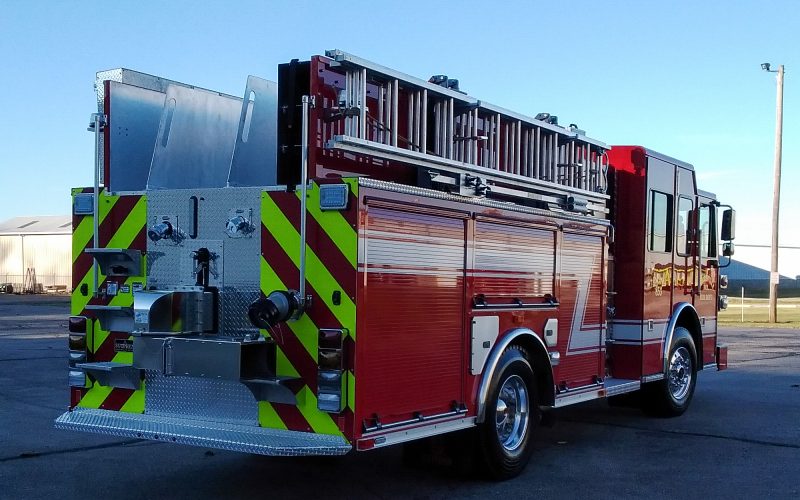

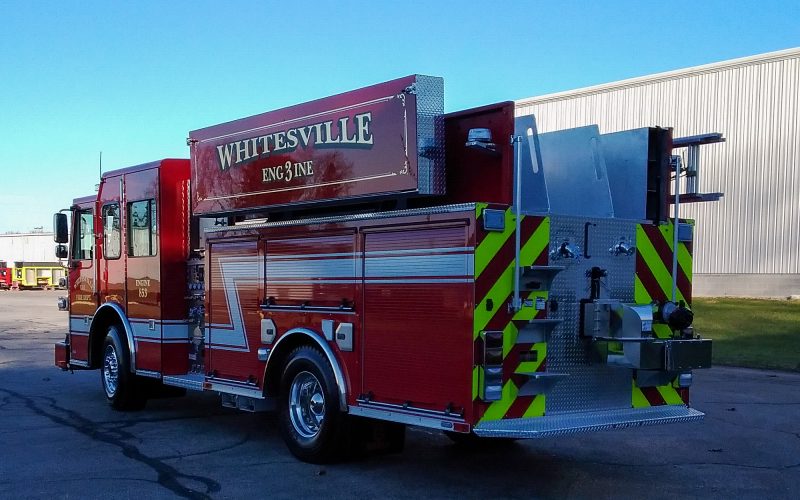

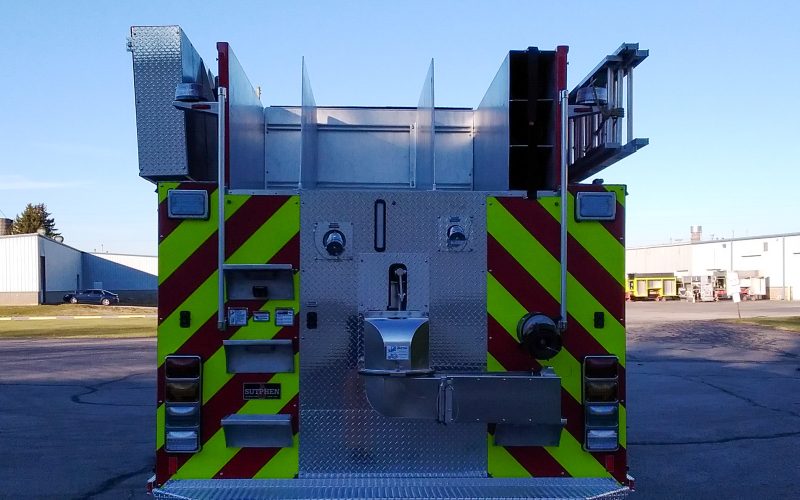

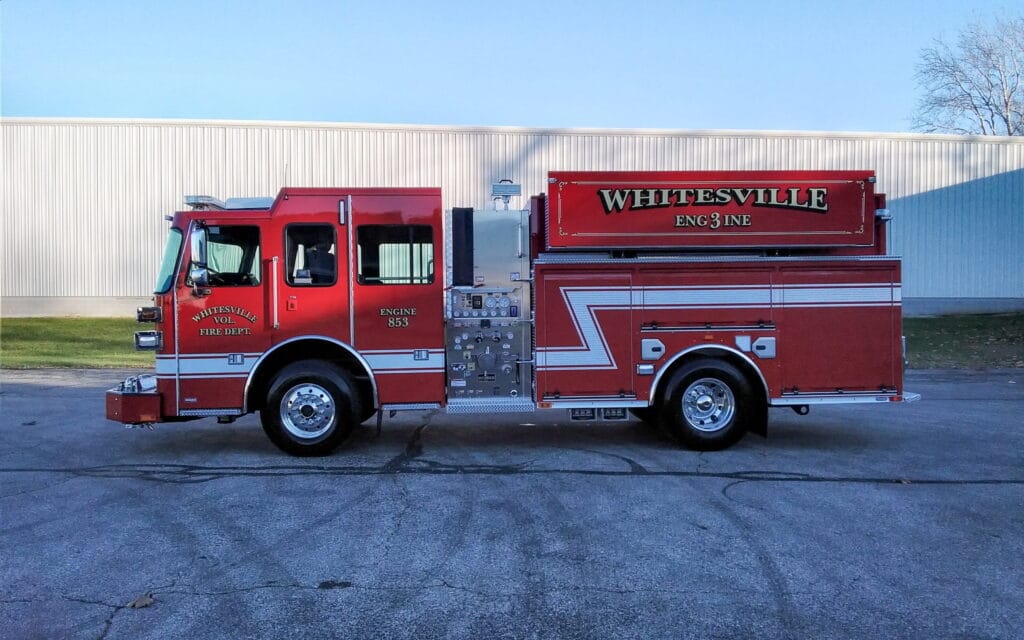

Sutphen Corporation – HS #6962
Dealer – Heritage Fire Equipment
WHEELBASE: 172”
TRAVEL HEIGHT: 10’
TRAVEL LENGTH: 30’ – 3”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with a 10 ½” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 31,000 lbs
- Engine: Cummins L 9 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS 3000
PUMP: Hale
- QMAX XS-1500 GPM Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½“ Front Bumper, (1) 3” Deck Gun
- Crosslays: (2) 2” with 1 ½” Swivel
- 1,800-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- 158 cu. ft. Total Compartment Space
- Duo Safety Ladder Package: 24’ 2-Section, 14’ Roof & 10’ Folding Ladder
- Body: G7 – Alum 40/51 Electric Ladder Rack
ADDITIONAL EQUIPMENT:
- 18” Formed Steel Channel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview TrueView, Single Camera
- Ziamatic Quic-Lift Electric Ladder Rack
- FireTech 3-Piece 72” Brow Light
- Whelen Freedom LED Lightbar
- Fire Research Telescopic Lights
- Spectra 900 LED Scene Lights
