Delivery Date:
04/20/2022
Department Name:

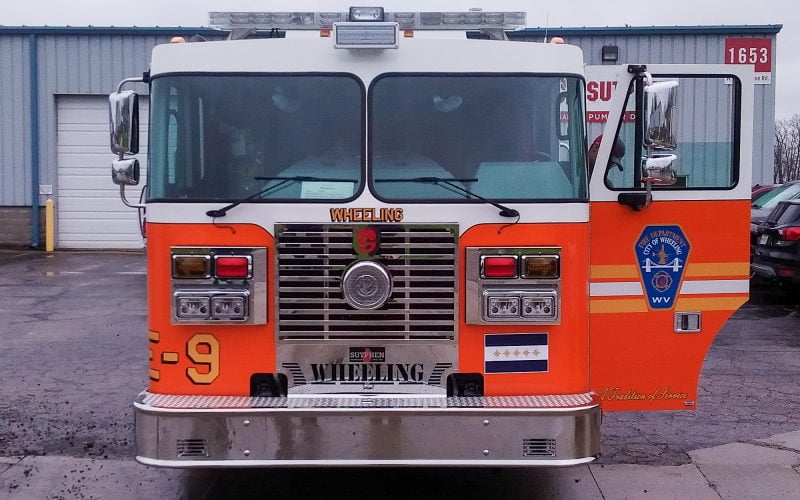

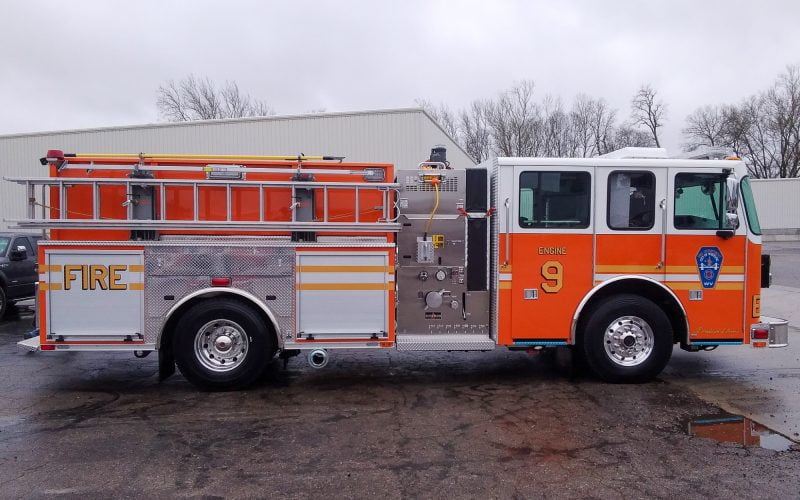

Wheeling Fire Department
Department City / State:
Wheeling, WV

Sutphen Corporation – HS #7018

Dealer – F.A.S.T. of the Allegheny Mountains

WHEELBASE: 185”

TRAVEL HEIGHT: 10’

TRAVEL LENGTH: 29’ – 10”

CHASSIS:  Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a Flat Roof

  • Four-Door, Four-Person Cab
  • 10” Single Frame Rails (50K PSI)
  • Front Axle and Suspension 18,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9 450HP
  • Alternator: Leece Neville 270 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • XS-QMAX 1,750 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Right of Main Hosebed, (1) 3” Deck Gun
  • 500 -Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-up Compartment Doors
  • 150 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
  • Body: G5 – 43/43

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Hannay Electric Cord Reel: 150’ (1)
  • Generator: Smart Power 6KW
  • Ziamatic Quick Lift Electric Ladder Rack
  • FRC Spectra Brow Light
  • FRC Spectra 240V LED Scene Lights
  • Whelen Freedom LED Lightbar
  • Whelen M9 Scene Lights
  • Whelen LED Traffic Advisor
