Delivery Date:
09/08/2018
Department Name:
Westerville Division of Fire
Department City / State:
Westerville, OH
Truck Type:
WHEEL BASE: 229”
TRAVEL HEIGHT: 11’ – 2”
TRAVEL LENGTH: 36’ – 3”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 15” Raised Roof

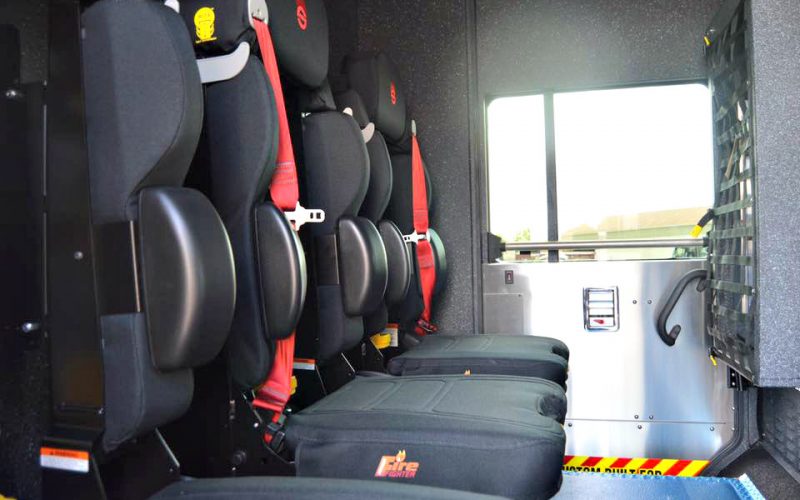

- Four-Door, Five-Person Cab
- 10” Double Rails (50K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 31,000 lbs
- Engine: Cummins ISX 12, 500 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS4000
PUMP: Waterous
- CSU-1500 GPM, Single Stage
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- 600-Gallon Water Tank
- 30-Gallon Foam Tank
- Waterous Aquis 3.0 Foam System
BODY: Sutphen
- 3/16” Extruded Aluminum
- Rom Roll-Up Compartment Doors
- Over 460 cu. ft. of Compartment Space
- Alco-Lite Ladders (24’ 2-Section, 14’ Roof, 10’ Folding
OPTIONAL EQUIPMENT:
- 30” Bumper Extension, 6” Raised Lid
- Safety Vision SV-CLCD0-70, Camera System
- Whelen Traffic Advisor
- Federal Q2B Siren
- Harrison 10kw Generator
- Hannay Electric Cord Reel, 150’ (2)
- Pike pole Storage Tubes (3)
- Whelen 295HFS2 Siren
