Delivery Date:
12/19/2019
Department Name:
West Hancock Fire Department
Department City / State:
Pearlington, MS
Truck Type:
Sutphen Corporation – HS #6264
Dealer – Passman’s EVT Services
WHEEL BASE: 196”
TRAVEL HEIGHT: 10’-2”
TRAVEL LENGTH: 32’-3”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 380HP
- Alternator: Niehoff, 360 AMP
- Transmission: Allison Gen 5, EVS3000

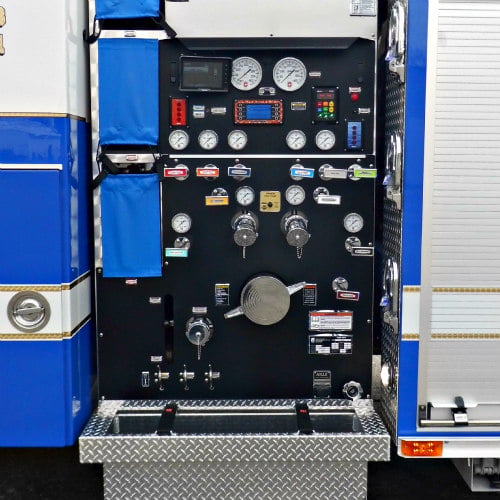

PUMP: Hale
- QMAX-1500 GPM Single Stage
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Monitor: TFT XFC-42 Crossfire with Safety Flow, Quad Stack Tips and Stream Shaper
- Crosslays: (1) 2 ½” Crosslay & (2) 2” Speedlays with 1 ½” Swivel and Poly Lift-Out Tray
- 20-Gallon Foam ank
- Hale Smartfoam 2.1
- 1,000-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- 314 cu. ft. Total Compartment Storage
- Alco-Lite PEL-24 (24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
OPTIONAL EQUIPMENT:
- 18” Bumper
- Brigade, Buckeye 360 Camera System
- Federal Q2B Siren
- Whelen LED 36” Traffic Advisor
- Whelen Freedom LED Lightbar
- FRC Spectra Brow Light
