Delivery Date:
10/14/2024
Department Name:

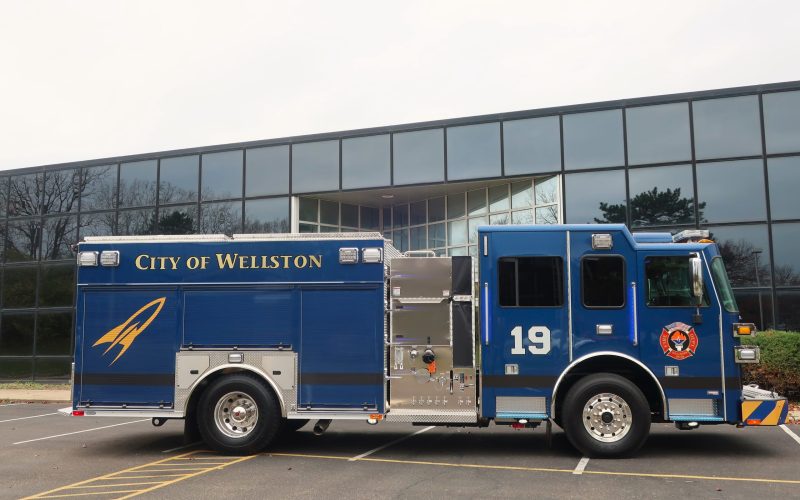

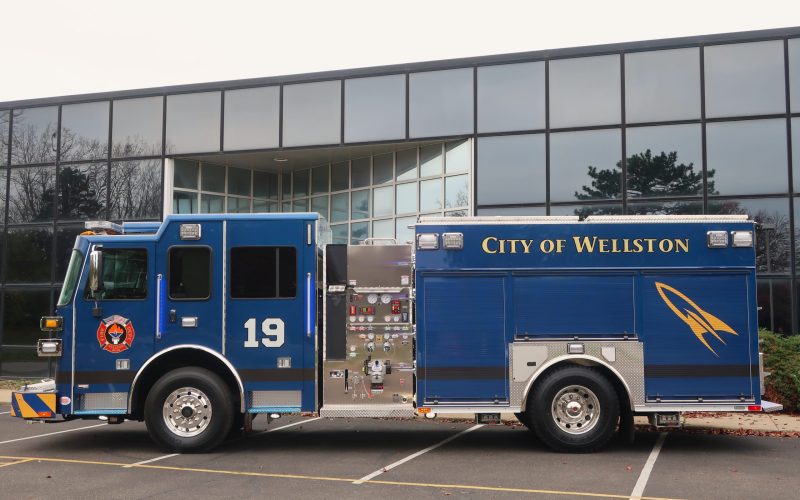

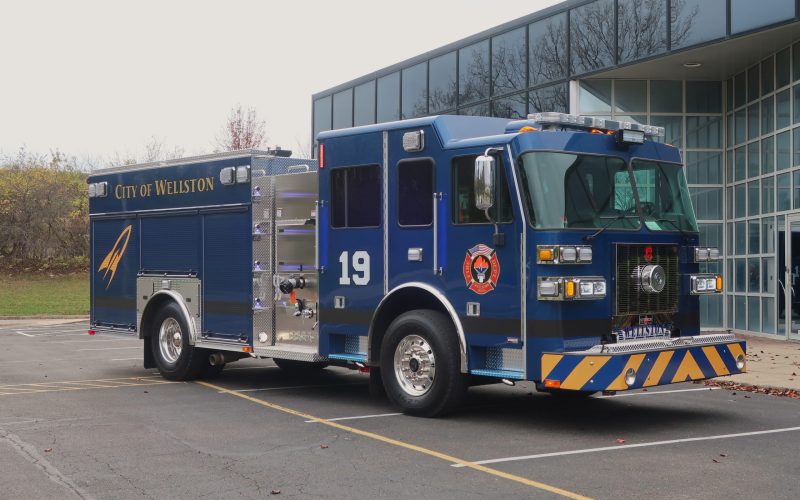

Wellston Fire Department
Department City / State:
Wellston, OH
Truck Type:
Dealer – Heritage Fire Equipment
WHEELBASE: 185”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 31’ – 4”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Cab w/ a 10” Raised Roof
- Four-Door, Five-Person Cab
- 10” Double Frame Rails, Single Axle (50K PSI)
- Front Axle and Suspension 18,000 lbs w/ (3) 56” Leafs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX XS 1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper w/ 2” Plumbing, (1) 3” Deck Gun
- Crosslay: (1) 2 ½”
- Speedlays: (2) 2” w/ Swivels & Poly Lift-Out Trays
- 1000-Gallon Water Tank
- 20-Gallon Foam Tank
- Foam System: Hale SmartFoam 2.1 A
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- Nearly 300 cu ft. Total Compartment Space
- Duo-Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
- Body: G2 – Alum 40/51 Lad Chute
ADDITIONAL EQUIPMENT:
- 18” Formed Steel Channel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Single Camera (Wired)
- Whelen Freedom LED Lightbar
- FireTech Hosebed Lights
- FRC Spectra Brow Light
- FireTech Guardian Scene Lights
