Delivery Date:
11/24/2022
Department Name:

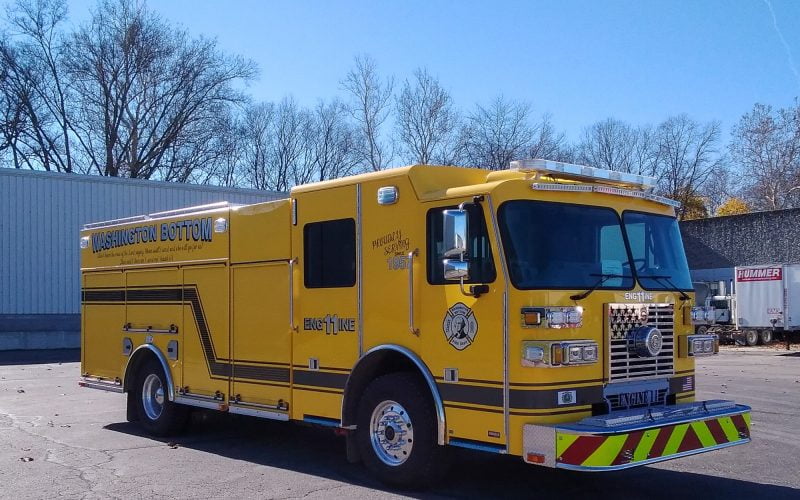

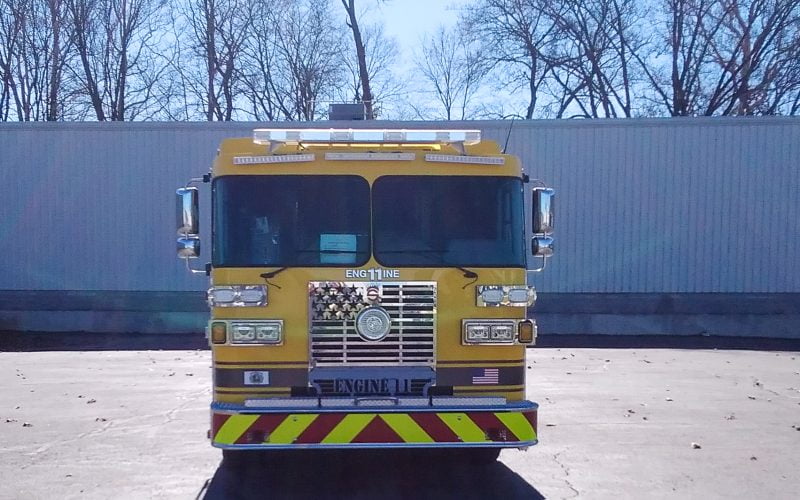

Washington Bottom VFD
Department City / State:
Washington Bottom, WV
Truck Type:
Sutphen Corporation – HS #7124
Dealer – Heritage Fire Equipment
WHEELBASE: 187”
TRAVEL HEIGHT: 10’ – 10”
TRAVEL LENGTH: 31′ – 6”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” cab with 10” Raised Roof
- Four-Door, Five-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 27,000 lbs.
- Engine: Cummins X 12, 500HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS4000
PUMP: Hale
- QMAX-2000 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, 1 ½” Front Bumper, (1) 3” Deck Gun
- Speedlay: (2) 2” w/ 1 ½” Swivels & Poly Lift-Out Trays
- 1,000-Gallon Water Tank
- 30-Gallon Foam Tank
- Foam System: Hale Smartfoam 5.0
BODY: Sutphen
- 3/16” Extruded Aluminum
- AMDOR Roll-Up Compartment Doors
- 270 cu. ft. Total Compartment Space
- Duo-Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
- Body: G2 – Alum 40/51 Ladders Chute
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Single Camera
- Command Light SL442D-FE
- Hi-Viz 72” Brow Light
- Whelen Freedom LED Lightbar
- Whelen LED Traffic Advisor
- Whelen M9 Scene Light
- FireTech Work Lights
