Delivery Date:
12/21/2022
Department Name:
Warner Robins Fire Department
Department City / State:
Warner Robins, GA
Truck Type:
Sutphen Corporation – HS #7155-56
Dealer – Williams Fire Apparatus
WHEELBASE: 196”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 33′

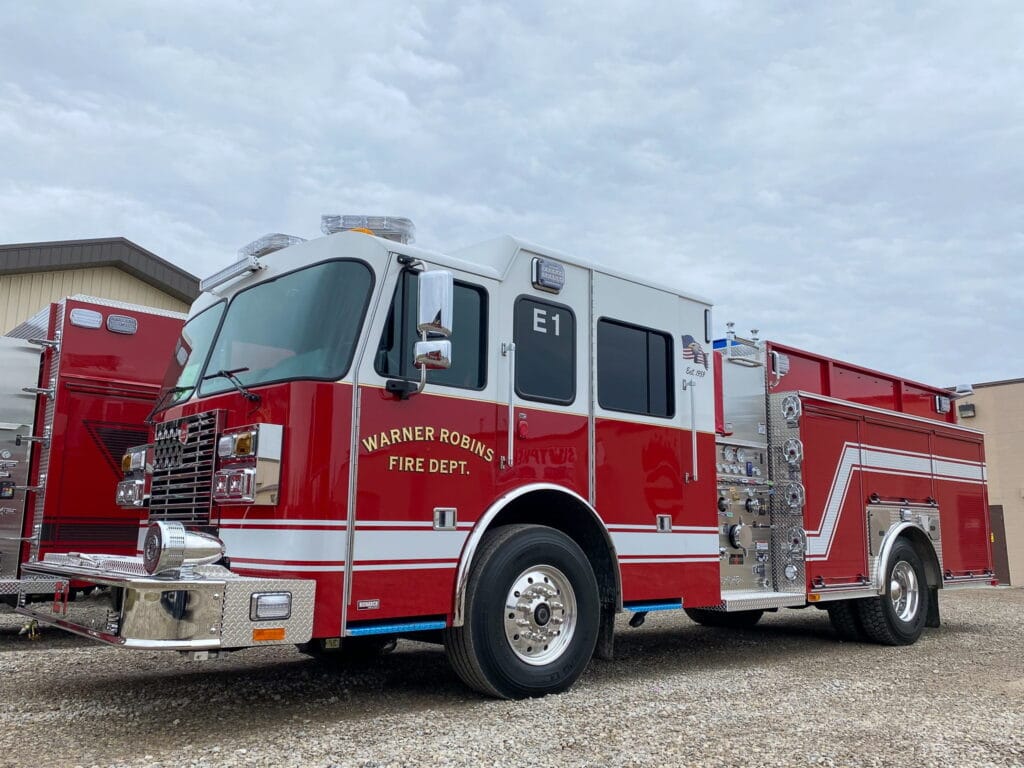

CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Domex Frame Rails (50K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 24,000 lbs.
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS3000

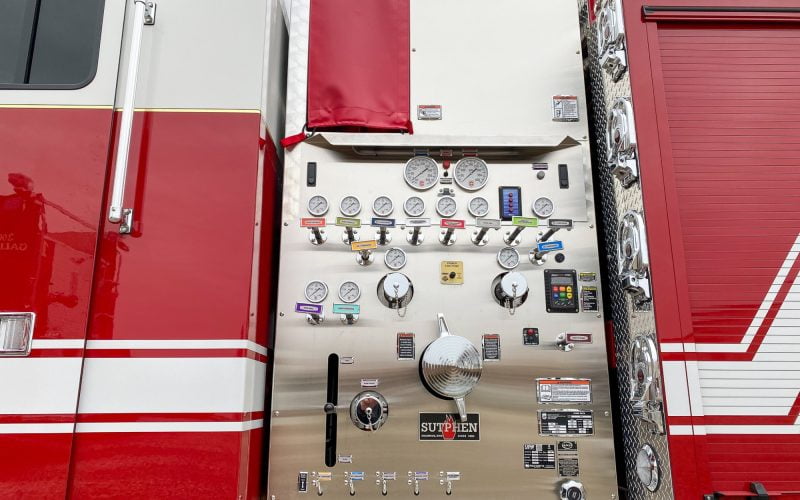

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (2) 2” w/ 1 ½” Swivel
- 750-Gallon Water Tank

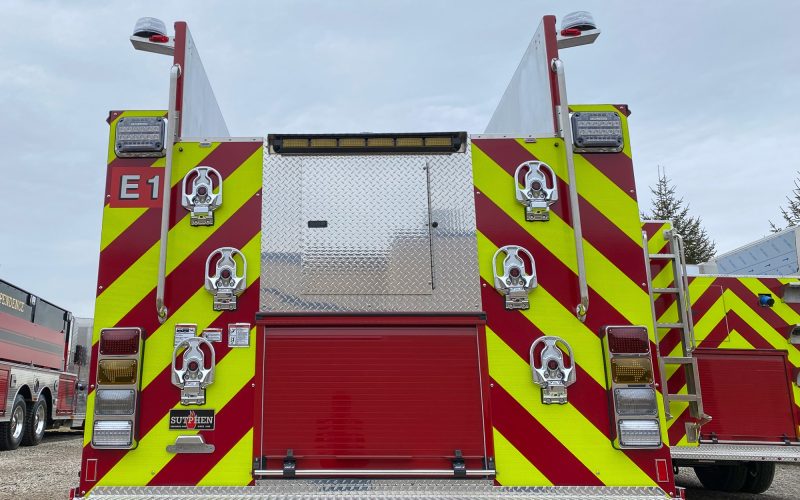

BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- Alco-Lite Ladder Package: PEL-24, 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- 246 cu. ft. Total Compartment Space
- Body: S2 – Alum 43/53 Ladder Chute
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel Bumper Extension
- Federal Q2B Siren, Pedestal Mount
- Whelen Freedom Mini (3) Lightbar
- Whelen LED Traffic Advisor
- Whelen L31 Red LED Beacons
- HI-VIZ 30” Brow Light
- FireTech Guardian GSM
- FireTech Guardian Scene Light GSM
