Delivery Date:
08/02/2024
Department Name:
Walkertown Fire Department
Department City / State:
Walkertown, NC

Dealer –  First Choice Fire and Safety

WHEELBASE: 217 ½”

TRAVEL HEIGHT: 10’ – 3”

TRAVEL LENGTH: 35′ – 2”

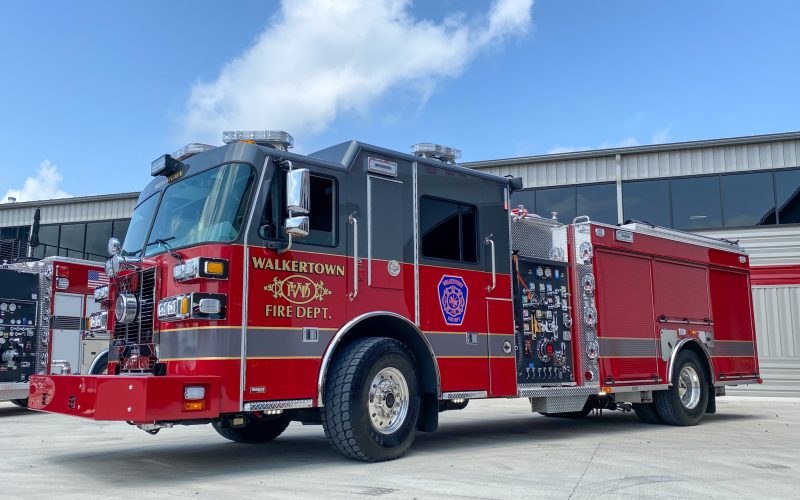

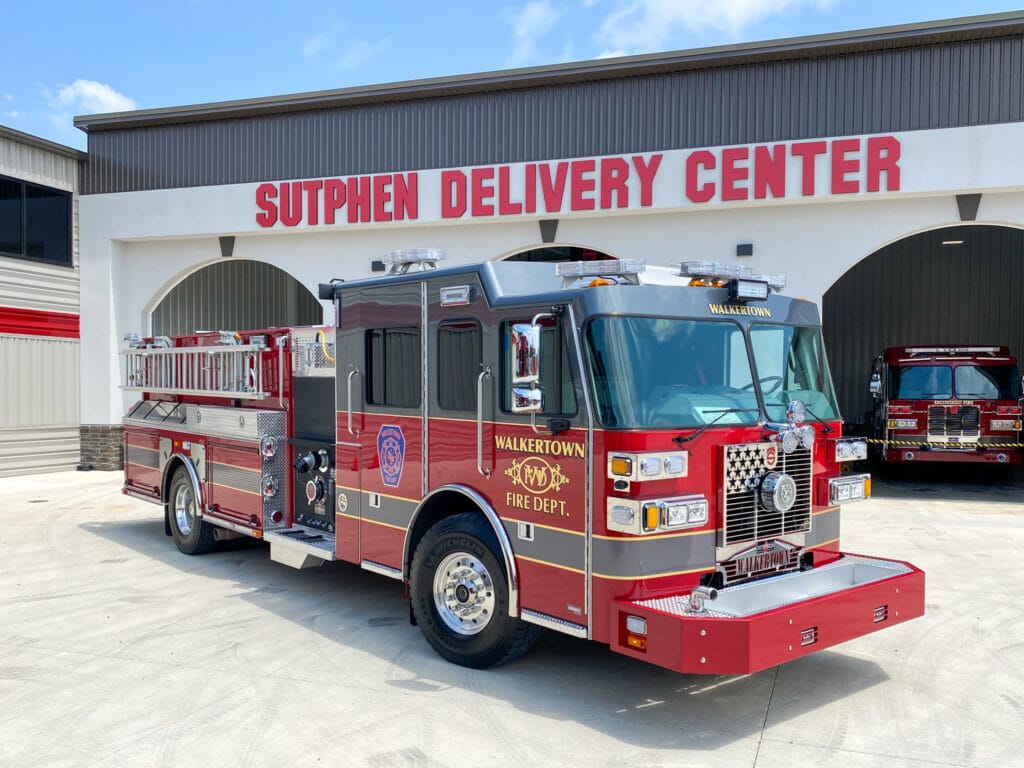

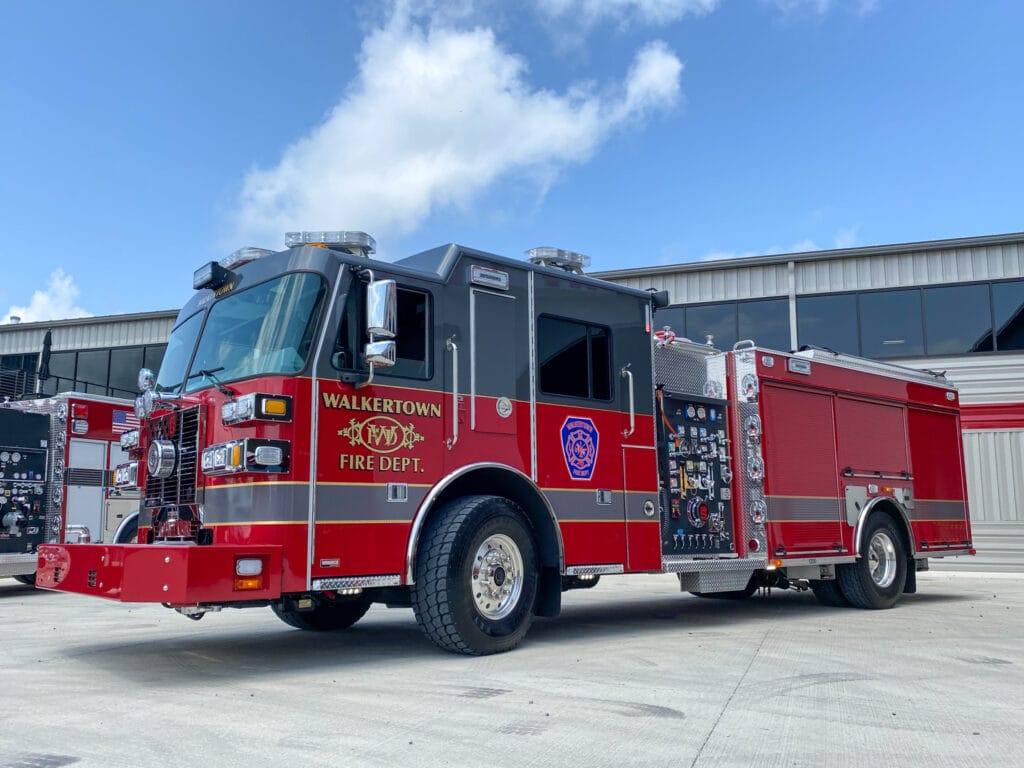

CHASSIS:           Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension: 21,000 lbs.
  • Rear Axle and Suspension: 31,000 lbs.
  • Engine: Cummins X 12, 500HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS4000

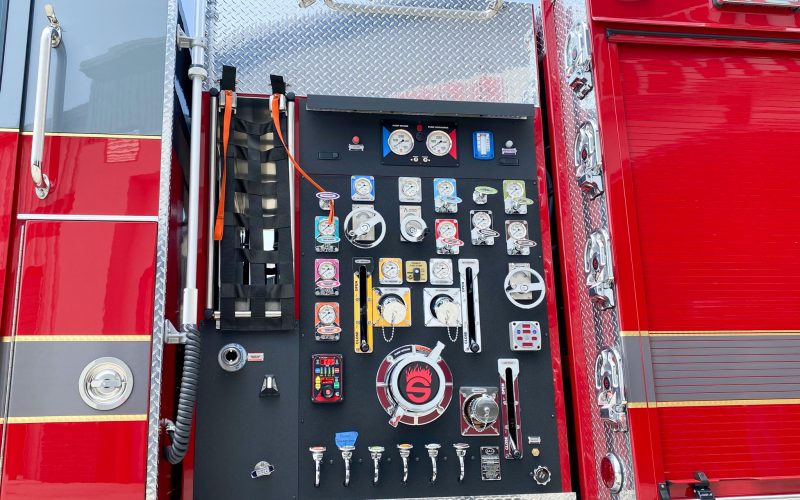

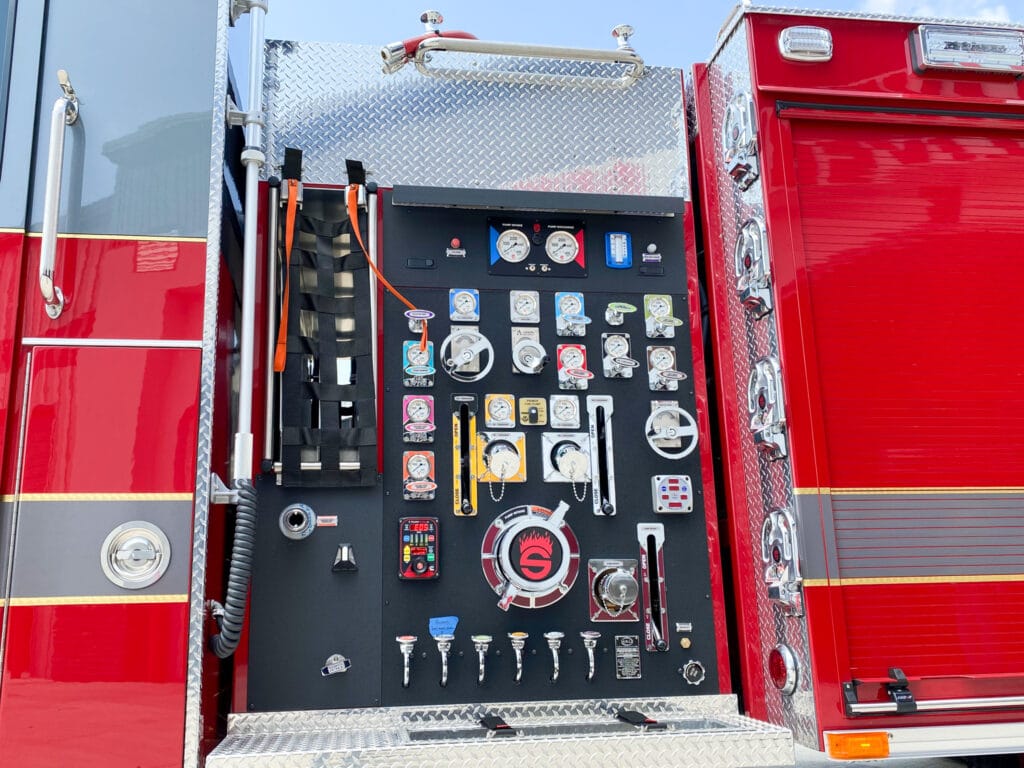

PUMP:                 Hale

  • QMAX-XS-1500 GPM, Single Stage Pump
  • Discharge: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (2) 2 ½” Front/Right of Main Hosebed, (2) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front Bumper, 3” Deck Gun
  • Speedlay: (2) 1 ½” Speedlays w/ Lift-Out Trays
  • 1,000-Gallon Water Tank

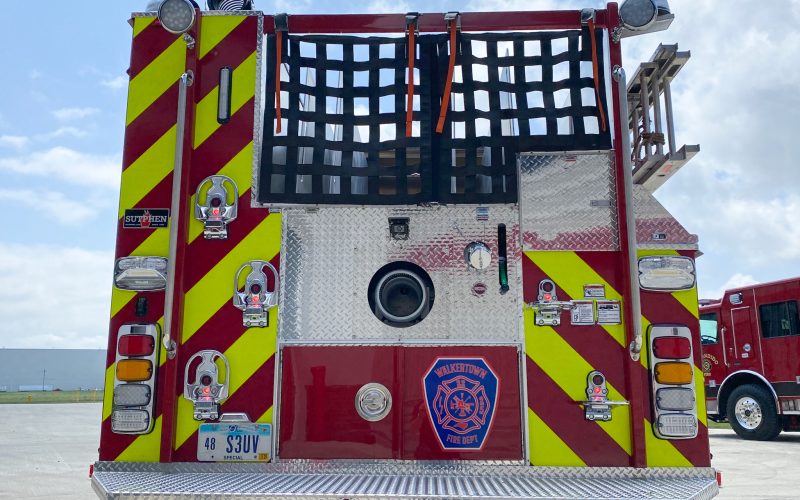

BODY:                 Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 198 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Package: 900A 24’ 2-Sec & 775A 14’ Roof & 10’ Folding
  • Body: PA-11 Res 54/53 Low Right, Electric Rack, Modified Heights for Side Compartments Both Sides

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Hannay Electric Cord Reel, 175’ (1)
  • Generator: Smart Power, 6KW TM HYD
  • Camera System: Brigade, Two Camera
  • Roto Ray Warning Light
  • (3) Whelen Freedom IV 23.25” LED Light Bars
  • FRC 12V Spectra LED Brow Light
  • FRC 12V Spectra Tele Lights
