Delivery Date:
01/09/2019
Department Name:
Verdoy Fire Department
Department City / State:
Latham, NY

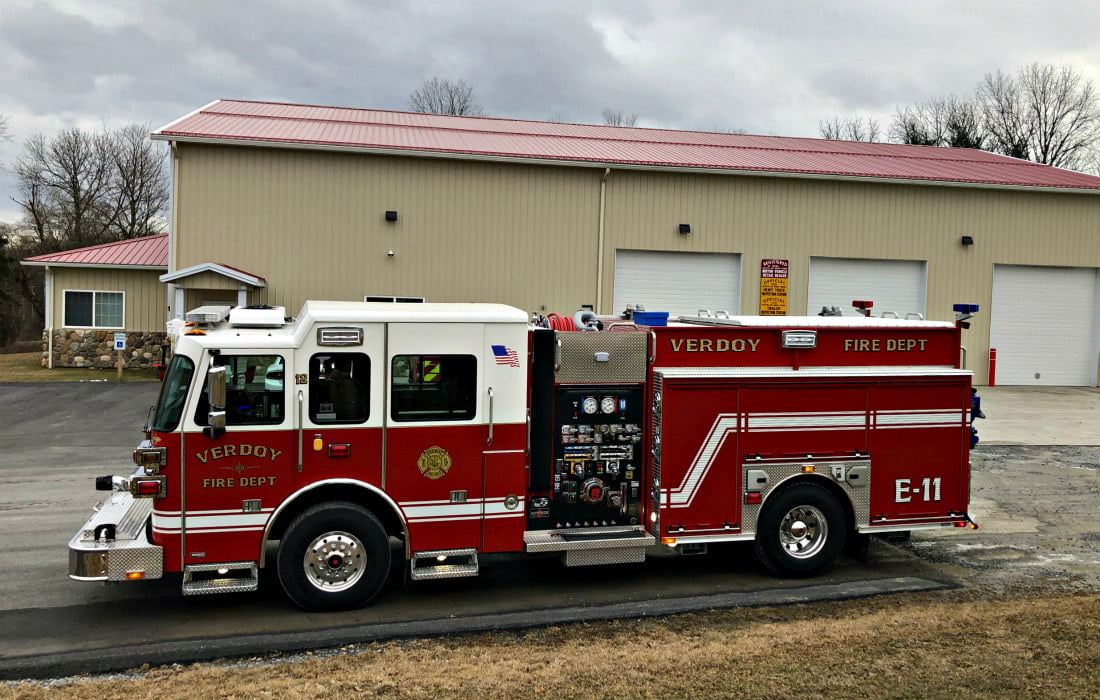

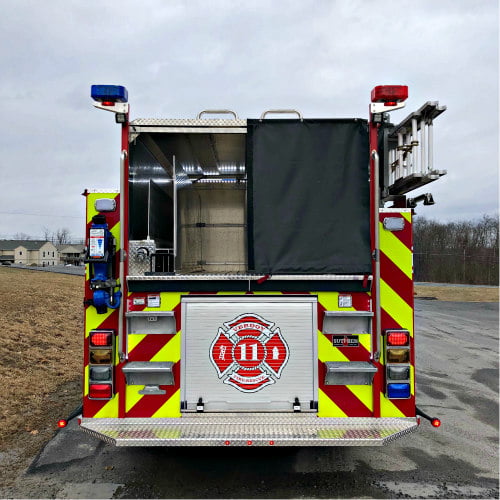

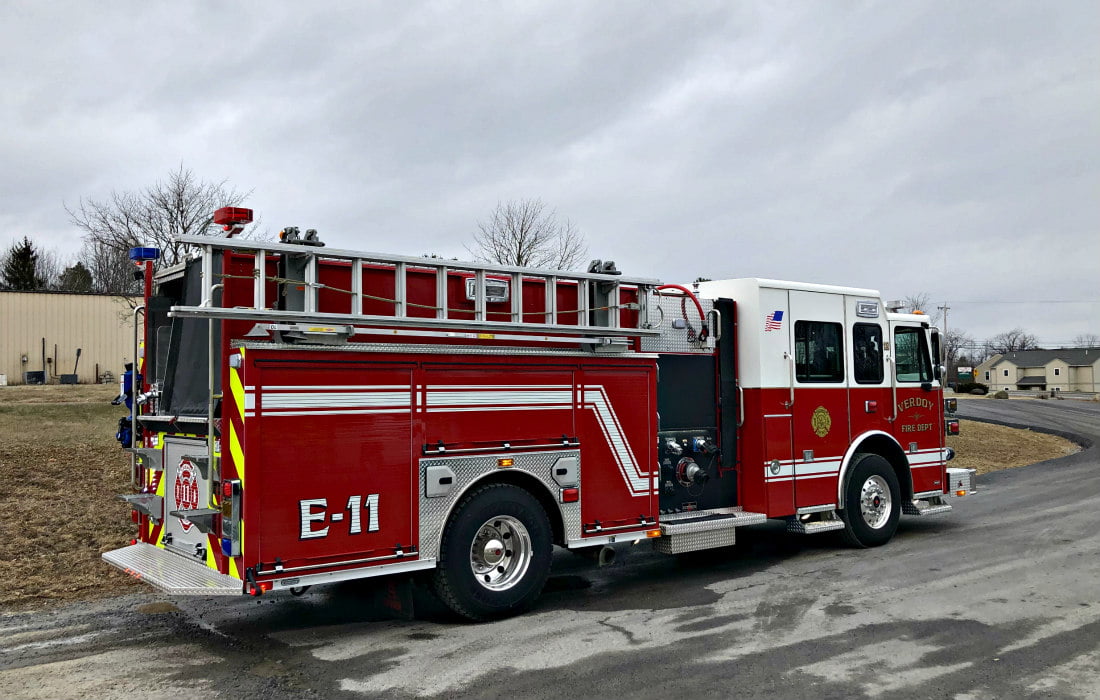

Truck Type:
Sutphen Corporation – HS #6174
Dealer – Vander Molen Fire Apparatus Sales and Service
WHEEL BASE: 199”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 32’ – 9”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Seven-Person Cab
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 24,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS 3000

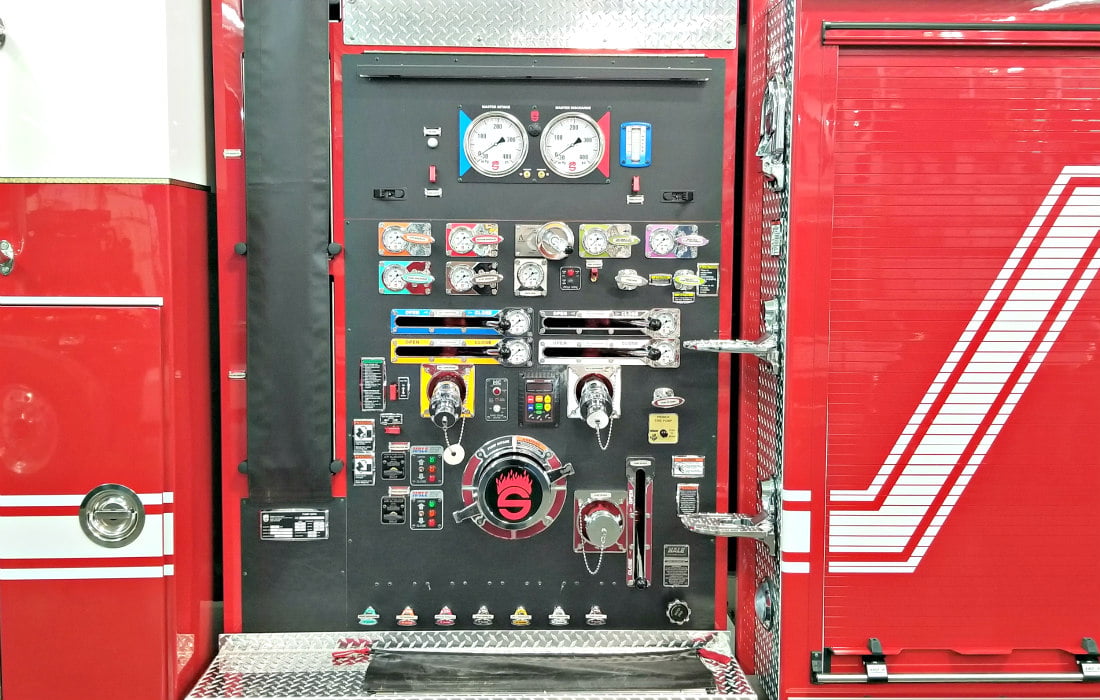

PUMP: Hale
- QMAX-1500 GPM
- Discharges: (2) 2 ½” Left; (1) 3” Right; (1) 2 ½” Right; (1) 2 ½” Left Rear; (1) 2 ½” Front/Right of Main Hosebed; (1) 1 ½” Front Bumper; (1) 3” Deck Gun
- Monitor: TFT Hurricane, Manual 1250 GPM
- Crosslays: (2) 1 ½” Speedlays w/ Liftout Tray and (1) 2 ½” Crosslay
- 750-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Door
- 159 cu. ft. of Total Compartment Space
- Alco-Lite PEL-24 (24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
OPTIONAL EQUIPMENT:
- 24” Bumper Extension
- Federal Q2B Siren
- Ziamatic Quic-Lift Electric Ladder Rack
- Pike Pole Storage Tubes (2)
- Whelen Freedom IV LED Lightbar
- Whelen PFP2 12V LED Brow
- Whelen PFP2 12V LED Scene
