Delivery Date:
11/16/2021
Department Name:
Valparaiso Fire Department
Department City / State:
Valparaiso, IN

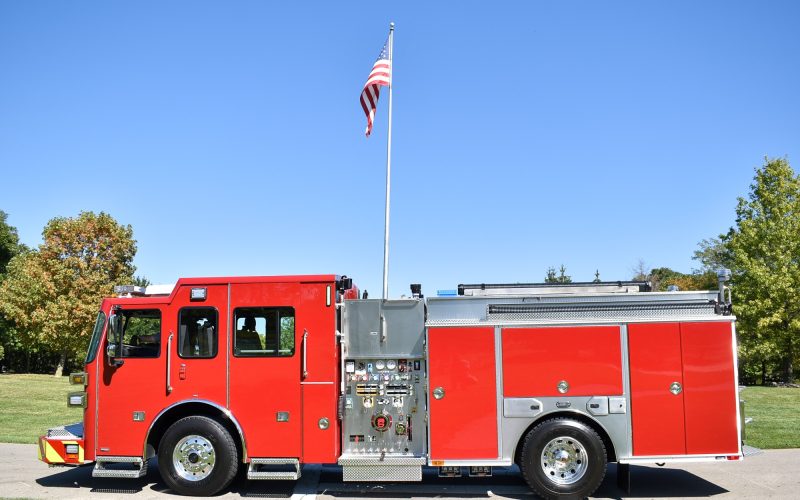

Sutphen Corporation – HS #7004-7005

Dealer – Herb Fire Equipment

WHEELBASE: 187”

TRAVEL HEIGHT: 9’ – 9 ¾”

TRAVEL LENGTH: 31’ – 11 ¾”

CHASSIS:  Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Half Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                  Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (2) 2” Left/Front of Main Hosebed, (1) 2 ½” Left/Front of Main Hosebed, (2) 2 ½” Pipe Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • 750-Gallon Water Tank

BODY:                   Sutphen

  • HuckBolted #304 Stainless Steel
  • Hinged Compartment Doors
  • Over 201 cu. ft. Total Compartment Space
  • Duo-Safety 1200A 28’ 2 Section & 875A 16’ Roof & 10’ Folding
  • Body: Custom 36.5/54.4 Electric Ladder Rack

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC Inview Trueview, Single Camera
  • Ziamatic Quic-Lift Electric Ladder Rack
  • Whelen Freedom IV 72” LED Light Bar
  • FRC Spectra 900 LED Scene Lights
  • Whelen Tal65 Traffic Advisor
  • FRC Spectra 12V LED Brow Light
  • Whelen 600 Series Taillights
