Delivery Date:
07/19/2017
Department Name:
City of Valdosta Fire Department
Department City / State:
Valdosta, GA

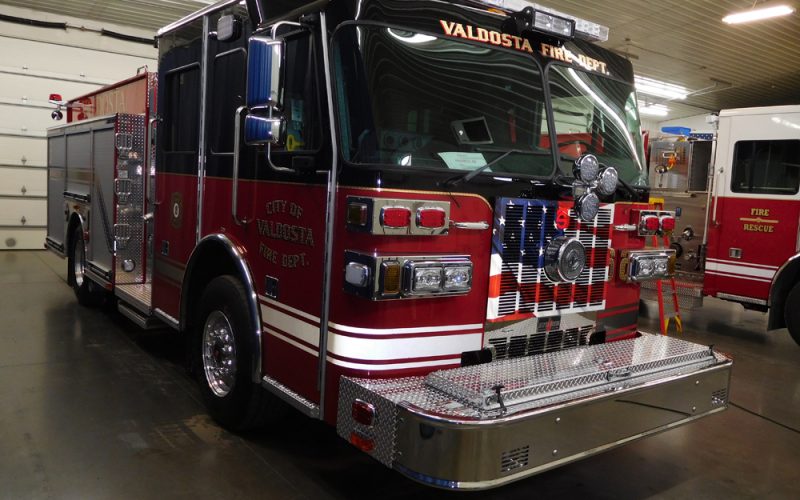

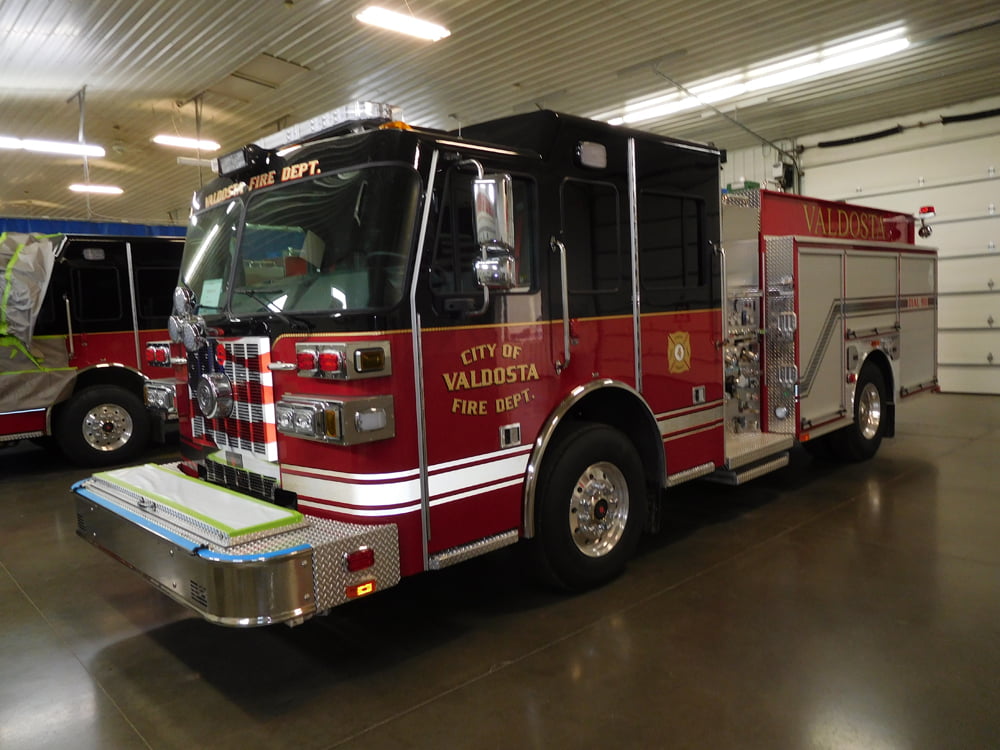

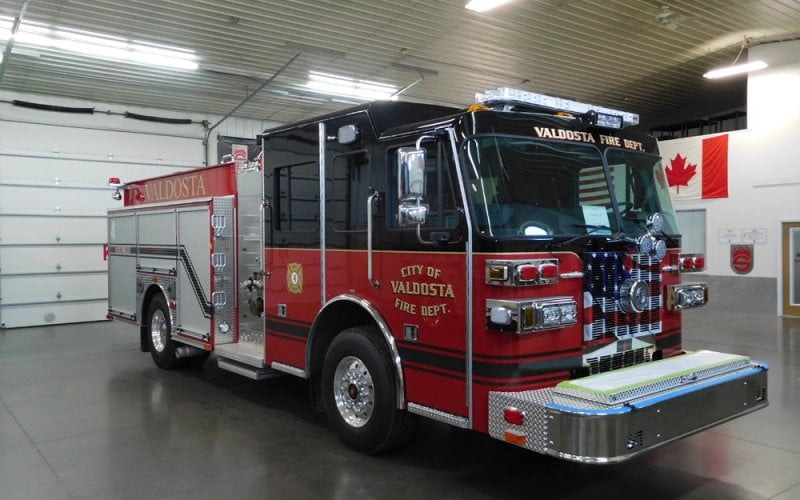

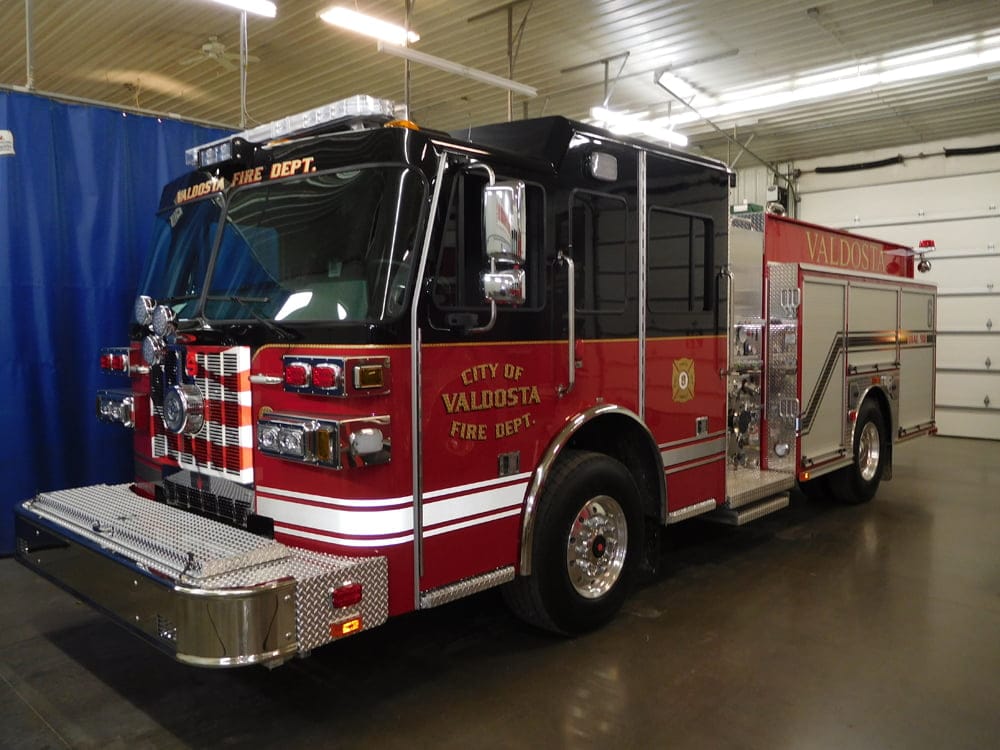

Custom Pumper (HS-5860-63)

WHEEL BASE: 185”

TRAVEL HEIGHT: 9’-8”

TRAVEL LENGTH: 32’-1”

CHASSIS: SUTPHEN 62” with 10” Raised Roof

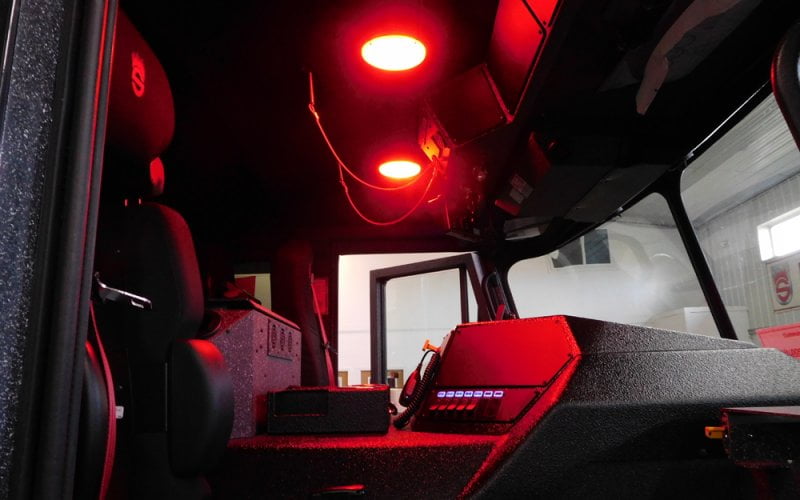

  • Four-door, six-person cab
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins ISL 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

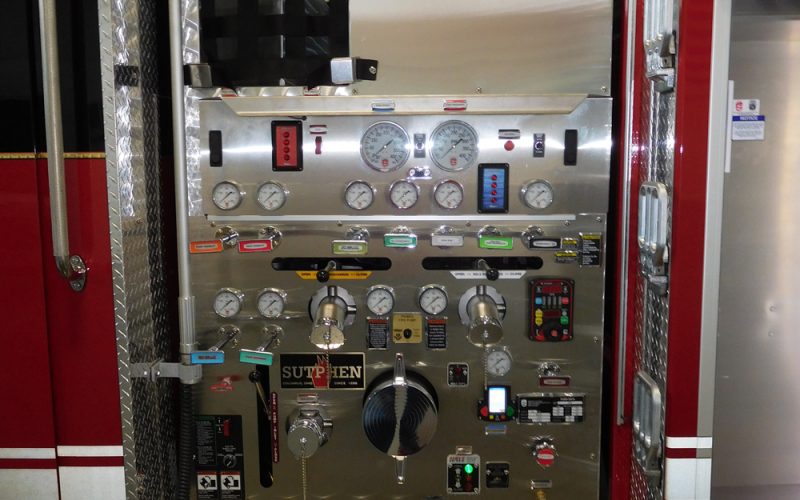

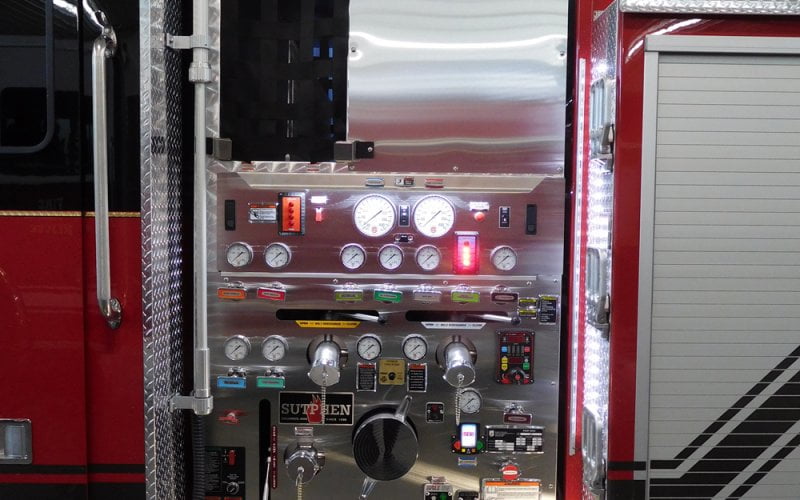

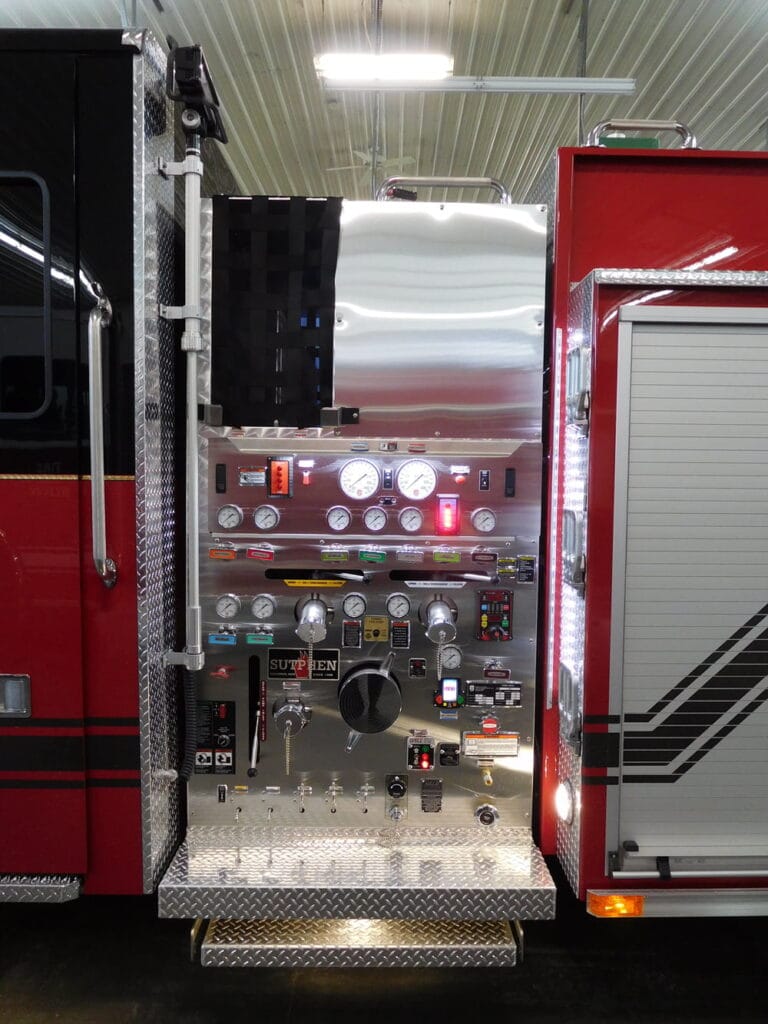

PUMP: Hale

  • QMAX-1500 GPM
  • Discharges: (2) 2 ½” Left, (2) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • 30-Gallon Foam Tank
  • 1000-Gallon Water Tank

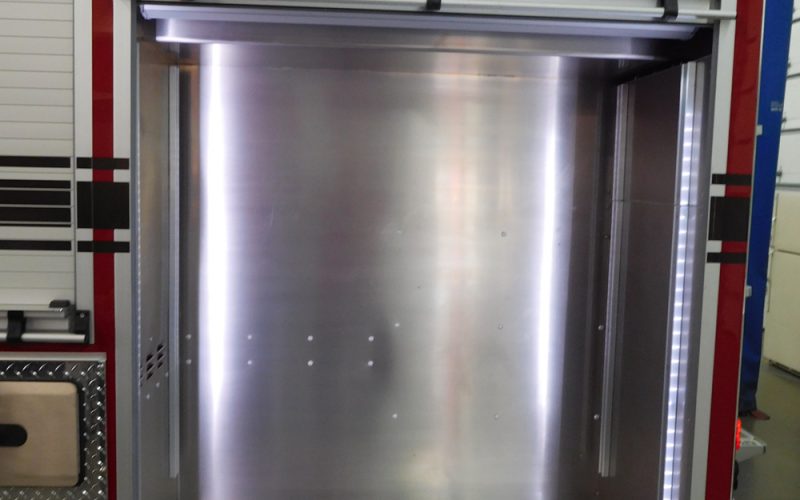

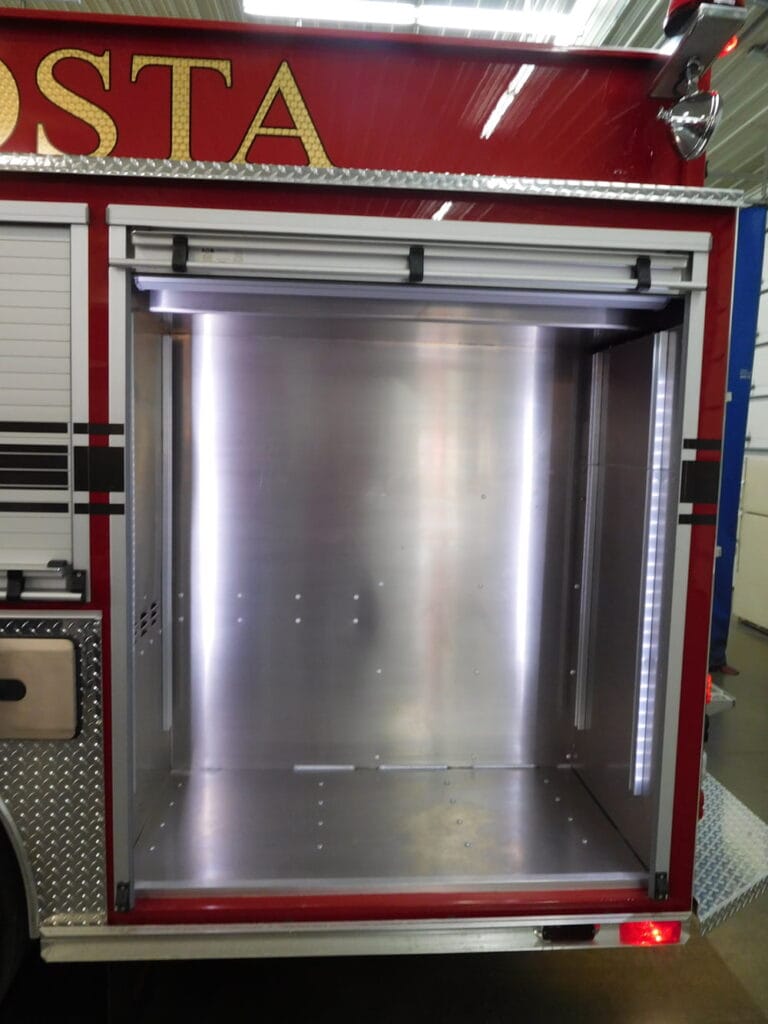

BODY:

  • Aluminum
  • ROM Roll-up doors
  • 222 cu. ft. Total Compartment Space
  • Ladder Storage: Ladder chute with backboard storage

OPTIONAL EQUIPMENT:

  • Voyager Camera System: Rear-View and Right-Side
  • Elkhart Master Stream Nozzle, 1500 GPM
  • 24” bumper
  • Federal Q2B
  • Warning Light, Roto-Ray
