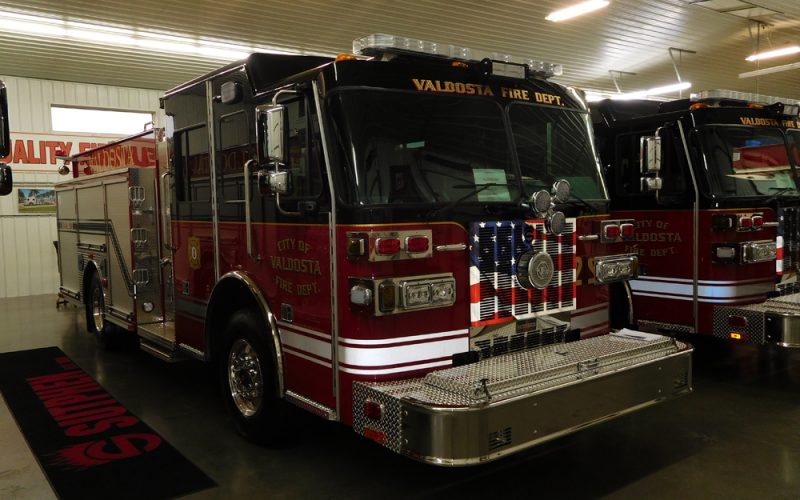

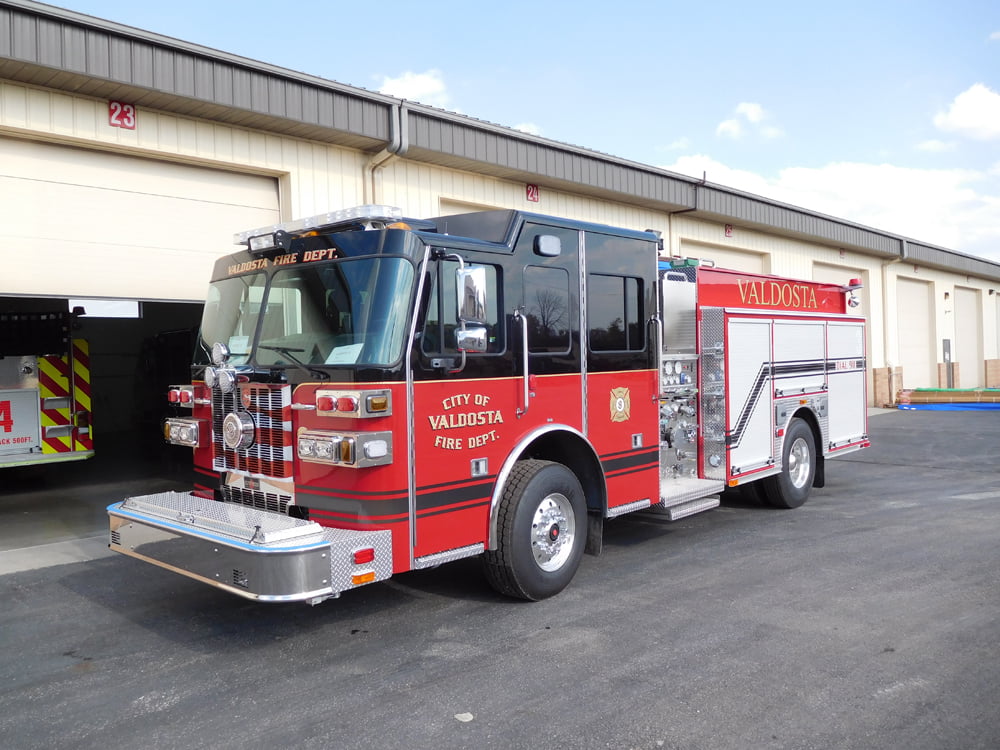

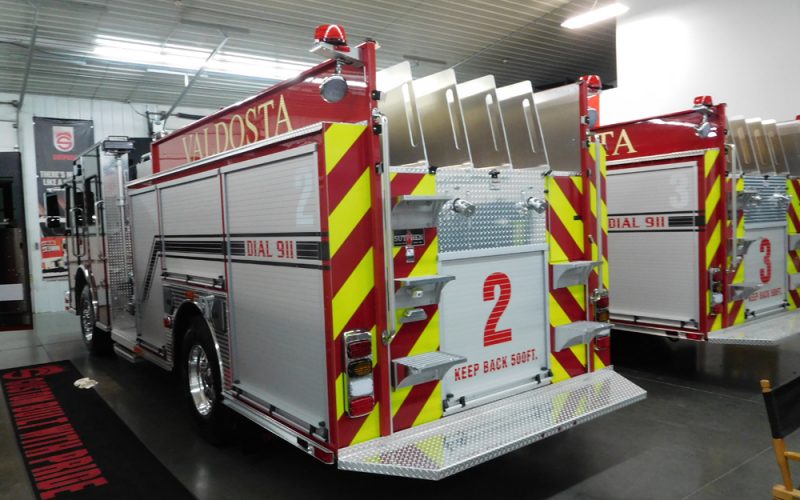

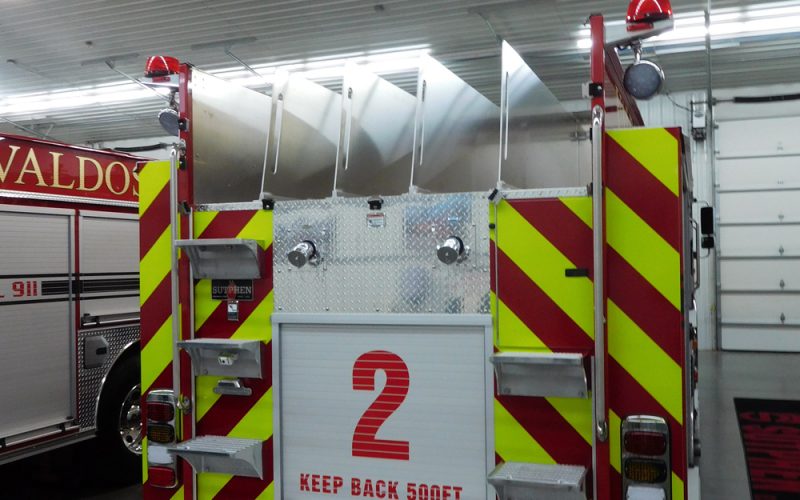

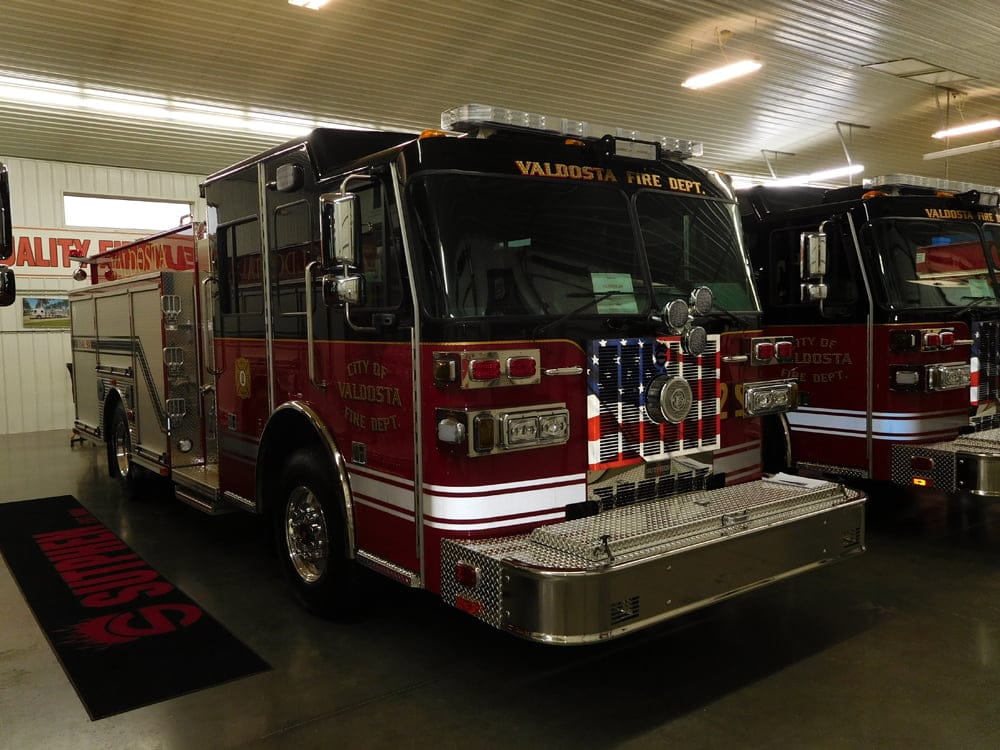

Custom Pumper (HS-5860-63)
WHEEL BASE: 185”
TRAVEL HEIGHT: 9’-8”
TRAVEL LENGTH: 32’-1”
CHASSIS: SUTPHEN 62” with 10” Raised Roof
- Four-door, six-person cab
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins ISL 9, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000

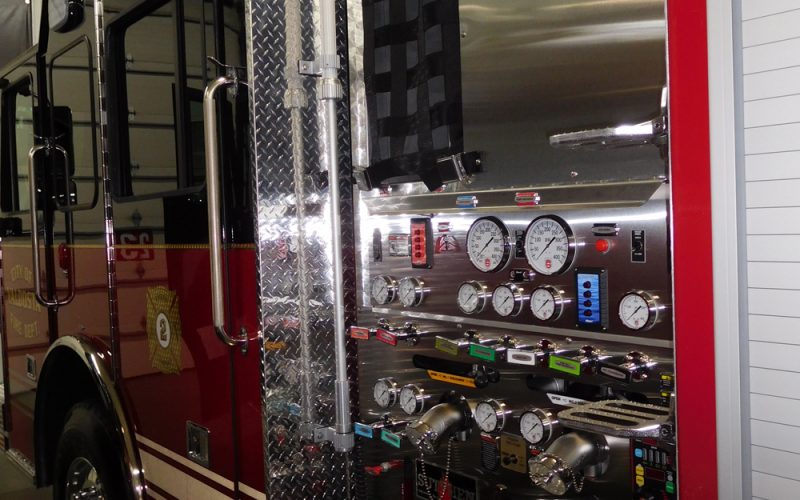

PUMP: Hale
- QMAX-1500 GPM

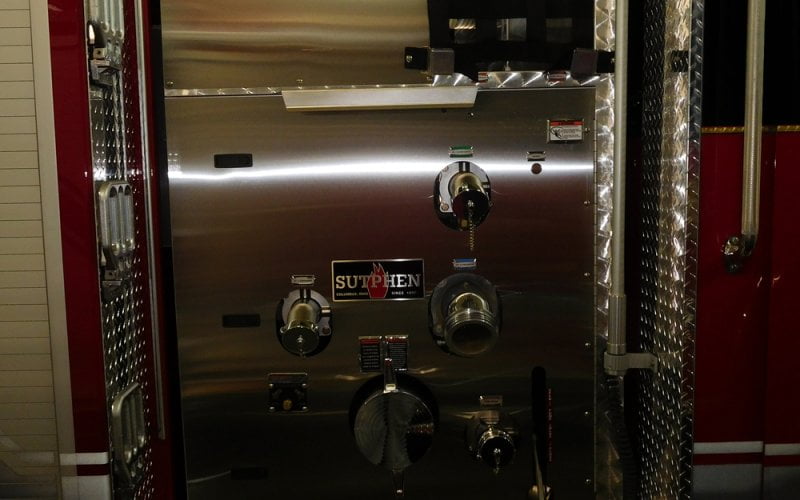

- Discharges: (2) 2 ½” Left, (2) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- 30-Gallon Foam Tank
- 1000-Gallon Water Tank
BODY:
- Aluminum
- ROM Roll-up doors
- 222 cu. ft. Total Compartment Space
- Ladder Storage: Ladder chute with backboard storage
OPTIONAL EQUIPMENT:
- Voyager Camera System: Rear-View and Right-Side
- Elkhart Master Stream Nozzle, 1500 GPM
- 24” bumper
- Federal Q2B
- Warning Light, Roto-Ray
