Delivery Date:
09/23/2021
Department Name:

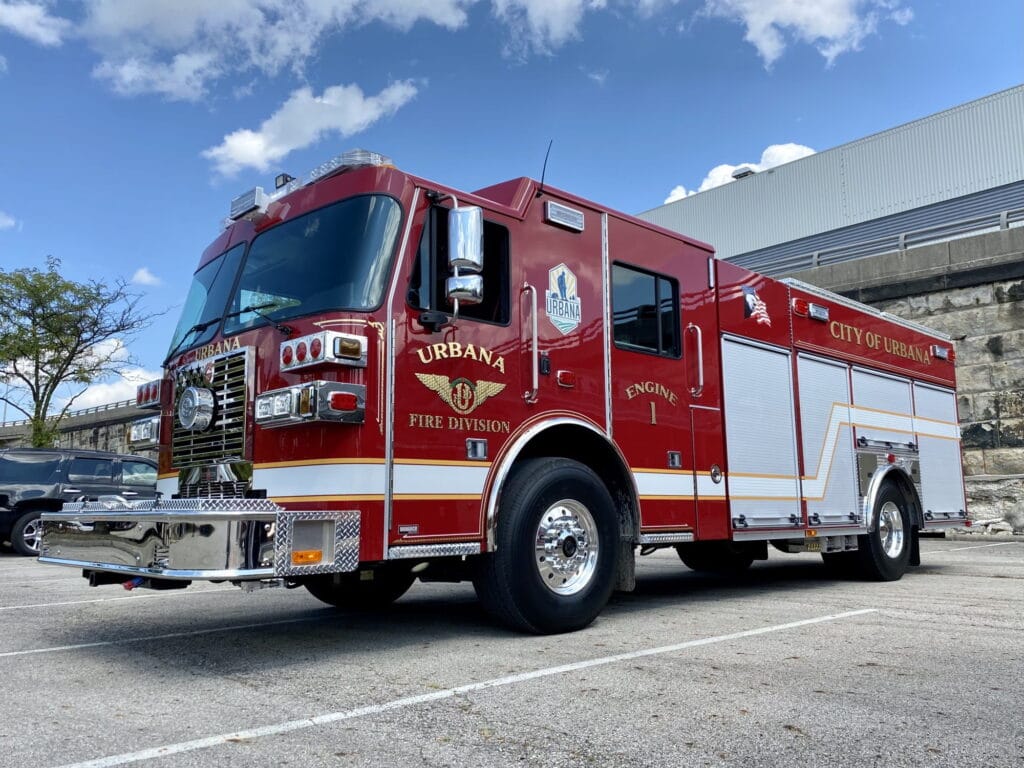

Urbana Fire Department
Department City / State:
Urbana, OH

Sutphen Corporation – HS #6958

Dealer –  Heritage Fire Equipment

WHEELBASE: 198”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 32’ – 11”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9 450HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS 3000

PUMP:                 Hale

  • XS QMAX 1500 GPM Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlays: (2) 2” w/ 1 ½” Swivels and Poly Lift-Out Trays
  • 750 Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-up Compartment Doors, Satin Finish
  • 294 cu. ft. Total Compartment Space
  • Alco-Lite ladder package: PEL-24 24’ 2-sec & PRL-14 14’ Roof & 10’ Folding
  • Ladder Chute w/ Suction Hose Storage
  • Body: G9 – Aluminum 40/51 Ladders Thru Tank

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Intercom System: David Clark 5-Position
  • Camera System: FRC, Inview Trueview, Single Camera
  • FRC Spectra Brow Light
  • Whelen Freedom LED Lightbar
  • Whelen M9 Red LEDs
  • Whelen LED, TAL65 36” Traffic Advisor
  • FRC Spectra LED Scene
