Delivery Date:
02/16/2023
Department Name:
University City Fire Department
Department City / State:
University City, MO

Sutphen Corporation – HS #7087

Dealer – Cashion Fire Equipment

WHEELBASE: 229”

TRAVEL HEIGHT: 10’

TRAVEL LENGTH: 35′ – 9 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 10” Raised Roof

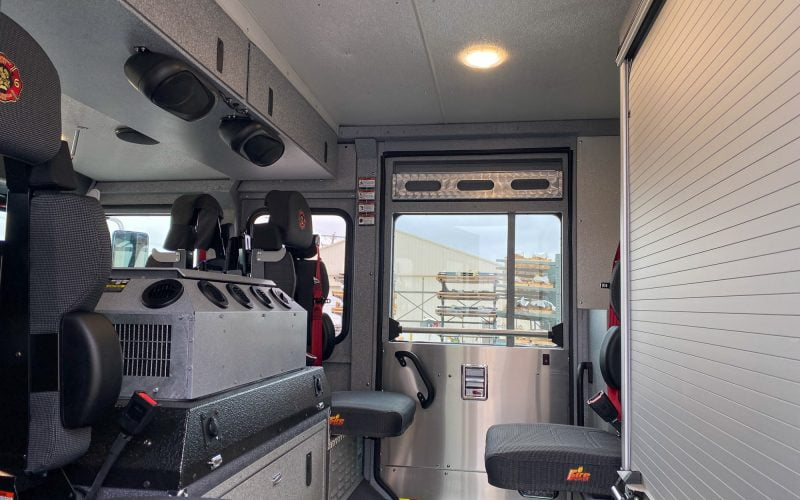

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension: 21,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins L 9, 450HP
  • Alternator: Delco Remy 420 AMP
  • Transmission: Allison Gen 5, EVS3000

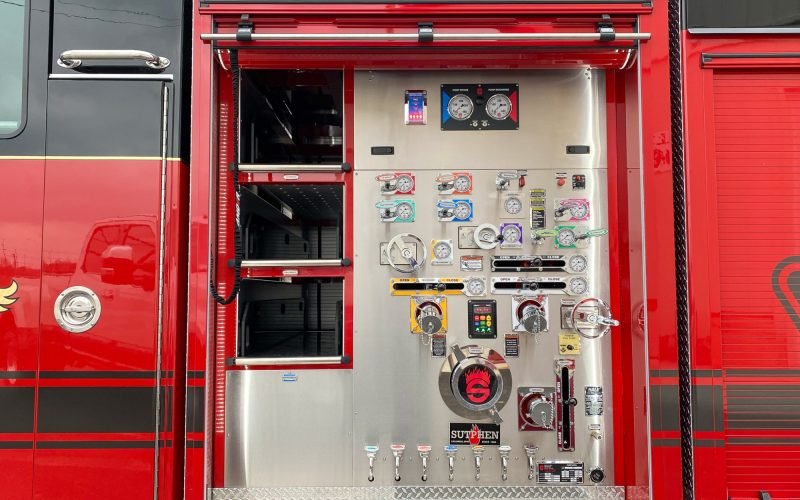

PUMP:                  Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharge: (2) 2 ½” Left, (1) 4” Right, (2) 2 ½” Right, (1) 3” Right Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlays: (2) 1 ½” w/ Lift Out Tray & (1) 2 ½” w/ Lift Out Tray
  • 750-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Duo-Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
  • Over 350 cu. ft. Total Compartment Space
  • Body: PA-05 Res 56/53 Electric Ladder Rack, Driver’s Side Hatch Compartment

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Hannay Electric Cord Reel, 175’ (2)
  • Generator: 10KW Smart Power
  • Camera System: for VMUX, Rear/Left/Right
  • Ziamatic Quic-Lift Electric Ladder Rack
  • Whelen Freedom IV 72” LED Lightbar
  • FireTech 12V Brow Light
  • FireTech 12V Scene
  • FRC Spectra 900 12V Scene
  • Whelen M7 Red/Blue LED
  • Whelen TAL85 Traffic Advisor
  • FireTech 12V Work Light
