Delivery Date:
11/22/2019
Department Name:
Travis County ESD #6
Department City / State:
Austin, TX
Truck Type:

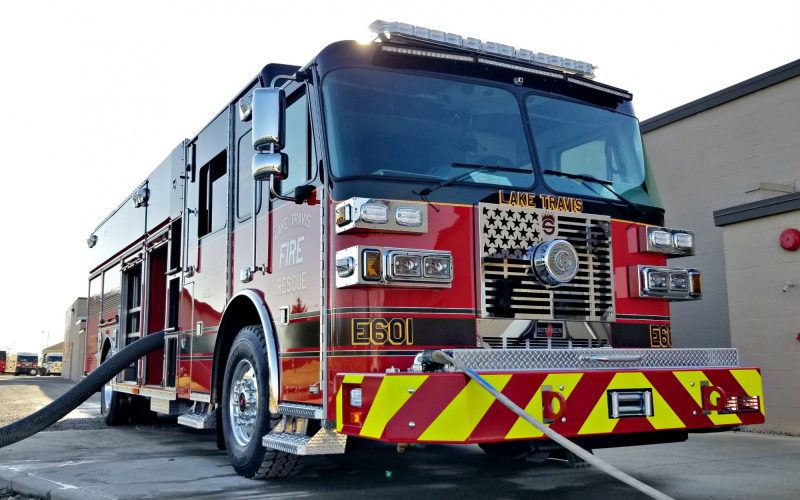

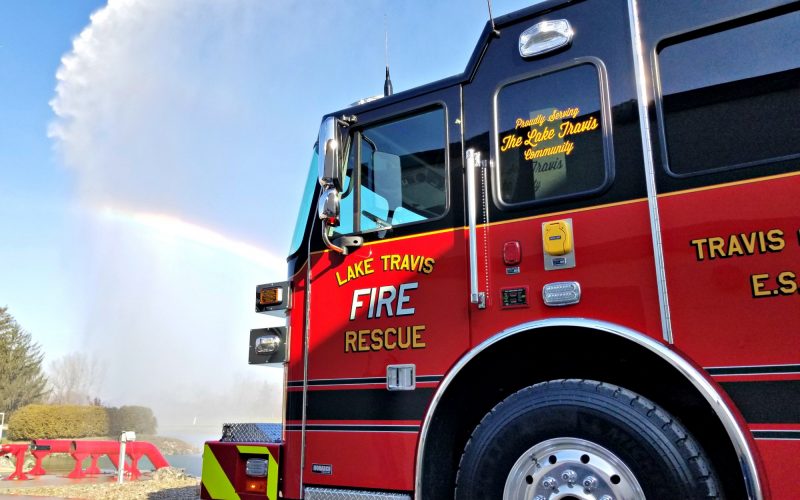

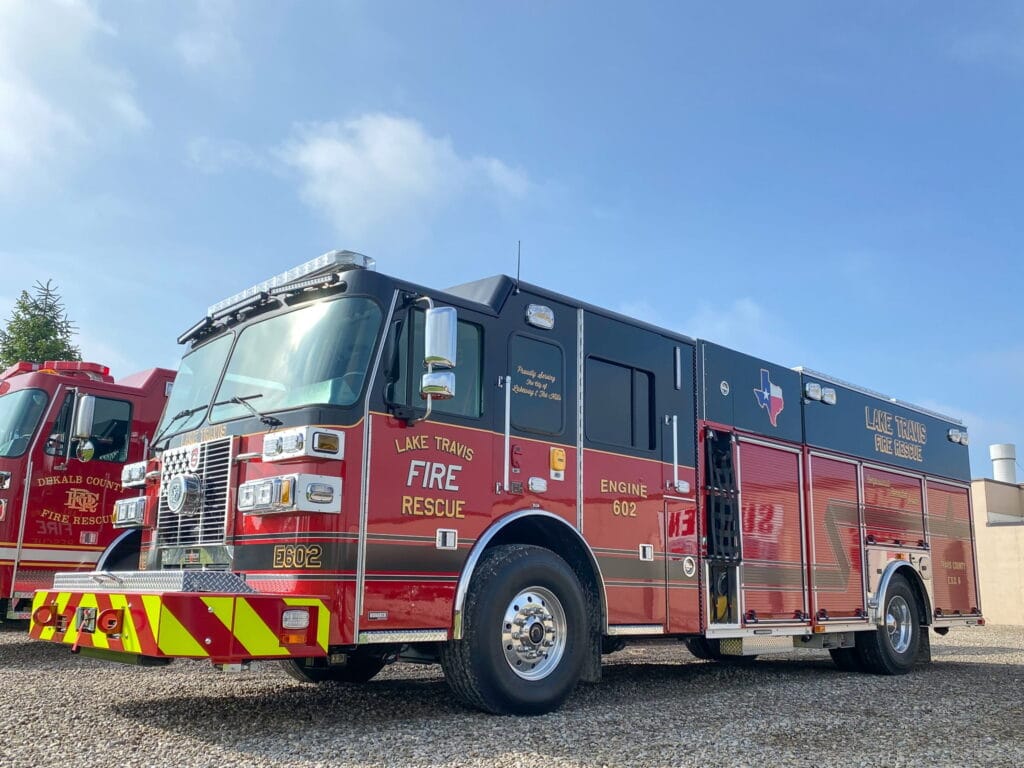

Sutphen Corporation – HS #6365
WHEEL BASE: 229”
TRAVEL HEIGHT: 10’ – 5”
TRAVEL LENGTH: 36’ – 4”

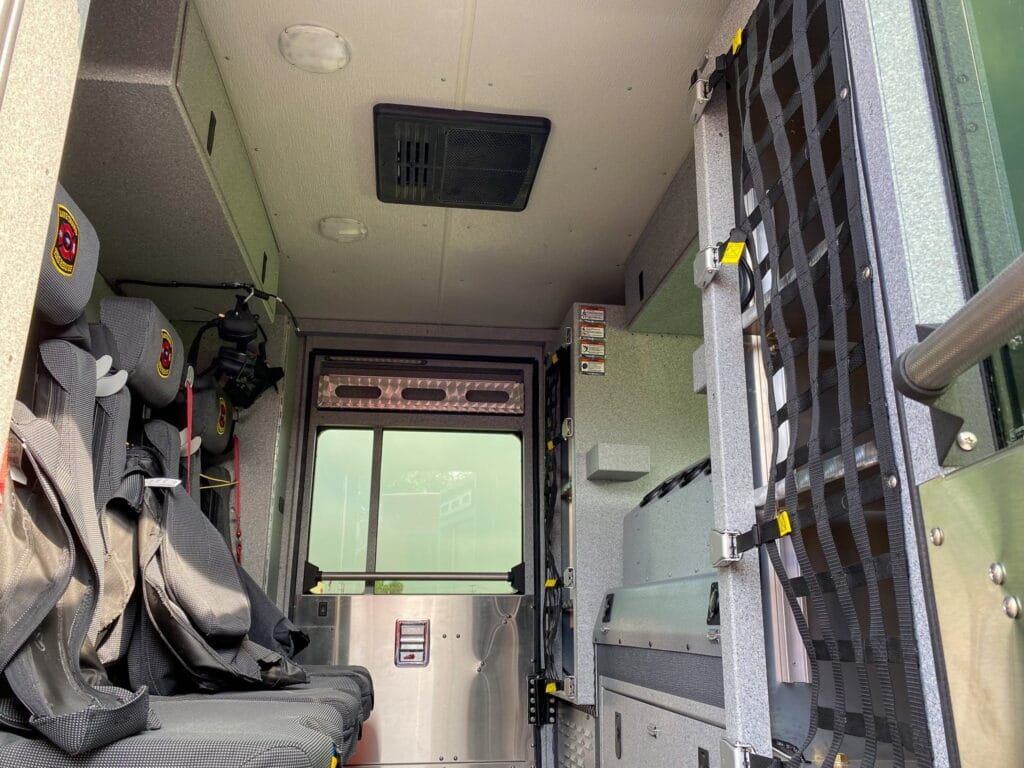

CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Five-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Niehoff, 360 AMP
- Transmission: Allison Gen 5, EVS3000

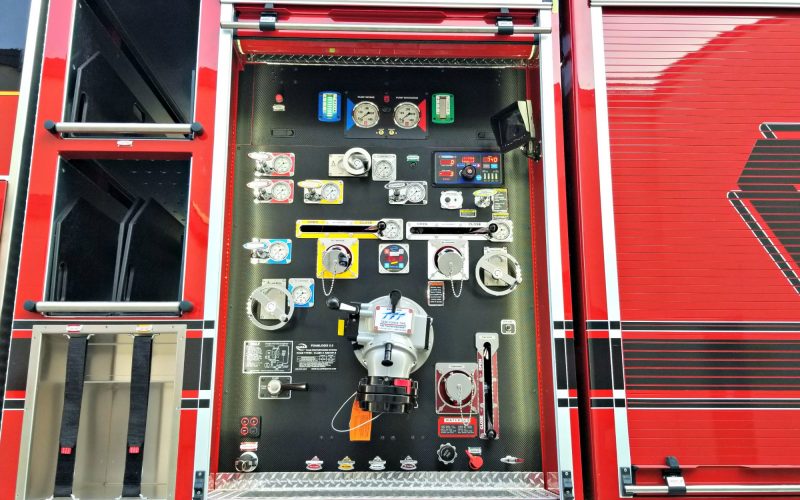

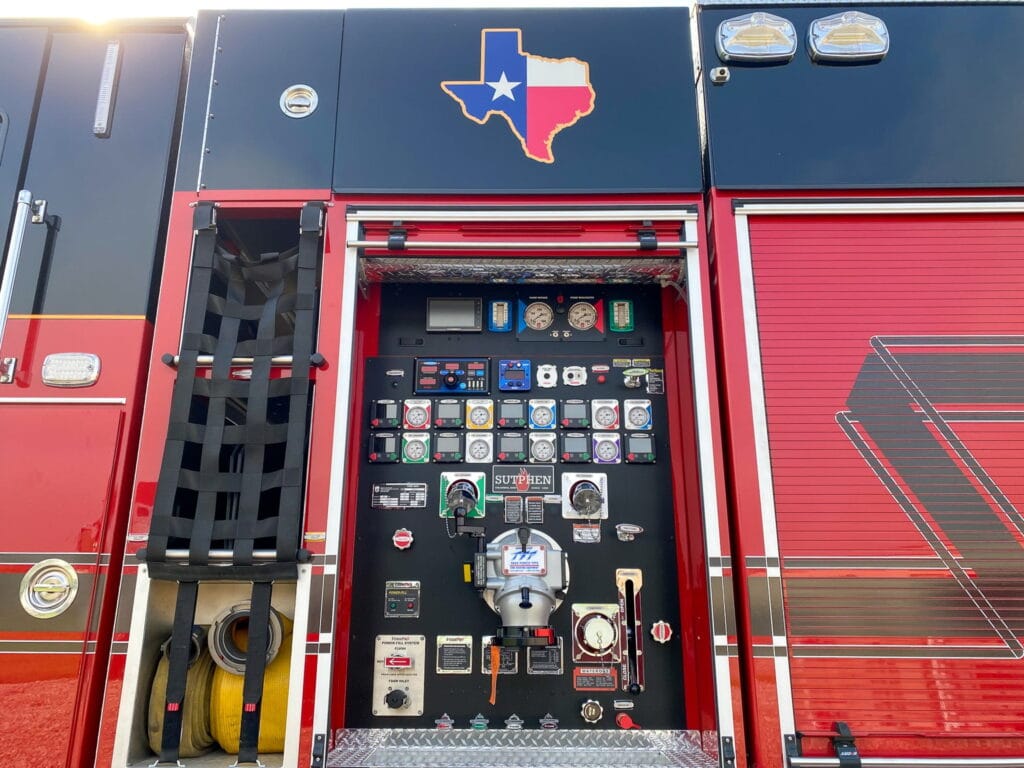

PUMP: Waterous
- CSU-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (2) 2” w/ 1 ½” Swivel
- Speedlay: (2) 1 ½” with Lift-Out Tray and (1) 2 ½” Speedlay

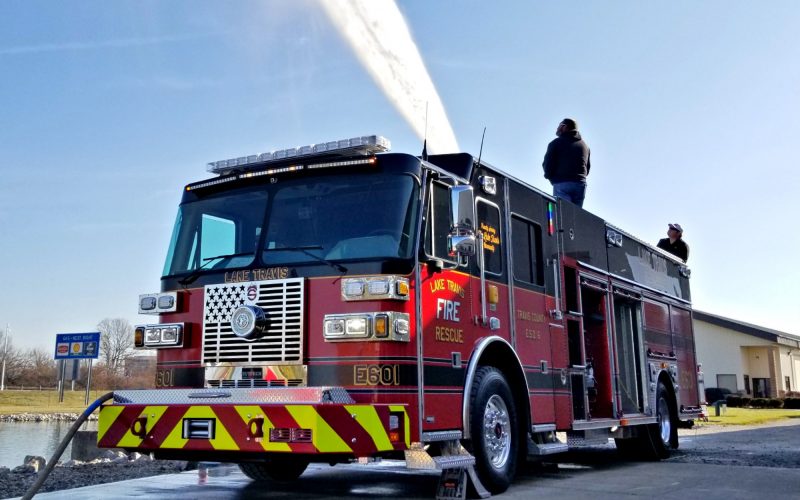

- Monitor: TFT Hurrican, Electric 1250 GPM
- 750-Gallon Water Tank
- 20-Gallon Foam Tank
- Hale Foamlogix 3.3

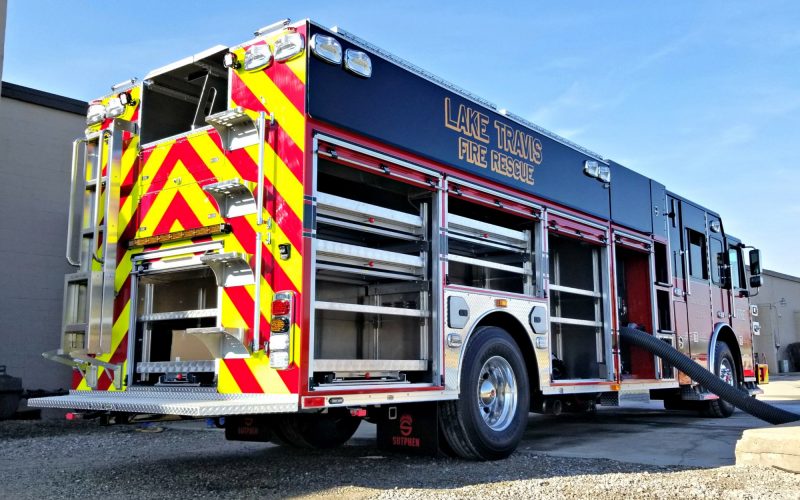

BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- Over 475 cu. ft. Total Compartment Space

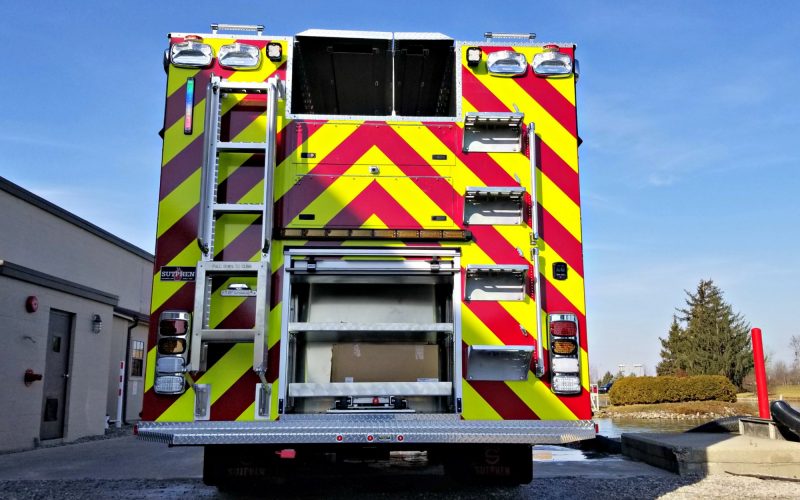

- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Ladder Chutes
- Body: PA-16 Res 56/53 Ladder Under Hosebed and Double Hatch
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Brigade, Backeye 360, Camera System
- RV Air Conditioner 15,000 BTU
- Whelen Freedom IV LED Lightbar
- Firetech Brow Light
- M9V2 Warning Scene Lights
